Stihl MS 192 User Manual

MS 192 C
English
48

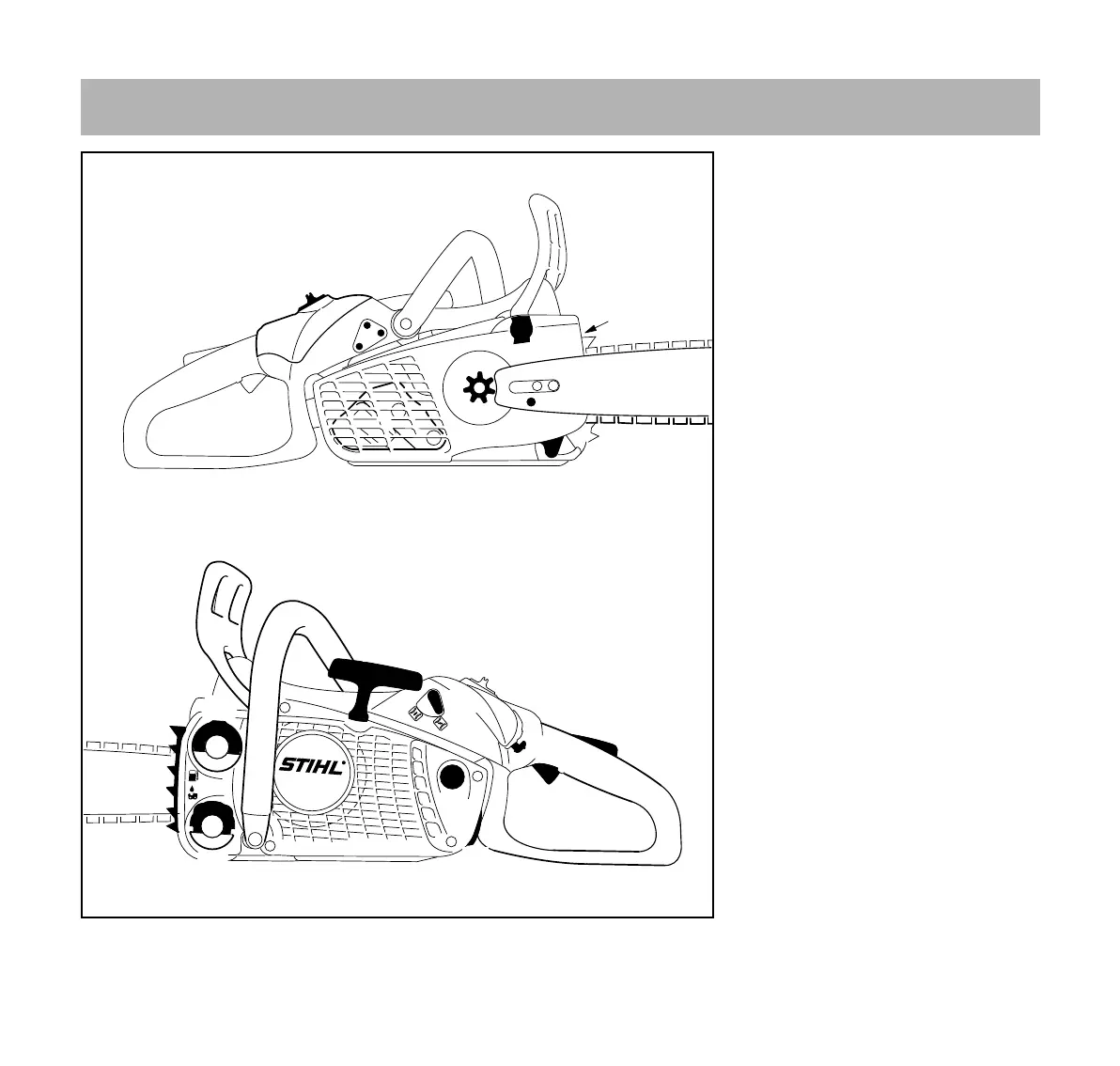

1 Carburetor Box Cover Twist Lock
2 Carburetor Box Cover
3 Carburetor Adjusting Screws
4 Muffler with Spark Arresting Screen
5 Chain Sprocket Cover
6 Chain Sprocket
7 Chain Brake
8 Chain Tensioner
9 Chain Catcher
10 Guide Bar
11 Oilomatic Saw Chain
12 Bumper Spike
13 Oil Filler Cap
14 Fuel Filler Cap
15 Front Hand Guard
16 Front Handle (Handlebar)
17 Starter Grip
18 Choke Lever
19 Fuel Pump
20 Spark Plug Boot
21 Throttle Trigger
22 Master Control Lever
23 Throttle Trigger Lockout
24 Rear Handle
25 Rear Hand Guard
Main Parts
13
14
22
19
151BA035 KN
23
21
24
25
2415
16
17
18
12
20
4
3
1
2
7
6
5
8
10
11
9
#

Stihl MS 192 Specifications

General

Engine Power	1.3 kW (1.8 hp)
Displacement	30.1 cm³
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Weight	3.3 kg
Guide Bar Length	30-35 cm (12-14 inches)
Fuel Capacity	0.27 L
Chain Pitch	3/8"
Chain Oil Capacity	0.22 L
