Stihl MS 192 User Manual

MS 192 C
English
51
Chain sprocket
To ensure compliance with the kickback
properties required in Section 5.11 of
ANSI B 175.1-2000, only use
replacement chains that, when used
with this specific powerhead, comply
with Section 5.11 of the ANSI standard
or are classed as "low kickback" chains
according to ANSI B 175.1-2000.
Please ask your STIHL dealer for the
latest recommendations on new
bar/chain combinations developed after
publication of this instruction manual.
Contact your STIHL dealer for
information regarding special
accessories that may be available for
your product.
Chain scabbard
If you use guide bars of different lengths
on the saw, the length of the chain
scabbard must be matched to the guide
bar to help reduce the risk of injury.
If the chain scabbard does not cover the
full length of the guide bar, a suitable
chain scabbard or a scabbard extension
is necessary.
Depending on the model, the scabbard
extension either comes standard with
the saw or is available as a special
accessory.

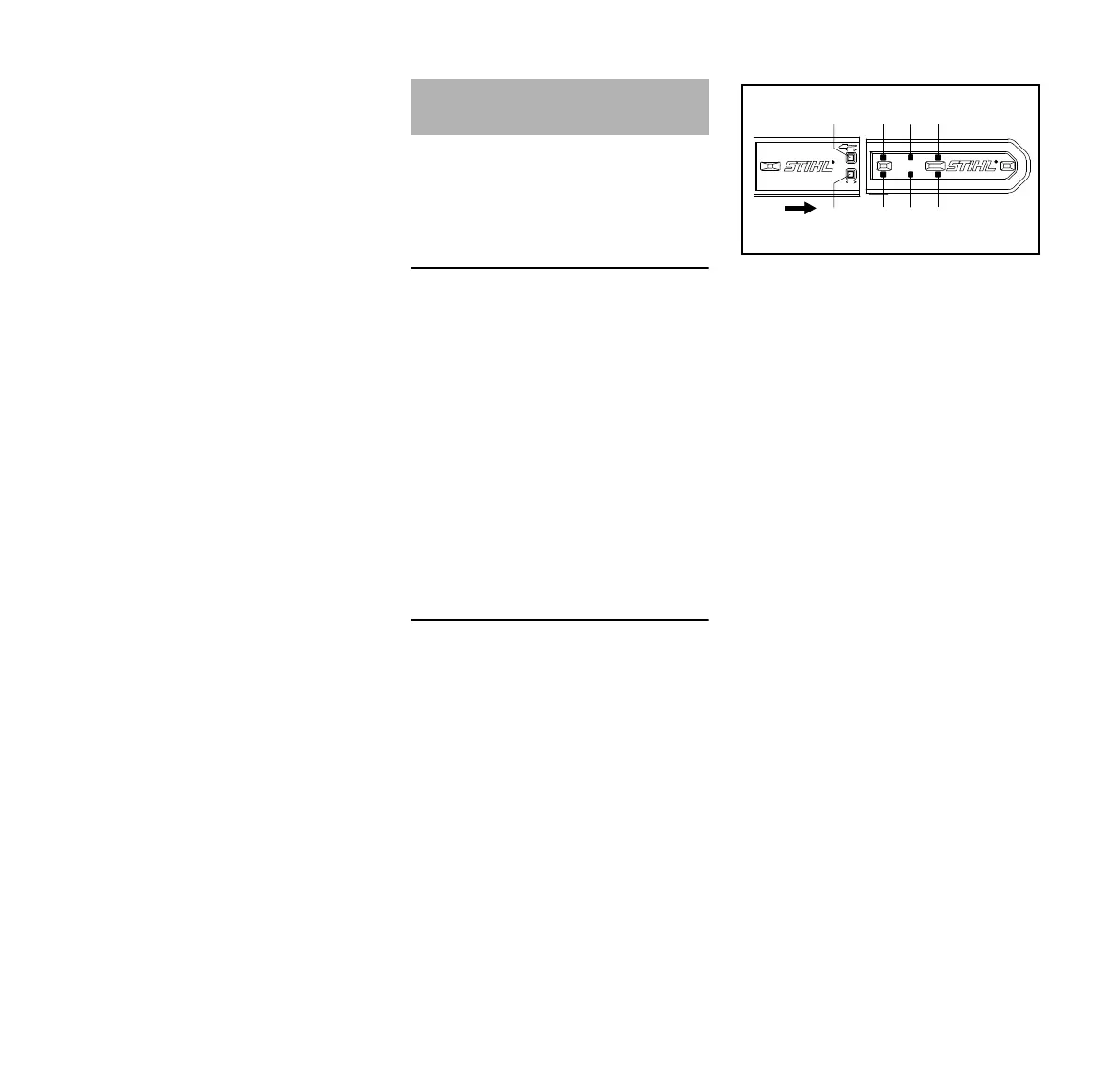

Fitting the chain scabbard extension
onto the scabbard
The scabbard extension has two square
cut-outs (1) that fit onto one of several
sets of locking tabs (2, 3, 4) located on
the scabbard. Each set of locking tabs is
marked with the lenght of the bar to
which they correspond, given in
centimeters on one tab and in inches on
the other.
N Determine the appropriate set of
tabs to be used based on the length
the bar
N Push the scabbard extension over
the scabbard until the cut-outs align
with desired set of tabs, and let
them lock together
Picco Micro Comfort 3 (63 PMC3)
Pitch: 3/8" P (9.32 mm)
Drive link gauge: 0.050 in. (1.3 mm)
6-tooth for 3/8" P (spur sprocket)
Special Accessories
432
432
1
1
001BA209 KN
cm
INCH

Stihl MS 192 Specifications

General

Engine Power	1.3 kW (1.8 hp)
Displacement	30.1 cm³
Sound Pressure Level	96 dB(A)
Sound Power Level	109 dB(A)
Weight	3.3 kg
Guide Bar Length	30-35 cm (12-14 inches)
Fuel Capacity	0.27 L
Chain Pitch	3/8"
Chain Oil Capacity	0.22 L
