Stihl MS 260 User Manual

27MS 260
English

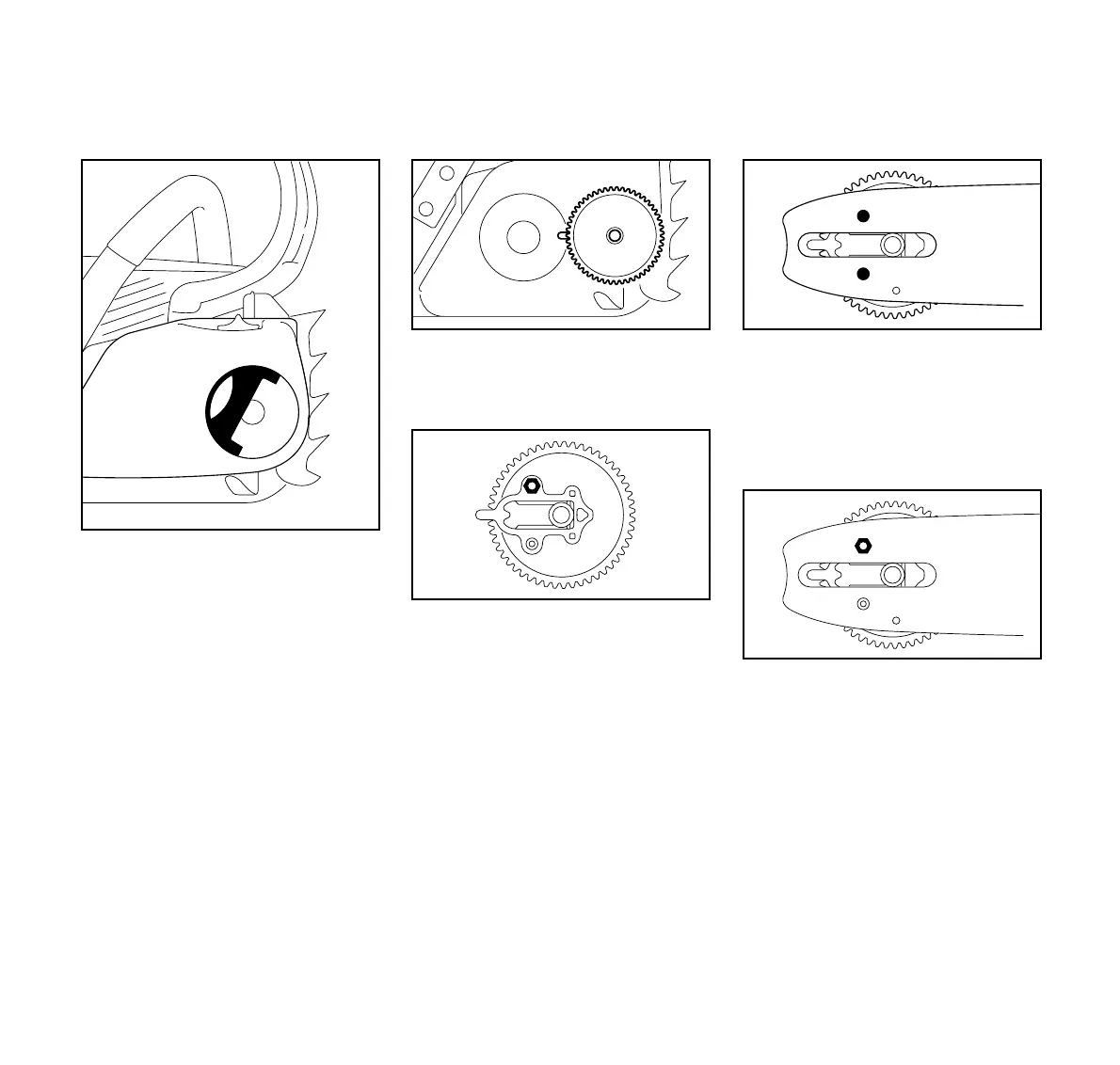

: Pull out the hinged clip (1) so that it
snaps into position.
: Turn the wingnut (2) counterclock-
wise until it hangs loose in the
sprocket cover (3).
: Remove the sprocket cover.
: Remove the tensioning gear (4)
and turn it over.
: Unscrew the nut (5).
: Position the tensioning gear (4)
against the guide bar (6) so that the
stud (7) projects through the upper
hole and the short guide peg (8)
locates in the lower hole.
: Screw the nut (5) on to the stud as
far as stop.
Mounting the Bar and Chain
(Quick chain tensioner)
2
1
133BA026 KN
3
4
133BA027 KN
5
133BA028 KN
4
8
7
6
133BA029 KN
5
133BA030 KN

Stihl MS 260 Specifications

General

Engine Power	2.6 kW
Power output	3.5 bhp
Chain pitch	3/8"
Bar Length	40 cm
Fuel Capacity	460 ml
Oil Capacity	200 ml
Fuel tank volume	460 ml
Oil tank volume	200 ml
