MS 260
Wear work gloves to protect your
hands from the sharp cutters.

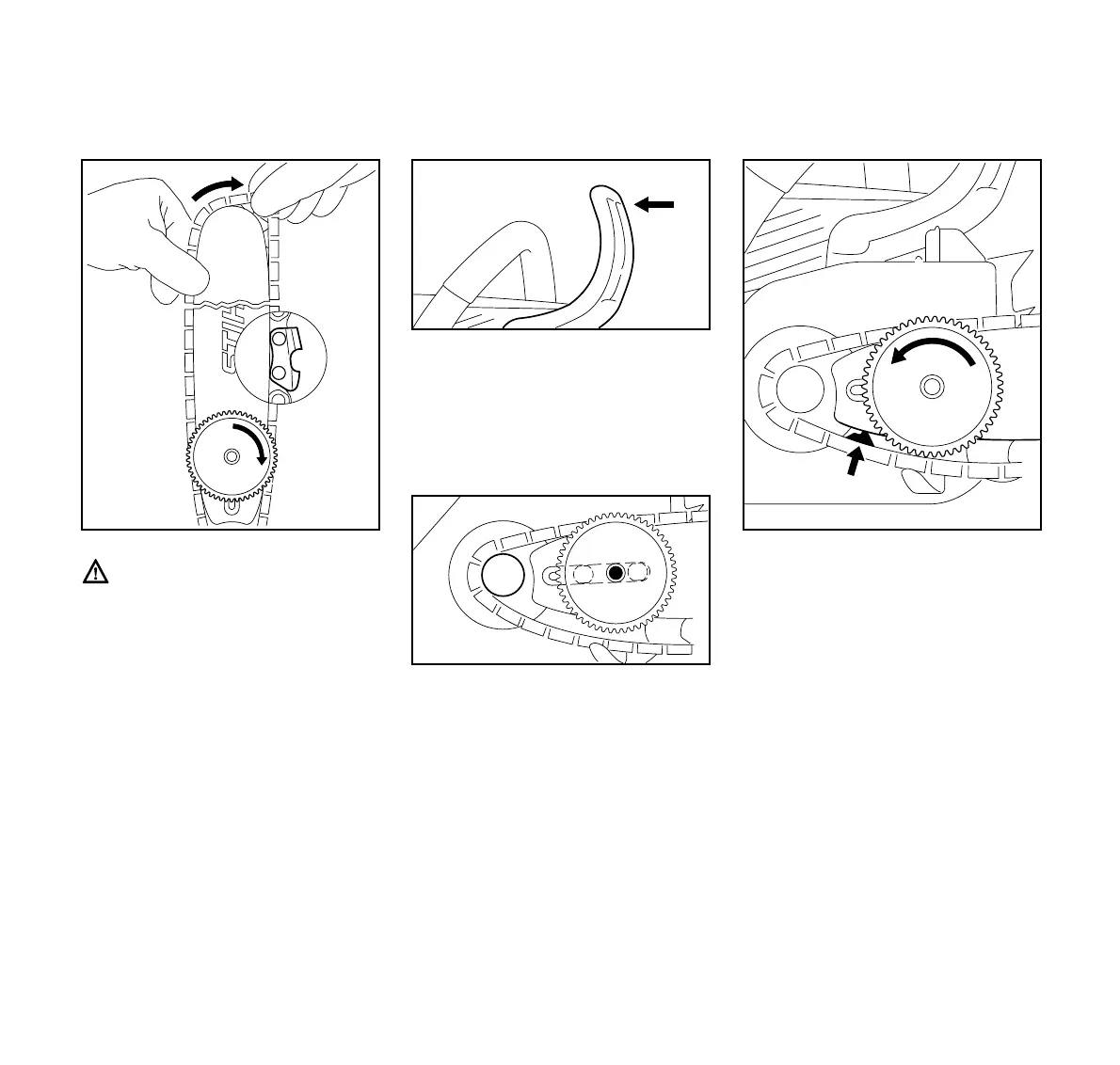

: Fit the chain – start at the bar nose.
Pay attention to the position of the
tensioning gear and the cutting
edges.
: Turn the tensioning gear (4)
clockwise as far as stop.
: Disengage the chain brake: Pull
hand guard (9) towards the front
handle.
: Turn the guide bar so that the
tensioning gear is facing you.
: Fit the chain over the sprocket (10).
The long collar screw (11) engages
the hole in the tensioning gear. The
heads of the two short collar screws
locate in the guide bar slot.
: Make sure the drive link tangs
engage the bar groove (see arrow)
and then rotate tensioning gear
counterclockwise as far as stop.
4
133BA031 KN
133BA032 KN
9
11
10
133BA033 KN
133BA034 KN
