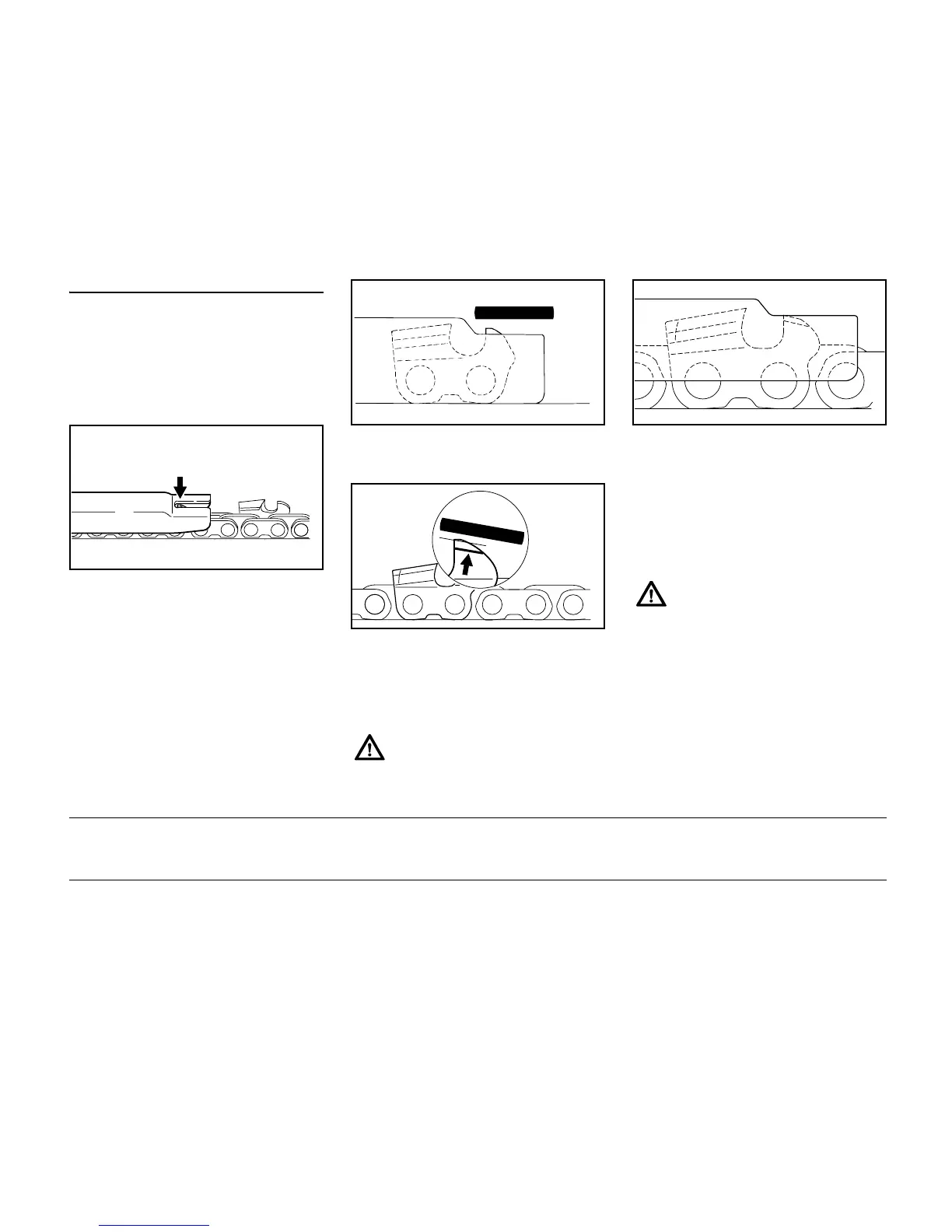

Lowering depth gauges
The depth gauge setting is reduced
when the chain is sharpened.
N Use a filing gauge to check the
setting every time you sharpen the
chain.
N Place a filing gauge (1) that
matches the chain pitch on the
chain – if the depth gauge projects
from the filing gauge, the depth
gauge has to be lowered.
N File down the depth gauge until it is
level with the filing gauge.
N File the top of the depth gauge
parallel to the stamped service
marking (see arrow) – but do not
lower the highest point of the depth
gauge in this process.
N Place the filing gauge on the chain –
the highest point of the depth gauge
must be level with the filing gauge.
RSC3, RMC3, PMC3, PMMC3
The upper part of the humped drive link
(with service marking) is lowered along
with the depth gauge.
N After sharpening, clean the chain
thoroughly, remove filings or
grinding dust – lubricate the chain
thoroughly.
N Before a long out-of-service period,
clean the chain and store it in a well-
oiled condition.
689BA047 KN
1
The kickback tendency of the saw
is increased if the depth gauges
are too low.
689BA051 KN
689BA044 KN
The other parts of the triple-
humped tie strap and humped
drive link must not be filed since
this may increase the kickback
tendency of the saw.
689BA052 KN
Sharpening Tools (special accessories)
Chain pitch Round file ^ Round file File holder Filing gauge Flat file Sharpening kit
1)
inch (mm) mm (inch) Part No. Part No. Part No. Part No. Part No.
1
/4 (6,35) 4,0 (
5
/32) 5605 772 4006 5605 750 4327 1110 893 4000 0814 252 3356 5605 007 1027
3
/8 P (9,32) 4,0 (
5
/32) 5605 772 4006 5605 750 4327 1110 893 4000 0814 252 3356 5605 007 1027
0.325 (8,25) 4,8 (
3
/16) 5605 772 4806 5605 750 4328 1110 893 4000 0814 252 3356 5605 007 1028
3
/8 (9,32) 5,2 (
13
/64) 5605 772 5206 5605 750 4329 1110 893 4000 0814 252 3356 5605 007 1029
0.404 (10,26) 5,5 (
7
/32) 5605 772 5506 5605 750 4330 1106 893 4000 0814 252 3356 5605 007 1030
1)
consisting of file holder with round file, flat file and filing gauge

Stihl MS 270 Specifications

General

Engine Power	2.6 kW
Displacement	50.2 cc
Weight	5.6 kg
Chain pitch	0.325 inches
Fuel tank volume	0.47 l
Chain Oil Capacity	240 cc
Oil tank volume	240 cc
