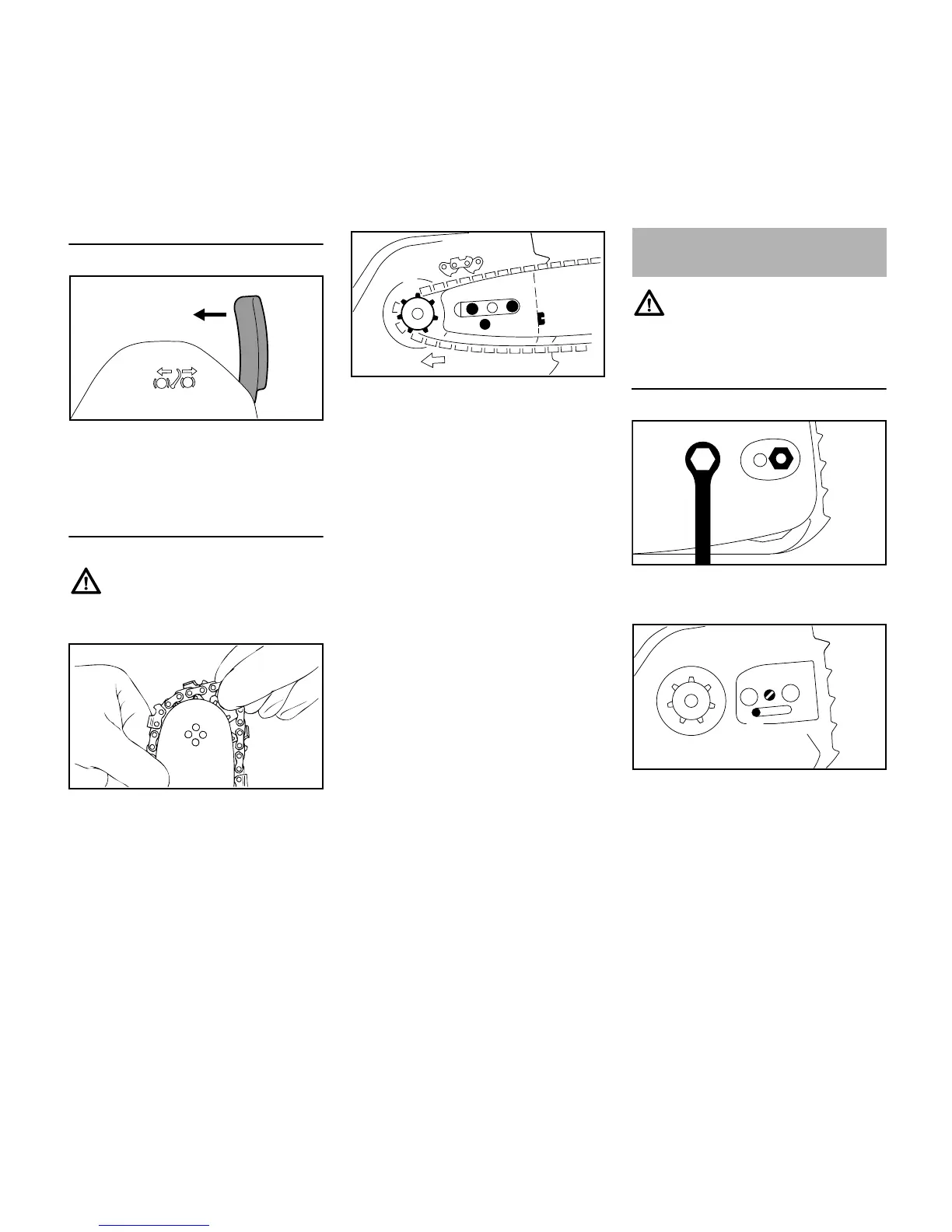

Disengaging the chain brake.
N Pull the hand guard towards the
front handle until there is an audible
click – the chain brake is
disengaged.
Fitting the chain
Wear work gloves to protect your hands
from the sharp cutters.
N Fit the chain – start at the bar nose.
N Turn the guide bar so that the chain
is positioned as shown in the
pictogram (1).
N Fit the guide bar over the studs (2)
and engage the tensioning nut in the
hole (3) – place the chain over the
sprocket (4) at the same time.
N Turn the tensioning screw (5)
clockwise until there is very little
chain sag on the underside of the
bar – and the drive link tangs are
engaged in the bar groove.
N Refit the sprocket cover and screw
on the nut fingertight.
N The arrow (6) indicates the direction
of chain rotation.
N Go to chapter on "Tensioning the
Saw Chain"
Do not connect the power tool to the wall
outlet yet.
Removing the chain sprocket cover
N Unscrew the nut and remove the
chain sprocket cover.
N Turn the screw (1)
counterclockwise until the
tensioning nut (2) butts against the
left end of the housing slot.
