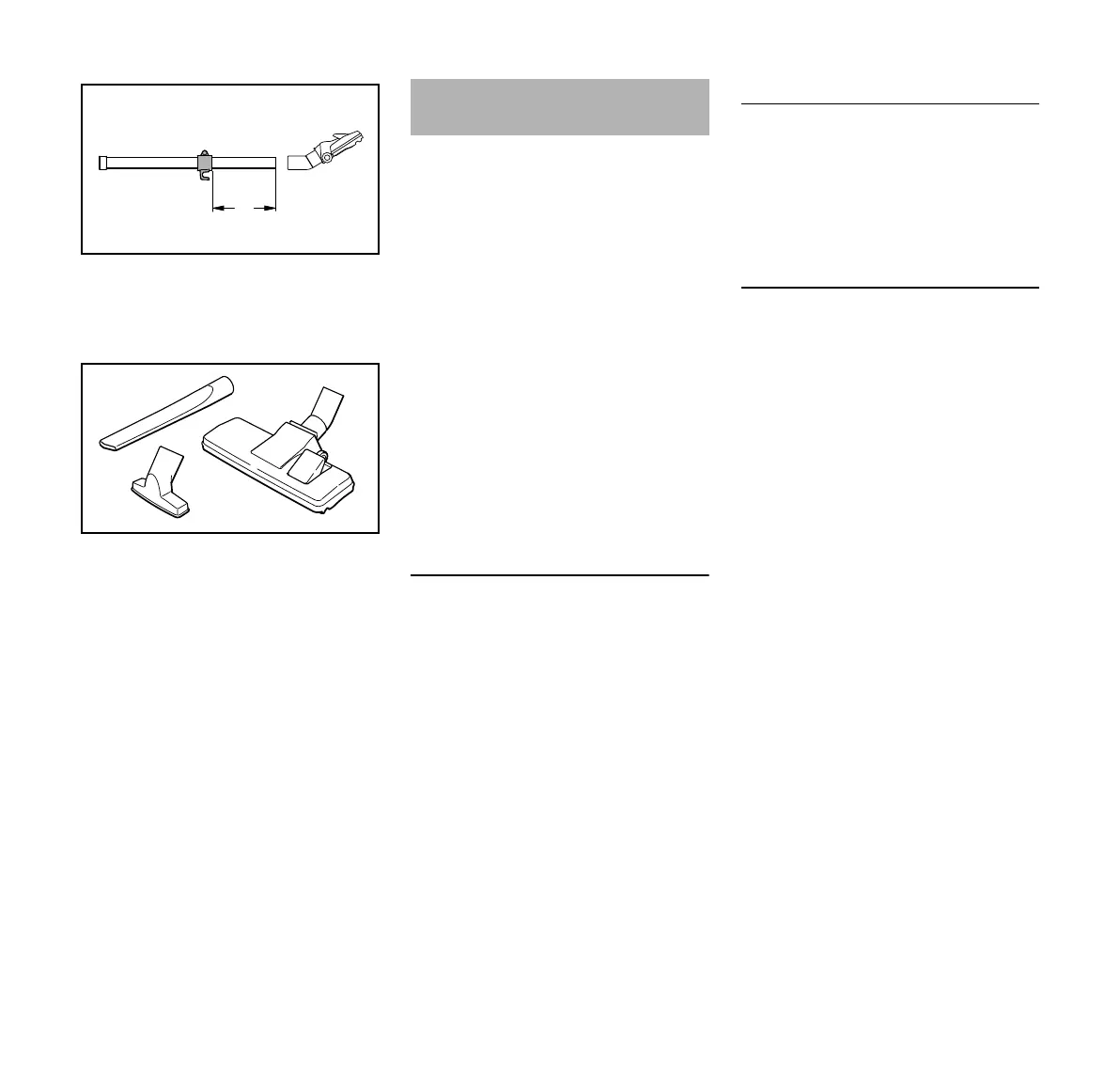

N Mount suction tube holder at a
distance (A) of approx. 8 inches
(20 cm) from the bottom edge of the
extension tube
N Depending on the intended use of
the vacuum, fit the crevice tool (5),
all-purpose tool (6) or floor tool (7)
onto the suction tube.
The voltage and frequency of your
power supply and the voltage and
frequency specified on the unit must be
the same.
The connection to the power supply
must be protected by a fuse or a circuit
breaker with a minimum rating in
accordance with the specifications – see
"Specifications."
The power tool must be connected to the
power supply via a Ground Fault Circuit
Interrupter (GFCI). Receptacles are
available having built-in GFCI protection
and may be used for this measure of
safety.
The electrical power supply connection
must comply with all applicable
standards and regulations.
Extension Cords
Make sure your electrical cord set is in
good condition and suitable for outdoor
use. When using an extension cord, be
sure to use one heavy enough to carry
the current your product will draw. An
undersized extension cord may cause a
drop in line voltage resulting in loss of
power and overheating. The table below
shows the correct size (AWG) to use for
your machine (Cord types SJW or
SJTW) depending on cord length and
nameplate ampere rating. If in doubt,
use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
Appropriate extension cords are
available in special stores for electrical
equipment or from your STIHL dealer.
Connection to the power supply socket
Before connection to the power supply,
check that the machine is switched off –
see "Switching off the machine"
N Plug the power cord or extension
cord into a properly installed outlet
Connecting to Power Supply
Cord length (ft) Wire gage (AWG)
50 16
100 14
150 12
