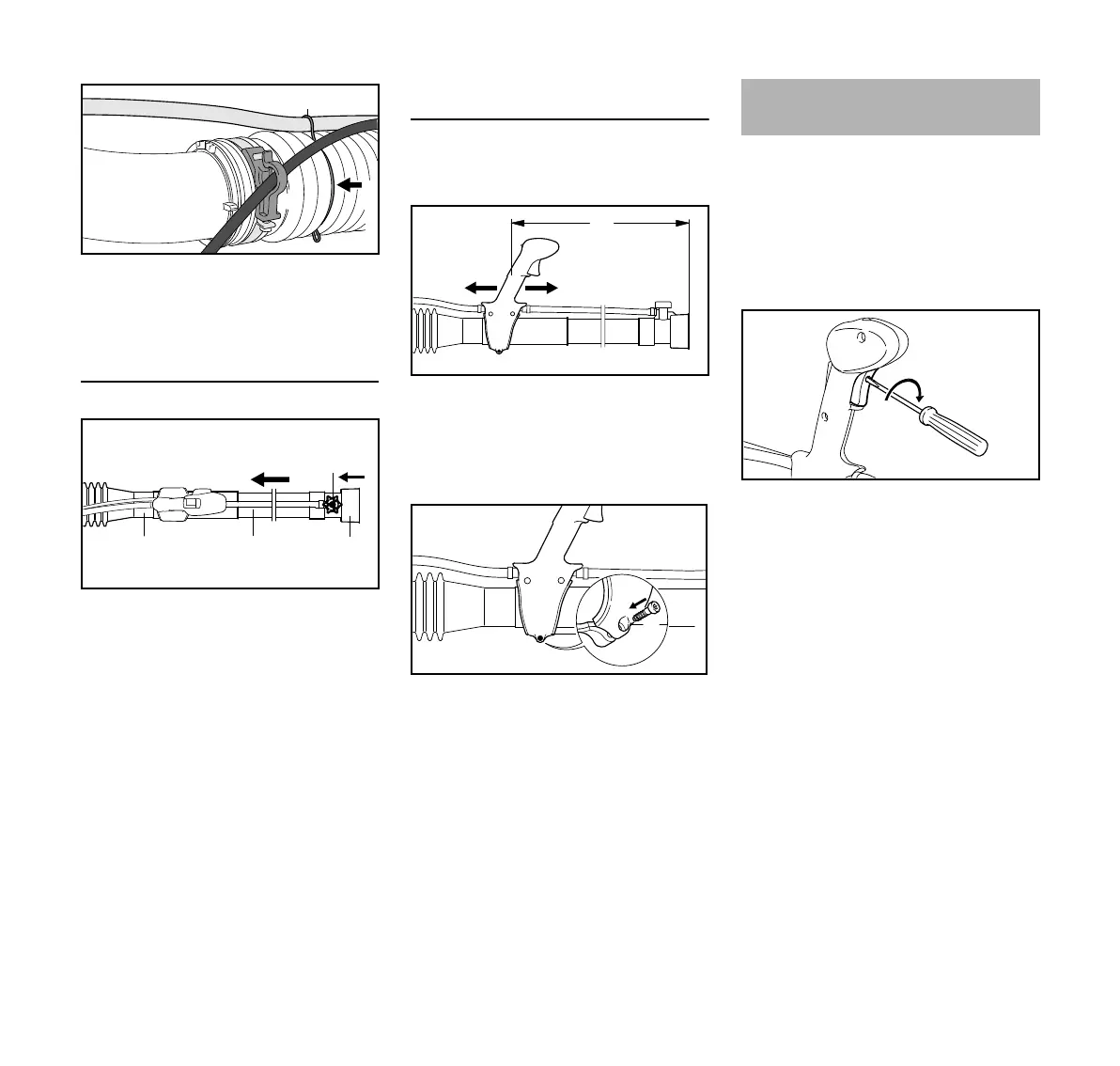

N Attach throttle cable to retainer (4).
N Secure hose with retainer (5) to
third pleat (arrow) in pleated hose.
Mounting the Blower Tube and Nozzle
N Push the blower tube (1) into the
stub of pleated hose (2) as far as
the stop.
N Push the nozzle (3) onto blower
tube as far as stop – metering
knob (4) must be in line with the
control handle.
Adjusting and Securing the Control
Handle
N Put the machine on your back and
adjust the harness – see "Harness".
N Slide the control handle (1) along
the tube to the most comfortable
position – distance between nozzle
outlet (2) and the control handle (1)
must be at least 500 mm (20 in) (a).
N Secure the hose clamp (1) with the
screw (3).
It may be necessary to correct the
adjustment of the throttle cable after
assembling the machine or after a
prolonged period of operation.
Adjust the throttle cable only when the
unit is completely and properly
assembled.
N Set throttle trigger to the full throttle
position – as far as stop.
N Carefully rotate the screw in the
throttle trigger in the direction of the
arrow until you feel initial resistance.
Then rotate it another full turn.
