Still RX70-20 - Actuating the Vertical Rocker Switch for the Drive Direction, Joystick 4 Plus Version; Actuating the Drive Direction Switch, Fingertip Version

4 Operation
Driving
1
6210_003-101
A
B

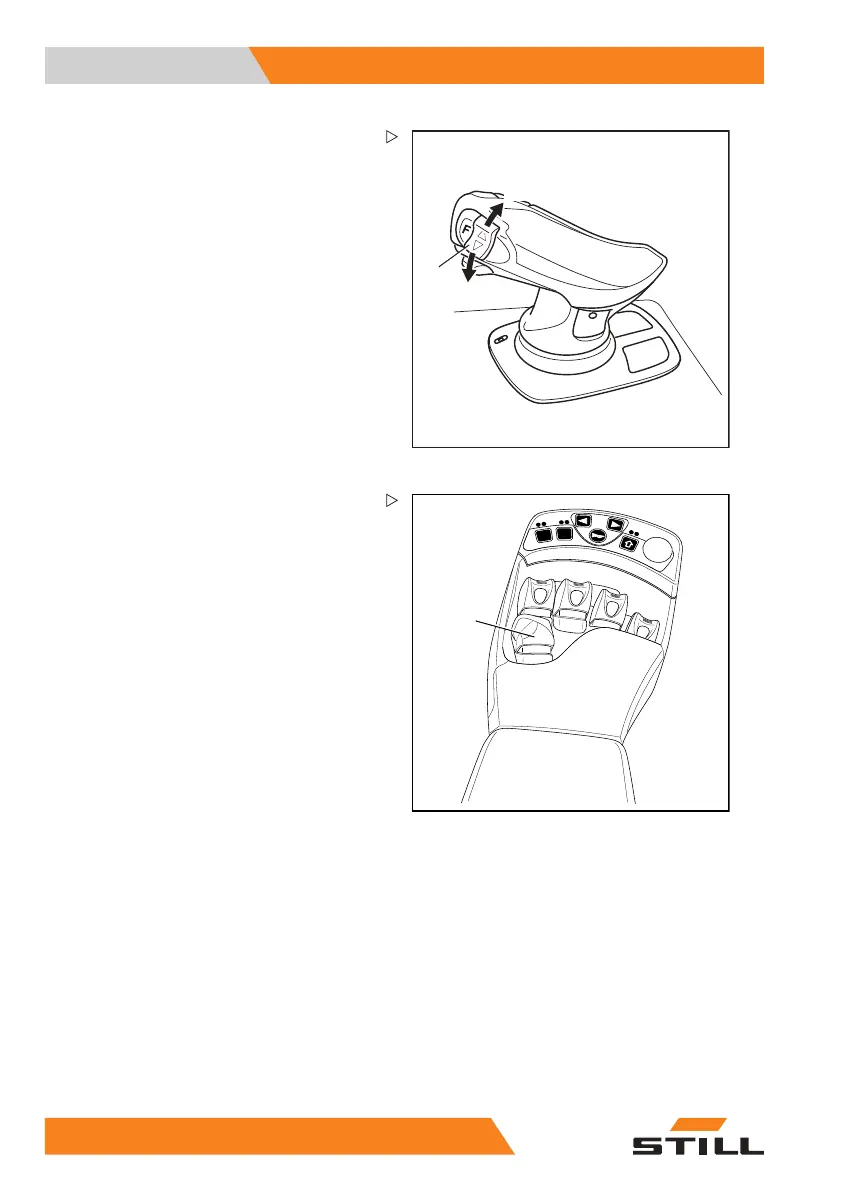

Actuating the vertical rocker
switch for the "drive direction", joy-
stick 4Plus version
– For the "forwards" drive direction, push
the vertical rocker button for the "drive
direction"(1) upwards (A).
– For the "reverse" drive direction, push
the vertical rocker button for the "drive
direction"(1) downwards (B).
F1
F1
F2
F2
7325_003-031
1
Actuating the drive direction switch,
fingertip version
– For the "forwards" drive direction, push the
drive direction switch (1) forwards
– For the "backwards" drive direction, push
the drive direction switch backwards
