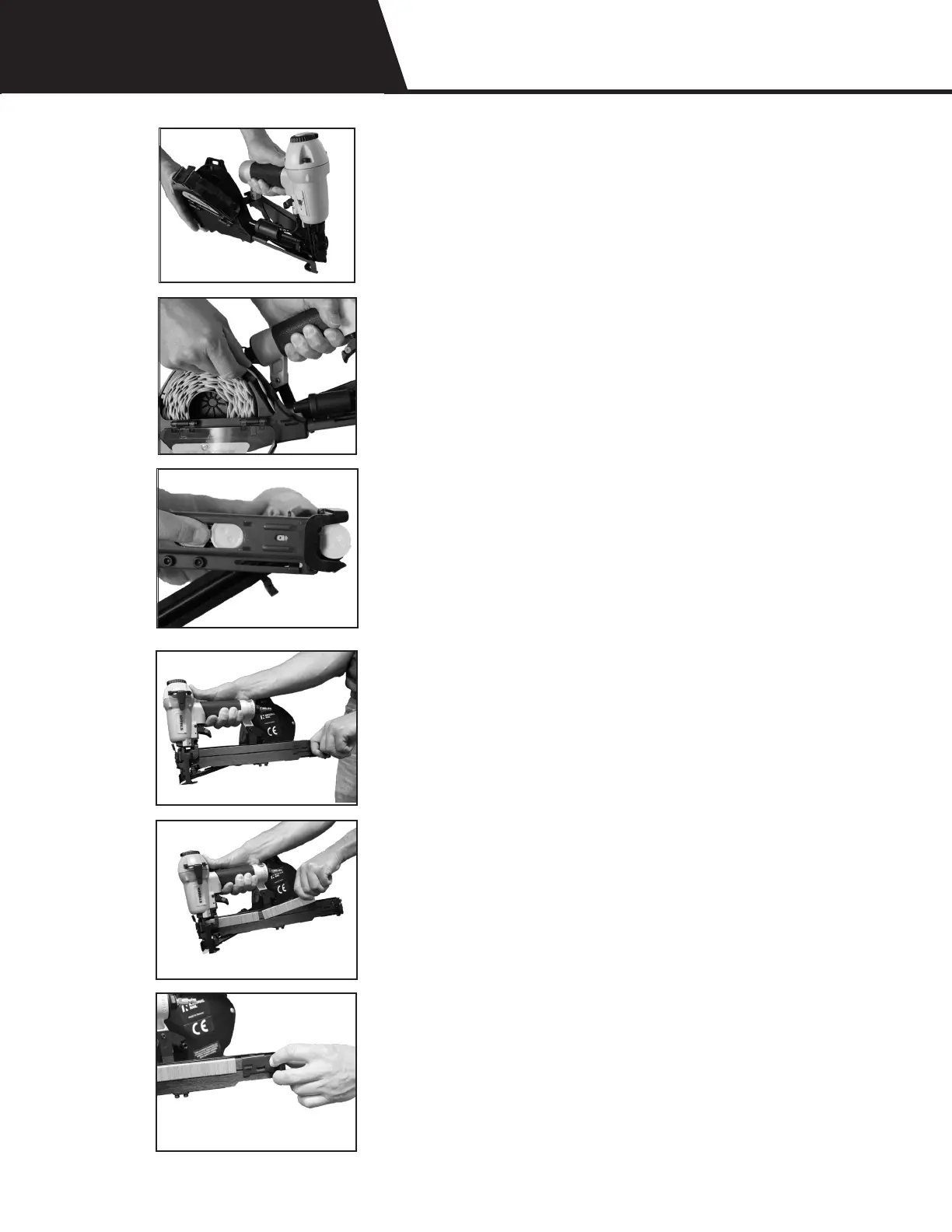

LOADING THE TOOL
• Disconnect air. Open the Magazine Cover.
• Place cap reel in the Magazine - make
sure the front end of the cap coil is placed
over the cap guide area of the Magazine.
Insert lead cap into the Feed Chute. Close
the Magazine Cover.
• Slide caps along the Feed Chute with
fingers until they engage the Cap Feeder.
Pull the Cap Feeder back and release to
advance the caps until the first cap is under
the Nose of the tool.
• Pull back the Staple Follower until the
Latch catches.
• Place staples in the Staple Track.
• Release the Catch Button. Plug into the air
source. The tool is ready to use!
5
