Installation (Cont.)
Fig. 4
Fig. 5
Fig. 3
Upside-down installation
If mounting the unit upside down on a wall, drill holes 317mm apart and use the hanging
slots at the opposite side of the rear panel (which are otherwise used for the spacers,
see Fig. 4). Then affix the supplied printed control panel over the existing panel.

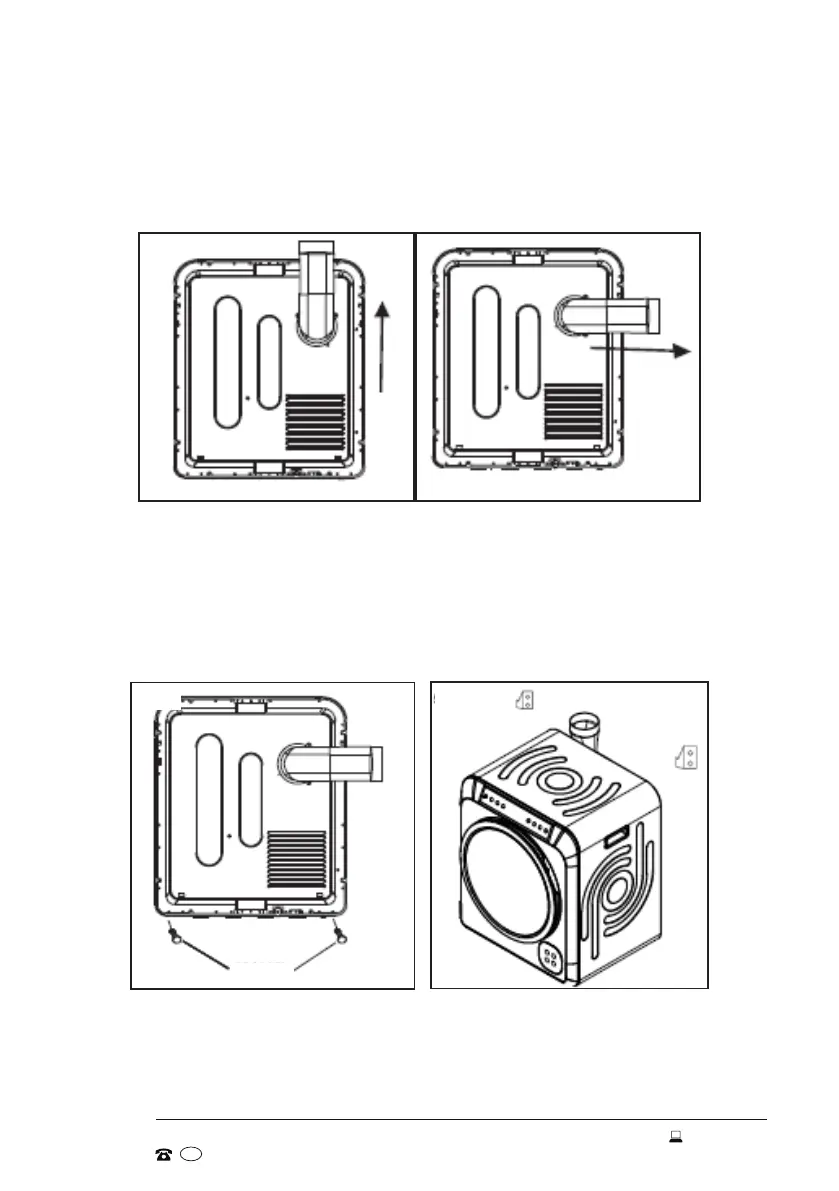

Attaching the exhaust vent and spacers
1. The exhaust vent can be installed to point upwards or sideways (Fig. 3). Use the small
screws (supplied in a bag inside the vent) to affix it to the back of the dryer.
Spacers
2. Attach the two spacers to the back of the unit. Insert them into the extra hanging
slots at the opposite side (Fig. 4) and turn 90 degrees to secure.
3. With assistance, mount the clothes dryer onto the wall bracket. To do so, lift the
dryer and align the slots at the back of the machine with the wall brackets. Then
carefully hang the dryer onto the brackets (Fig. 5). Make sure the hooks of the
brackets are firmly inserted into the slots.
