Operating instructions
CASABOX | CAMABOX | TENDABOX | SELECT
Operating instructions
CASABOX | CAMABOX | TENDABOX | SELECT
Jointed arms

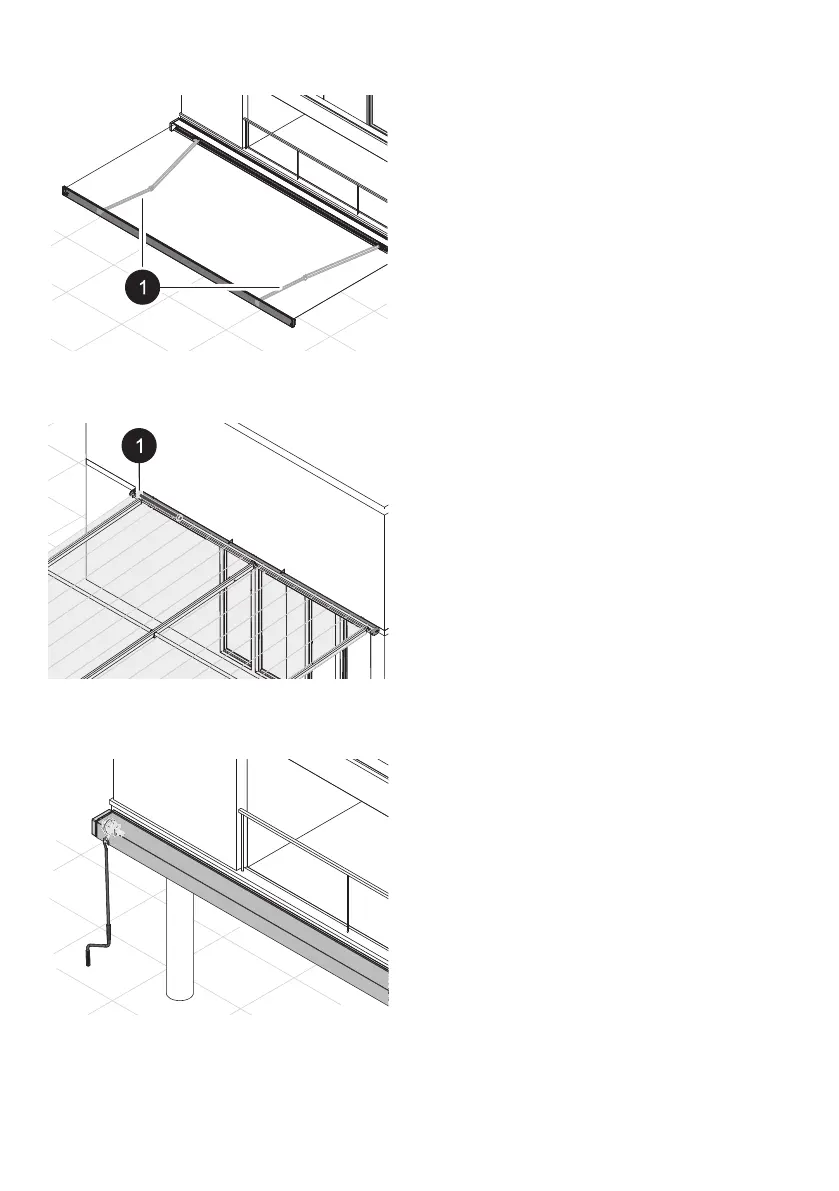

The jointed arms (fig. 8/1) extend the drop-out
profile with the awning fabric panel and protect
the fabric. The arms fold and unfold themselves
at the joints when extending or retracting.
Drive system
The electric motor (fig. 9/1) is a tubular motor and
is located in the fabric shaft, which it drives. The
drive is controlled using the remote control.
Gear and manual crank
Fig. 10: Gear and manual crank
The gear is located in the fabric shaft of the aw-
ning. Using a manual crank, the gear drives the
fabric shaft and thereby moves the awning’s fab-
ric panel. The manual crank is removable.
