Operating instructions
CASABOX | CAMABOX | TENDABOX | SELECT
Operating instructions
CASABOX | CAMABOX | TENDABOX | SELECT
3�4 Optional operating modes
Operating the drop-down valance (optional) with the manual crank

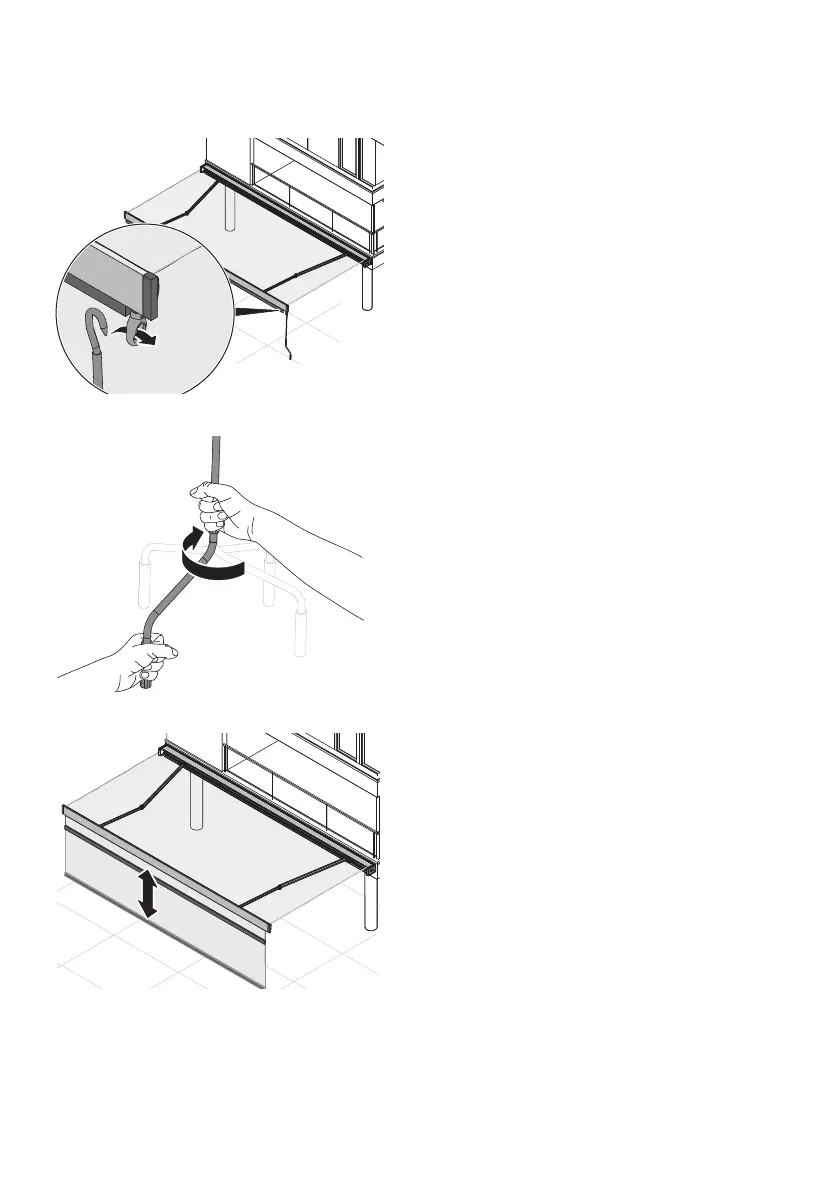

Fig. 22: Insert the manual crank
The optional drop-down valance can be stepless-
ly operated manually via the gear with the manu-
al crank.
1. Insert the manual crank in the crank slot for
the valance (fig. 22).
2. Ensure that the lowering range of the valance
is clear.
Fig. 23: Move the valance
3. Turn the manual crank to the left to extend the
valance.
ÎThe valance extends.
Fig. 24: Move the valance
4. Turn the manual crank to the right to retract
the valance.
ÎThe valance retracts.
5. Remove the manual crank.
