Stobag CAMABOX BX4000 - Components

www.stobag.com
18
Operating instructions
CASABOX | CAMABOX | TENDABOX | SELECT
2�2 Components
Box

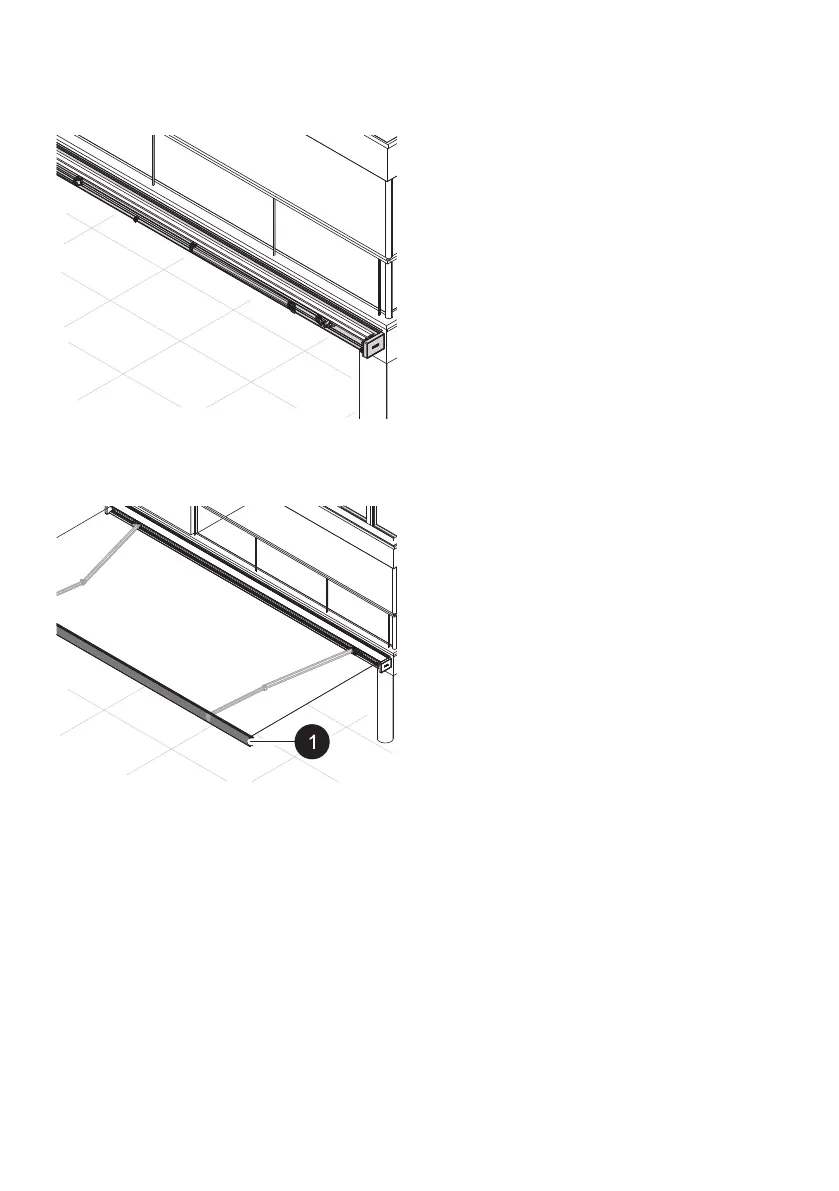

Fig. 6: Box
The awning box (fig. 6) consists of a pow-
der-coated aluminum profile. The box contains
mechanical and electrical components as well as
the fabric panel on the fabric shaft. The box is in-
stalled on the base surface with mounting brack-
ets. In the retracted state, the fabric panel and
mechanical parts are completely enclosed in the
box and thus protected against environmental
impacts.
Drop-out profile
Fig. 7: Drop-out profile
The awning drop-out profile (fig. 7/1) is installed
on the jointed arm ends. The fabric panel start
and optional valance are fastened to the drop-
out profile. In a closed state, the drop-out pro-
file closes the box to create asealed box and
thus protects the fabric panel against weather
impacts.
