Incline adjustment via manual crank

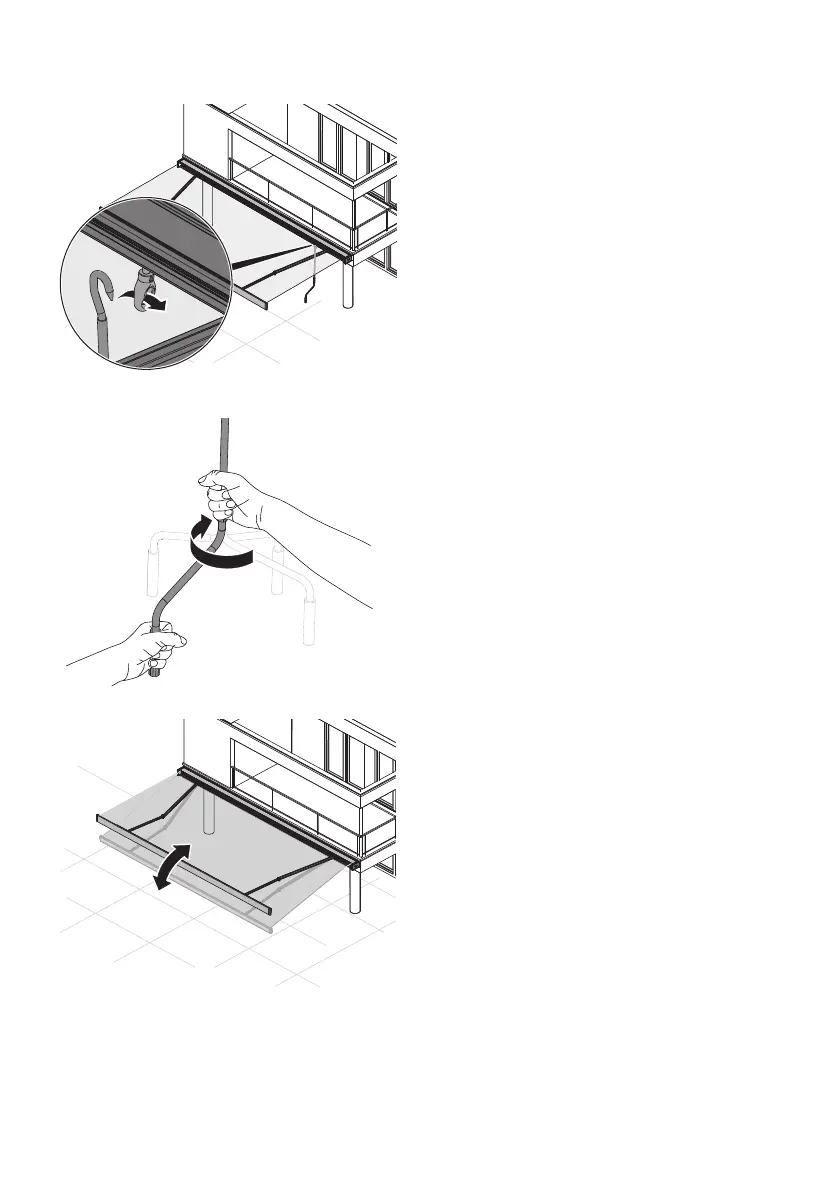

Fig. 19: Insert the manual crank
To adjust the incline of the awning, proceed as
follows:
1. Extend the awning.
2. Insert the manual crank in the incline adjust-
ment slot (fig. 19).
Fig. 20: Adjust the incline
3. Ensure that the lowering range of the awning
is clear.
4. Turn the manual crank to the left to lower the
awning.
ÎThe awning lowers.
Fig. 21: Adjust the incline
5. Turn the manual crank to the right to raise the
awning.
ÎThe awning raises.
6. Remove the manual crank.
