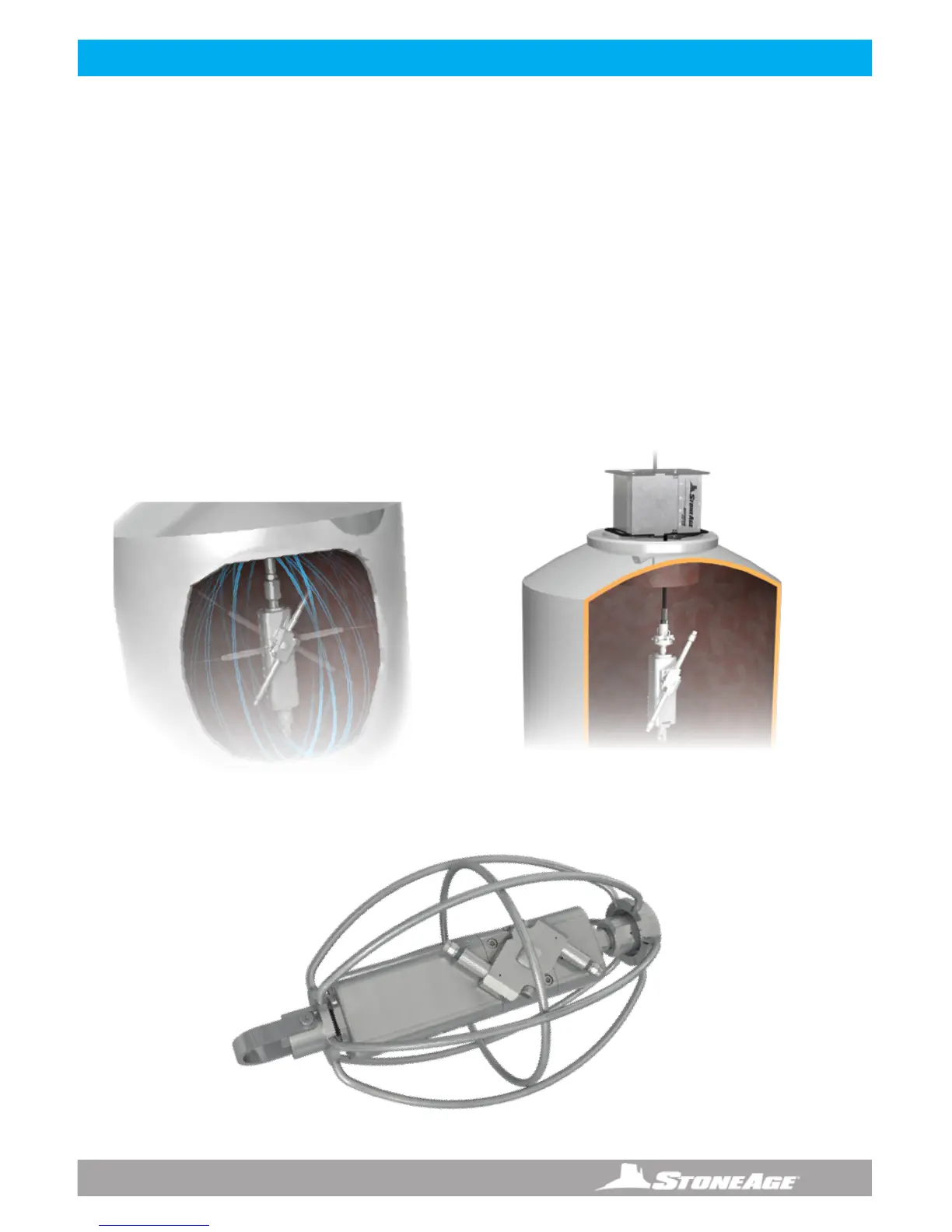

DESCRIPTION OF EQUIPMENT AND INTENDED USE (TR-130):
The Torus TR-130 3D Tool is designed for cleaning tanks, vessels, autoclaves, ducts and reactor
interiors. The tool is capable of working pressures up to 22,000 psi (1500 bar) and ow rates of 10 to 80
gpm. The wide range of ow rates is accommodated by the use of four different manifolds: High Flow
(R30), Medium Flow (R50), Low Flow (R90) and Extra Low Flow (R150). A maintenance-free magnetic
brake is used to control rotation speed. Note that rotation speed may increase as the tool warms
up to operating temperature. The complete Torus cleaning cycle varies from about 4 to 30 minutes
of operating time depending on rotation speed, which is determined by pressure, ow rate, nozzle
diameter, manifold choice and brake setting. A complete cleaning cycle is 92 revolutions of the body.
The HP manifold revolves 2.36 times for each body revolution. When used in large vessels, extension
arms up to 36 inches long can be used to reduce the jet standoff distance. The Torus can be hung from
the high pressure water hose or by the optional pulling ring available for the tool. It is recommended to
blow out all internal water passages (nozzles, weep holes, inlet) with compressed air after each use.
TORUS TR-130 DESCRIPTION AND INTENDED USE
