TORUS TR-130 ACCESSORIES

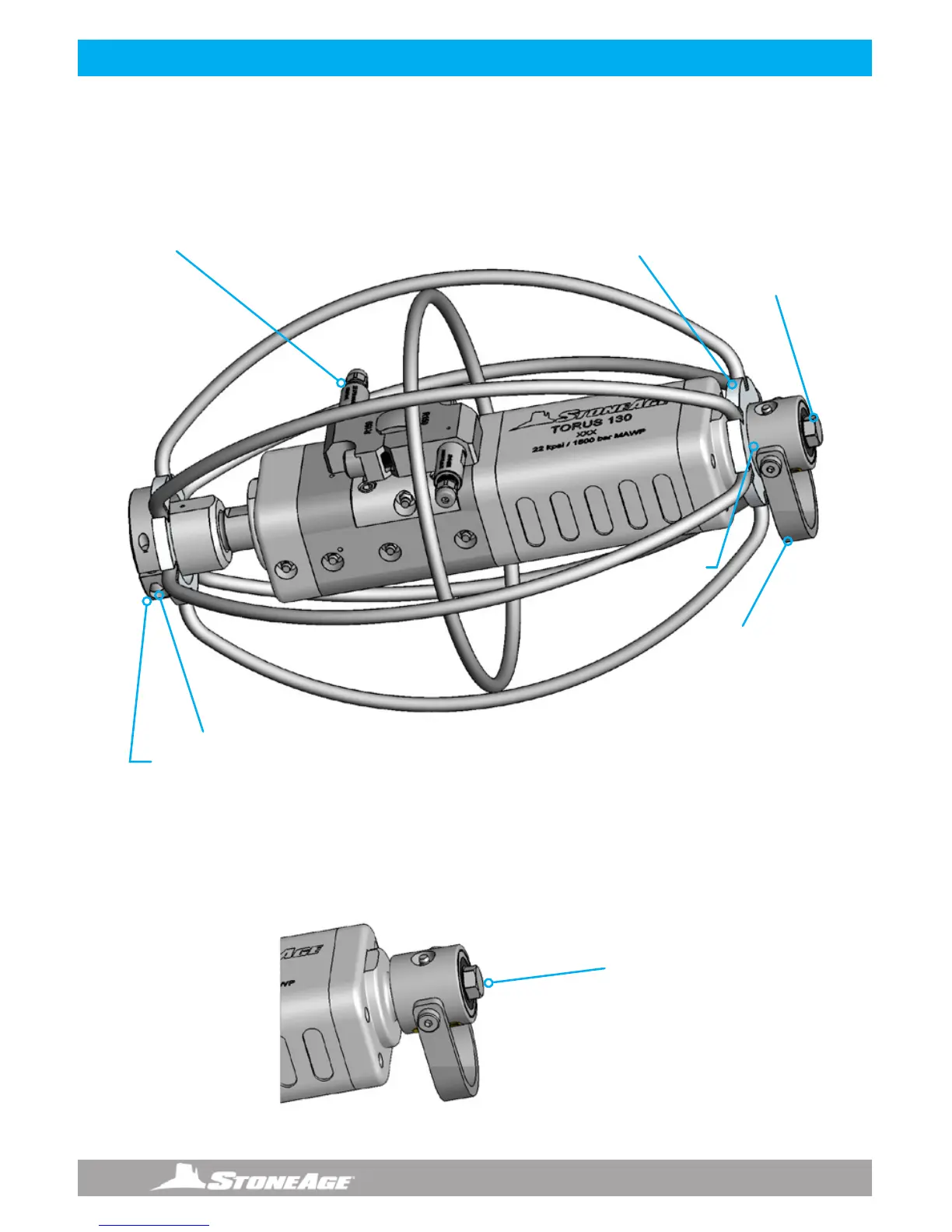

TR130 408-SS CAGE INSTALLATION:
HC 090 PULLING RING INSTALLATION:
Note that the short 2”
nipples must be installed
when using the Torus in
the cage
It may be necessary to remove the free half of the
Clamp Collar on the cage to insert the Torus
Reference (2) GS 331-04-24 (Socket Head Cap Screw 5/16-24 UNF x 1.0 Long)
Insure that the end plate of the cage is installed as
shown over the Pulling Ring Housing with about a
1/8” gap just behind the pulling bail; otherwise the
Torus will not rotate correctly during operation.
Note that the Pulling
Ring must be removed
from the Torus prior to
installing the Torus into
the Cage.
Apply Blue Loctite
242 (StoneAge part
number GP 180) to the
pulling ring bolt prior
to installation. Torque
bolt to 50-60 ft-lbs.
Pulling Ring
Housing
Apply Blue Loctite
®
242
(StoneAge part number GP 180)
to the pulling ring bolt prior to installation.
Torque bolt to 50-60 ft-lbs.
