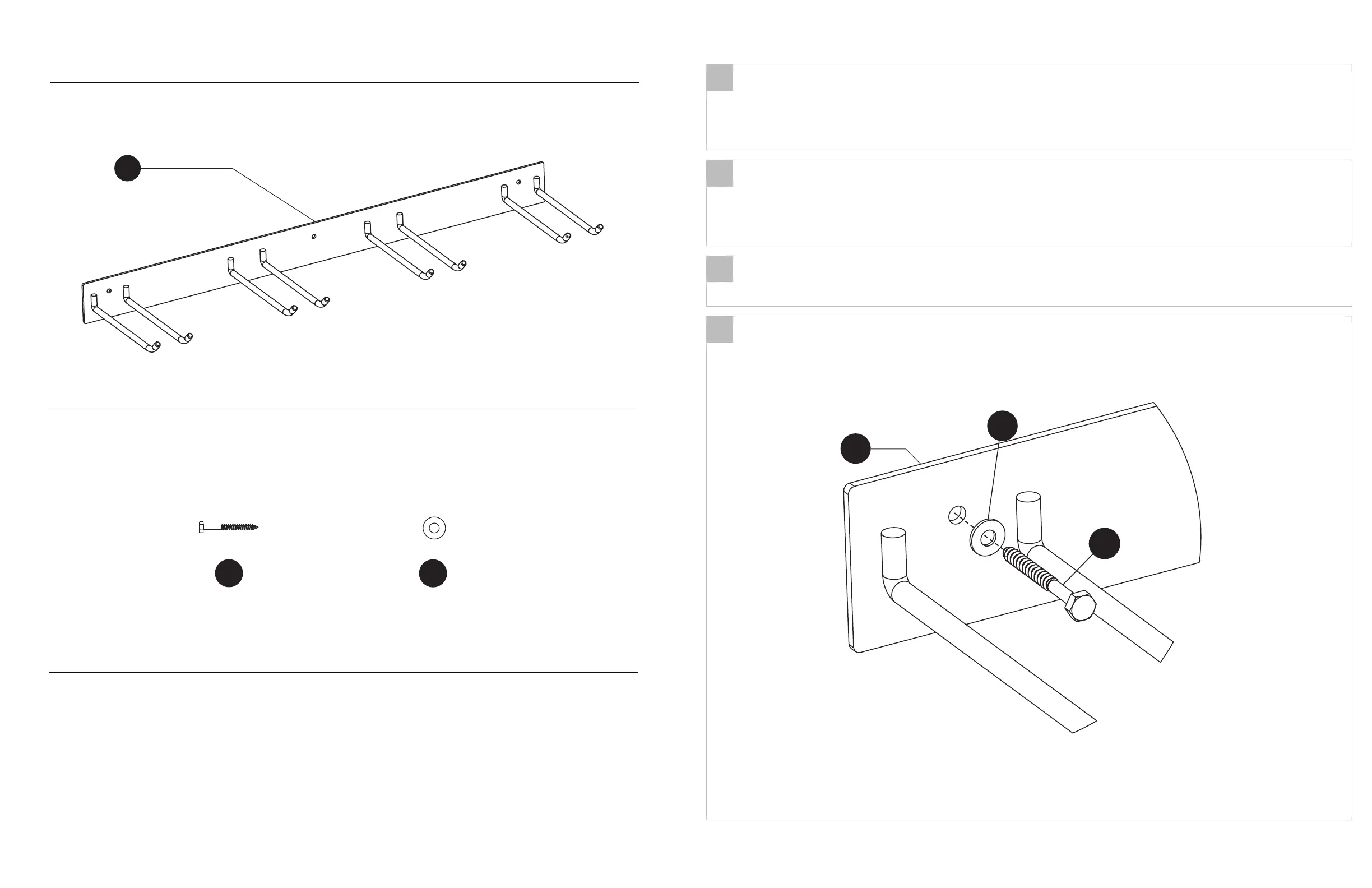

BLAT Rack
Qty: 1
INCLUDED HARDWARE:
Drill/Driver
Drill bits
Socket/Driver
Level
Tape measure
Pencil
Stud finder
325 lbs. max
80 lbs. max per hook
*weight must be evenly distributed
RECOMMENDED TOOLS: WEIGHT LIMITS:
A
Machine Washers
Qty: 3
C
INSTALLATION
Wall Screws
Qty: 3
B
NOTE: The BLAT rack must be mounted to studs to achieve the advertised weight limit
Find three adjacent studs where you want to mount the product. The rack’s mounting
holes are intended to align with standard 16” spaced wall studs. Use a stud finder to
determine the exact location of each stud and lightly mark them with a pencil.
1
Hold the rack up to the wall where you want to mount it and align the mounting holes
with the stud locations. Use a level to ensure the rack is horizontal with the floor and
mark all mounting hole locations with a pencil.
2
Use a 3/32 inch (2.5mm) drill bit to drill pilot holes into the previously marked mounting
hole locations.
A Machine Washer (C) should be used between the BLAT Rack (A) and the Wall Screw (B) as
shown in the figure below. Insert the Wall Screws (B) with Machine Washers (C) into the pilot
holes to mount the rack.
3
4
A
C
B
