6
1
2 3
4
5
6
9 10 12
13
14 15
16
11
7
8
17
18

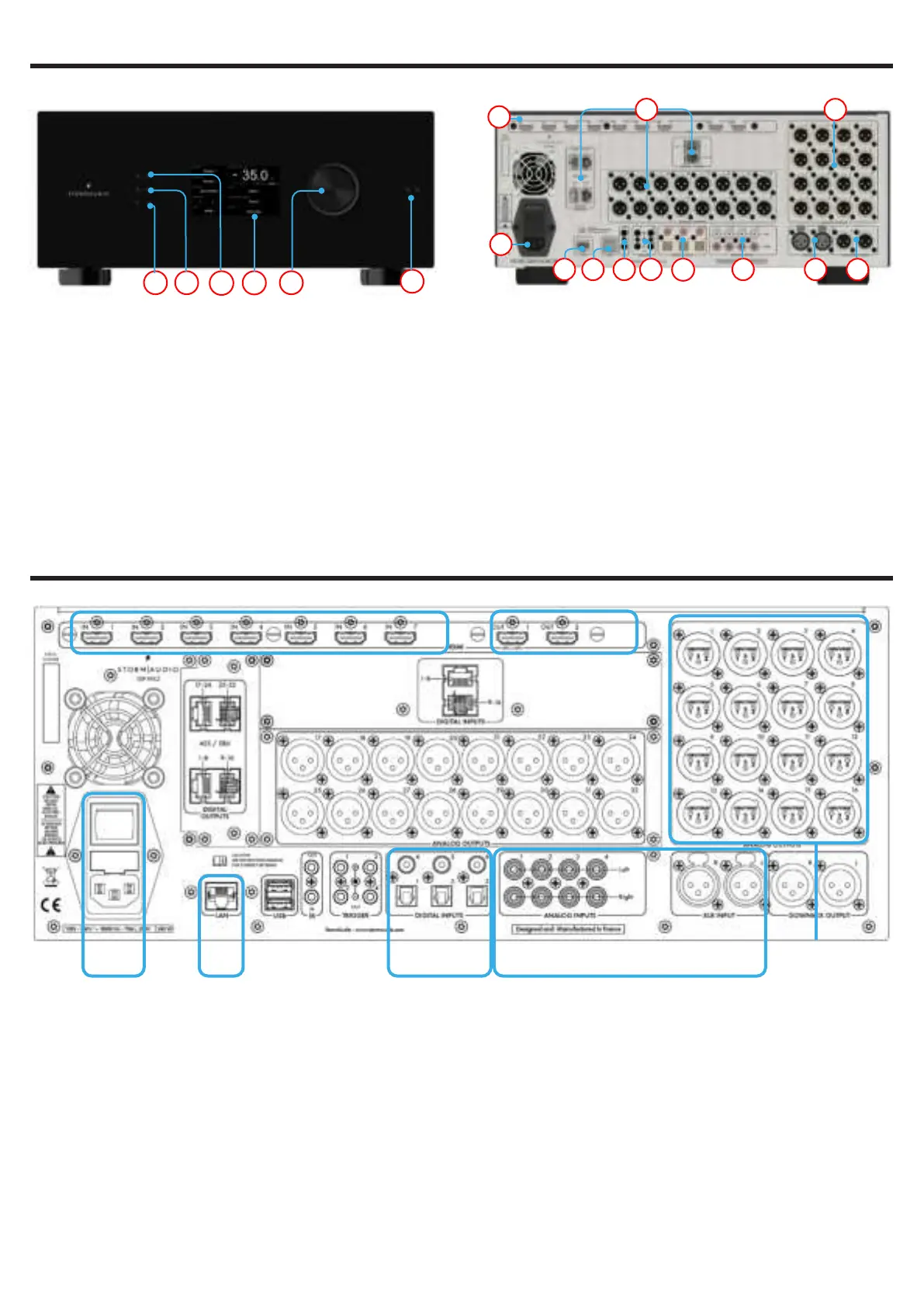

1. Standby button
2. Exit button
3. Enter button
4. Edit button
5. Display
6. Volume/Mute knob
7. HDMI In & Out
8. AC Inlet
9. Ethernet port
10. USB ports
11. IR Input/Output
12. Trigger outputs
13. Digital Inputs, Optical
and Coaxial
14. Unbalanced Analog
Inputs
15. Balanced Analog
Input
16. Downmixed Output
17. Channels 1 to 16
Balanced Outputs
18. Available slots for
optional modules
extending the I/O
capabilities of the ISP
MK2. Refer to Owner
Manual for more
details.
1
21 3
6
4
5
1. Connect your AC cable to a grounded outlet.
2. Connect your RJ45 LAN cable to your router.
3. Connect your digital sources either via the Toslink
Optical or Coaxial interfaces.
4. Connect your analog stereo sources to the
Unbalanced RCA inputs (for 7.1/5.1 Ch source, refer
to Owner Manual) or Balanced XLR input.
5. Connect the Balanced Outputs 1 to 16 to your
amplifiers.
6. Connect your HDMI sources on any input from
1 to 7, all supporting HDMI2.0/HDCP2.2, 18 Gbps
speeds.
7. Connect your screen or projector on Outputs 1
and 2, both supporting HDMI2.0/HDCP2.2. Note
that ARC/eARC is only supported in Output 1.
Note: check Owner Manual for other connections.
1
7
1 - PANELS OVERVIEW
2 - INPUTS AND OUTPUTS CONNECTION
