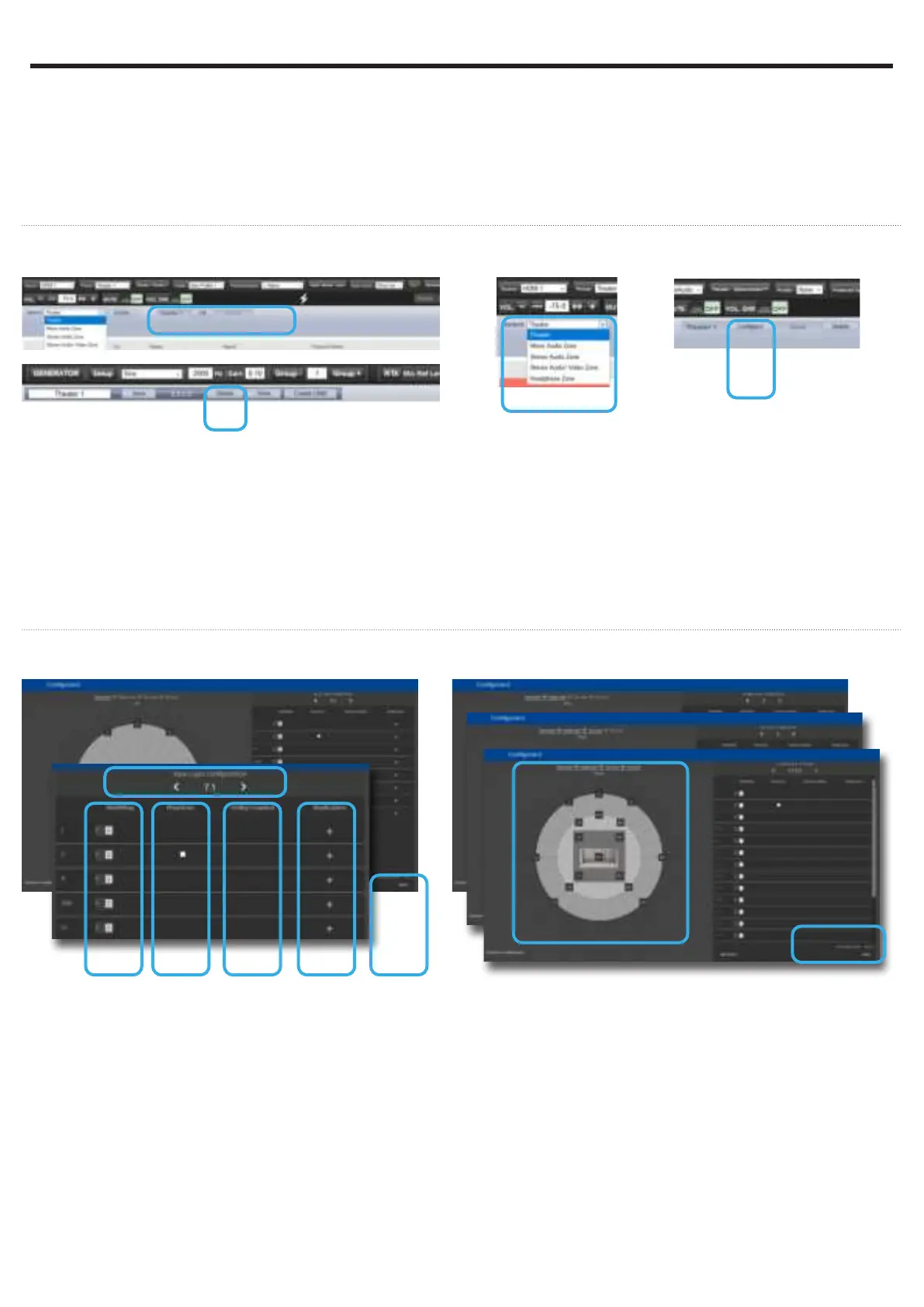

By default a 2 channels theater is defined. If it doesn’t
meet your need, delete it and create a new theater
following below steps:
1. Select Edit Theater 1.
2. When edited, select the Delete button. This will
remove definitely this Theater from the system.
3. You now can create a new Theater corresponding
to your room and speakers setup by selecting
Theater in the drop-down list and then Create.
4. Once created, you need to Configure it.
Note: you can define Theaters and additional Audio
Zones (2ch or mono). We will only cover Theaters
configuration in this Guide. Please consult the Owner
Manual for the other cases.
Create your Theater
Configure your Theater
When in the Theater Configurator, you will be able
to define each layer of the speaker installation: base,
height and top layers.
1. Choose using the left and right arrows which
layout you expect for the layer.
2. For each speaker, you can define whether full
bandwidth or multiway, with up to 4 ways
definable.
3. The Center channel can be turned to Phantom
mode, the signal being played in Left and Right
channels.
4. Top speakers can be defined as Dolby Atmos
Enabled for the case up-firing speakers are used.
In such case, select the base speaker location.
Keep «None» for normal down-firing speakers.
5. For each speaker, you can define whether
replication is required. It is often used for multiple
subwoofers use or multiple rows of surround
speakers.
6. Press Next to reach the next layer and follow
again steps 1 to 6 until all three layers are defined.
7. At the end, a summary of the Speakers
Configuration is shown.
8. Save to exit and reach the Speakers edition page.
In this part, we will cover the configuration of the
speakers in the installation following Main Speakers
tab selection. As systems might easily get complicated,
the Quick Guide will only focus on a basic use case
where full bandwidth passive speakers are used. We
will not treat the specific multi-ways speakers.
Also, we will consider multiple rows of surround
speakers as well as multiple subwoofers.
For the case you need a different configuration, we
invite you to refer to the Owner Manual providing
access to all possible adjustments of the ISP.
2
1
3 4 5 6
7
8
5 - THEATER DEFINITION (1/2)
