5
Prepare the Storm Shell Back and Front (Follow assembly
instructions found in 55 or 65 Storm Shell Instruction Manual)
Install the Storm Shell Back onto Pole Mount
Two people are needed for this installation.

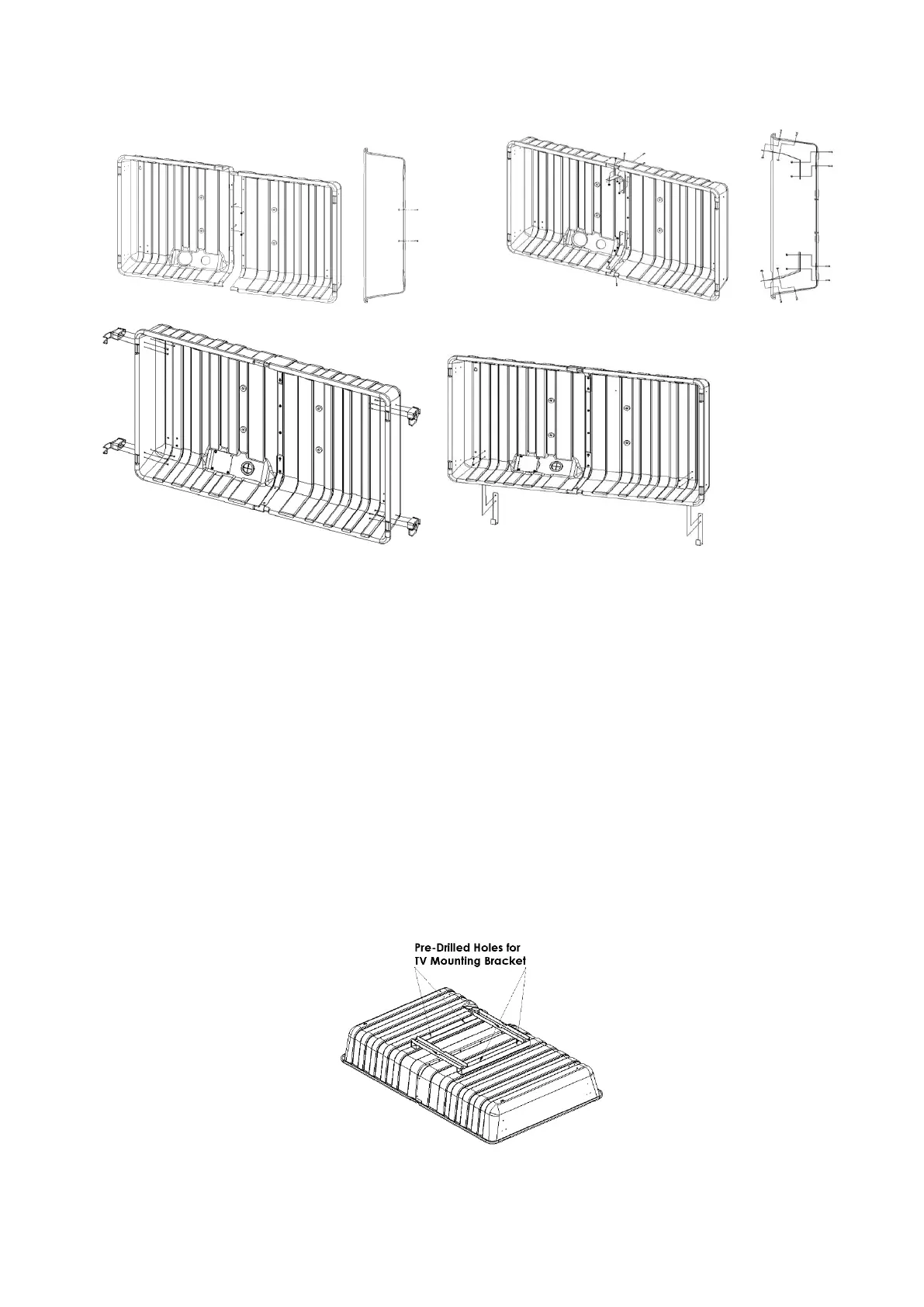

1. Place Storm Shell on a protective cover over the ground or other smooth surface with the
back facing upwards. Position the Pole Mount Plate on the back of the Storm Shell. Make
sure the flat side of Mount Plate is lying flat against Storm Shell Hard Cover Back (Figure 4a
and 4b). Line up pre-drilled TV Mounting holes on Storm Shell Hard Cover with holes on Pole
Mount Plate. (optional – to ensure Mount Plate is in correct location you may assemble (4)
M8 x 30mm bolts (L6). Insert from the back of Pole Mount Plate and fasten on inside of
body)
