Storm Shell 55 - Securing Shell and Bracket Assembly; Attaching Shell Back and Connecting TV Bracket

7
Figure 4c

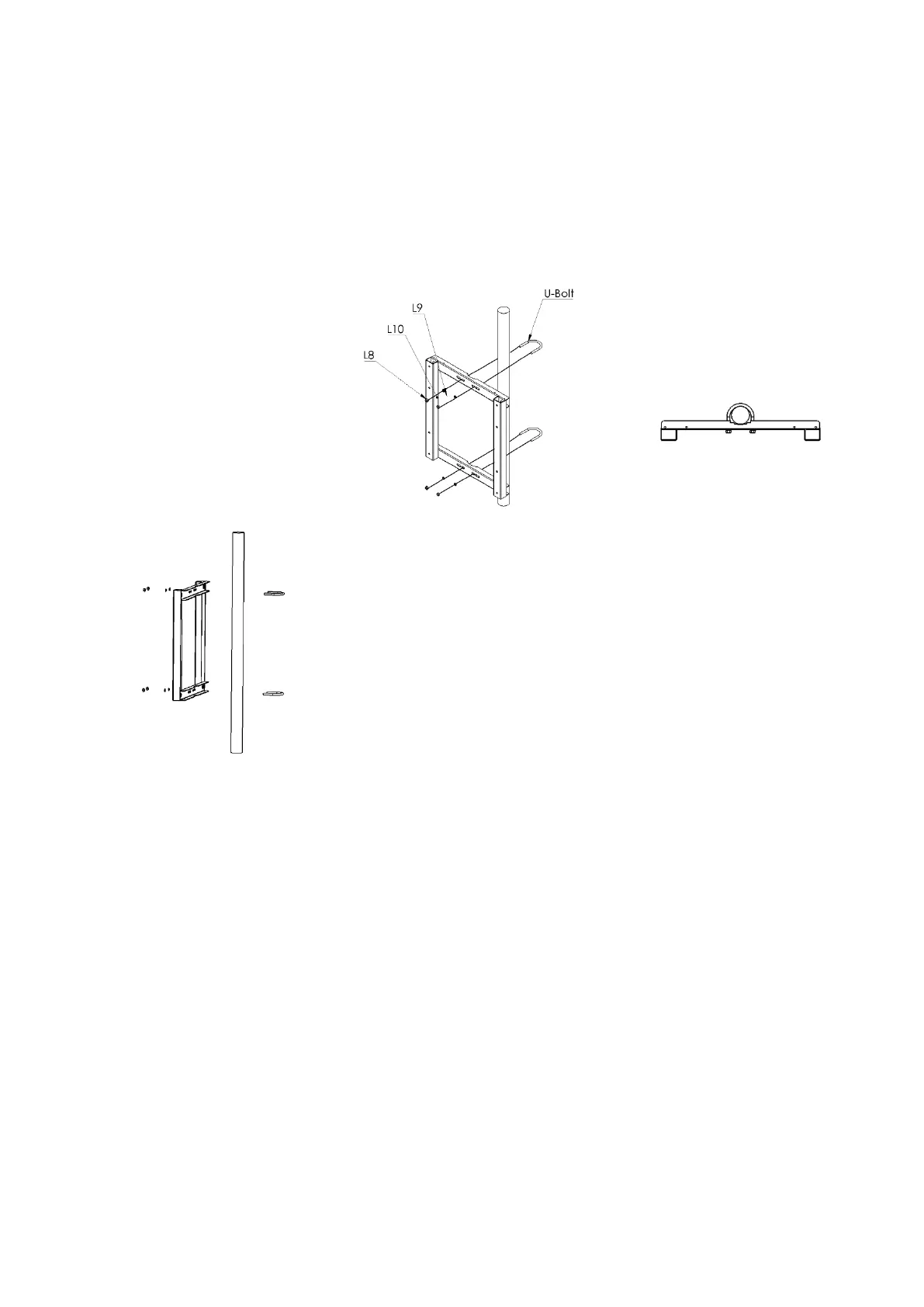

3. Position Pole Mount Bracket at desired height on vertical pole. Next, assemble proper U-Bolts
(L1, L2, L3, or L4) around vertical pole depending on the diameter of the pole (Figure 5a). Tightly
fasten on back side of Mount Plate with M8 Nut (L8), Spring Washer (L10), and Flat Washer (L9).
(Figure 5b/ Figure 5c)
Figure 5a Figure5b Figure 5c (assembled)
4. Position back part of the Storm Shell TV Hard Cover on the assembled vertical Pole Mount Plate.
Assemble (4) M6 x 16mm bolts (L5) through the back side of the Pole Mount Plate through
corresponding drilled holes on the Storm Shell TV Hard Cover Body from Step 2. The Hole Locations
can be seen in Figure 6b. Fasten bolts with M6 nuts (L7) from the inside of Hard Cover Body.
