8

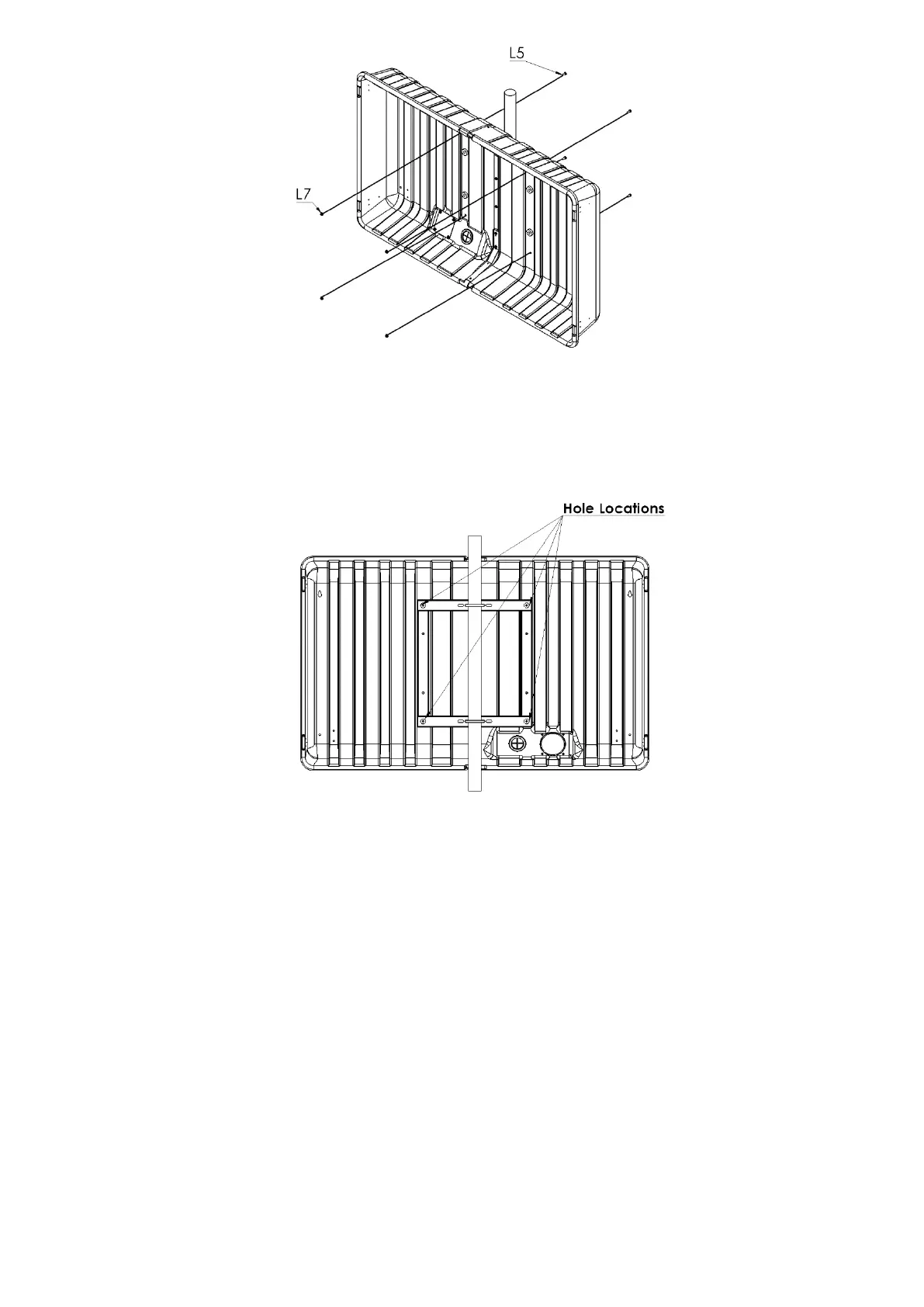

Figure 6a
Figure 6b
5. Connect Storm Shell TV Mounting Bracket to the Pole Mount Plate through the TV Hard Cover
Body (Figure 7a). Fasten using (4) M8 x 30mm bolts (L6) starting from the back of the Pole Mounting
Plate through the corresponding holes on the TV Hard Cover, and through the holes (4) on TV
Mounting Bracket vertical plate. Tightly fasten with M8 Nut (L8), Spring Washer (L10) and Flat
Washer (L9) on the inside of Mounting Bracket.
