Strasbaugh Mechanical Maintenance Procedures
Version 4.0 - February 1998 9 - 9
ILLUSTRATIONS OF CARRIER COMPONENTS
The assembly drawing extracts below are provided to aid in identification of the
components named in the carrier maintenance procedures.

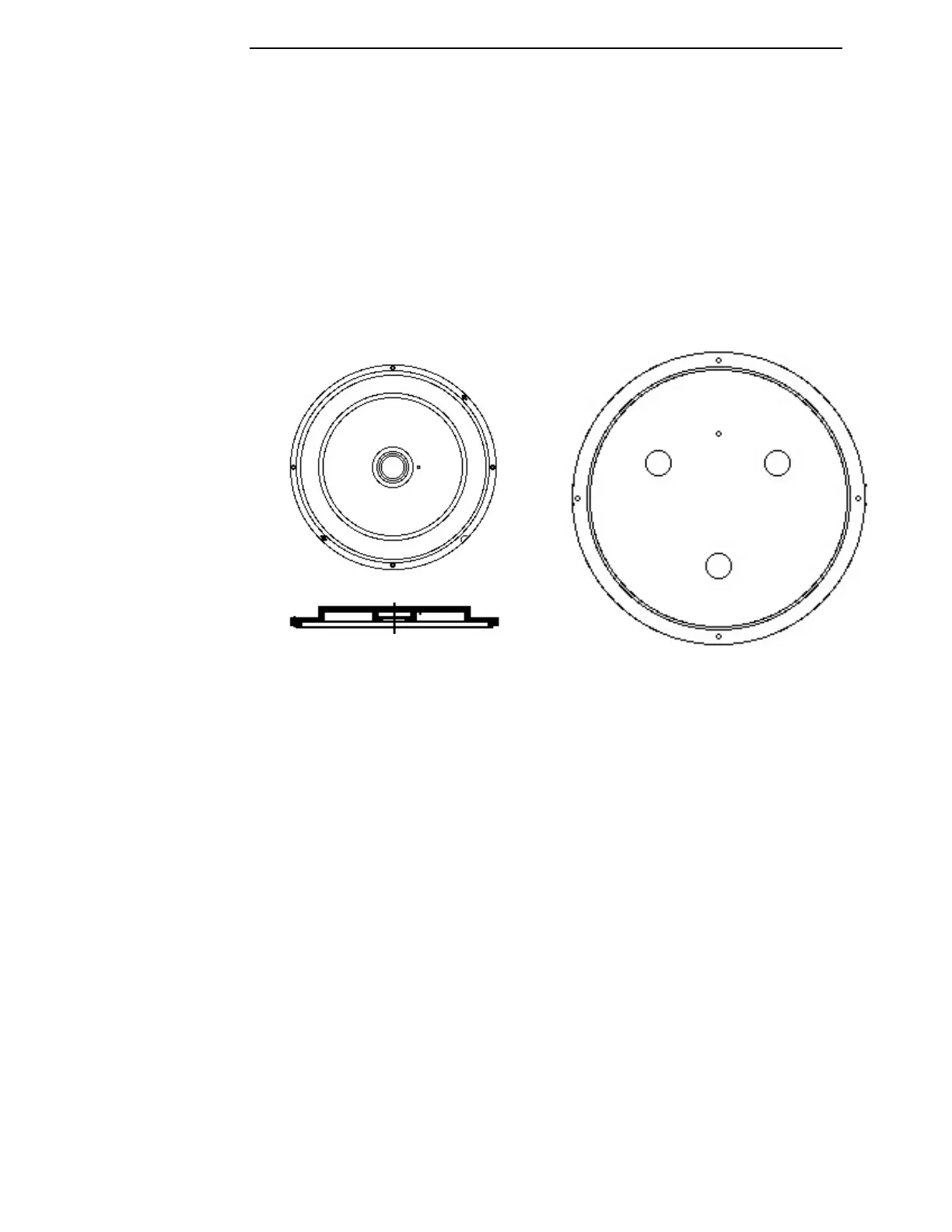

Figure 9-1 Carrier Top Plate Figure 9-2 Carrier Manifold Plate
