Strasbaugh Machine Description
Version 4.0 - February 1998 2 - 37

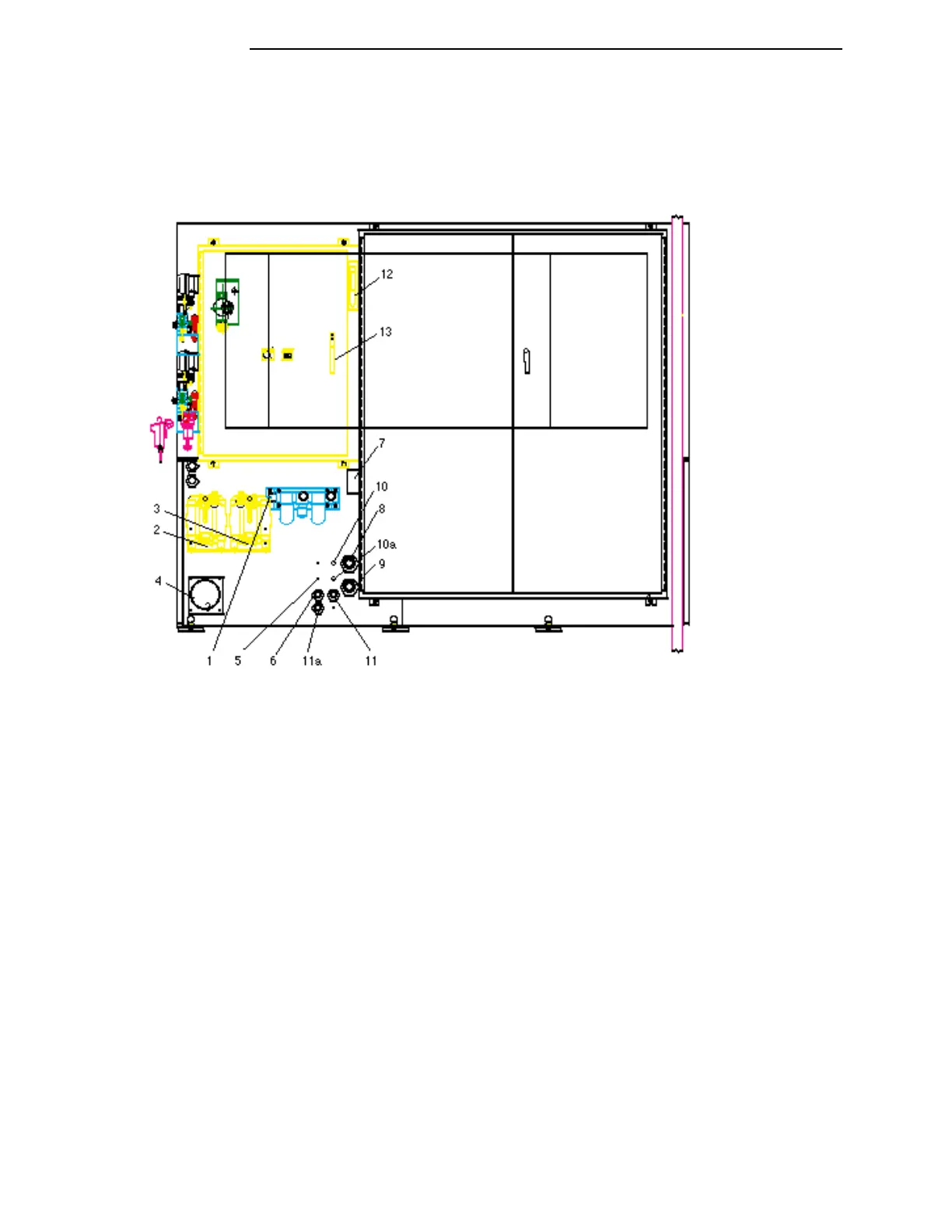

Figure 2-7 Utility Connections - Standard Configuration
1 Compressed Air Supply 9 Loader Drain
2 Slurry 1 Supply 10 D. I. Water In
3 Slurry 2 Supply 10a D. I. Water Return
4 Exhaust 11 Coolant In
5 Vacuum 11a Coolant Bypass
6 Coolant Out 12 Main Machine Circuit Breaker
7 110 VAC Quad Outlet 13 Door Handle
8 Table Drain
