Theme 22 Issue 2.1 09/07/01 Page 11 of 12
Replacement of ignition &
pilot assembly
1. Repeat operations 1 - 7, as described for 'Replacement of gas tap/FSD/piezo igniter'.
2. Disconnect thermocouple connection to the gas tap/FSD/piezo igniter.
3. Disconnect pipe from base of pilot burner tube.
4. Pull off connector on the base of the igniter probe.
5. Remove 2 screws on gas burner and remove ignition unit complete.
6. Fit new pilot assembly and reassemble in reverse order.
7. Turn on the gas supply and check for soundness.
8. Check operation of ignition system.

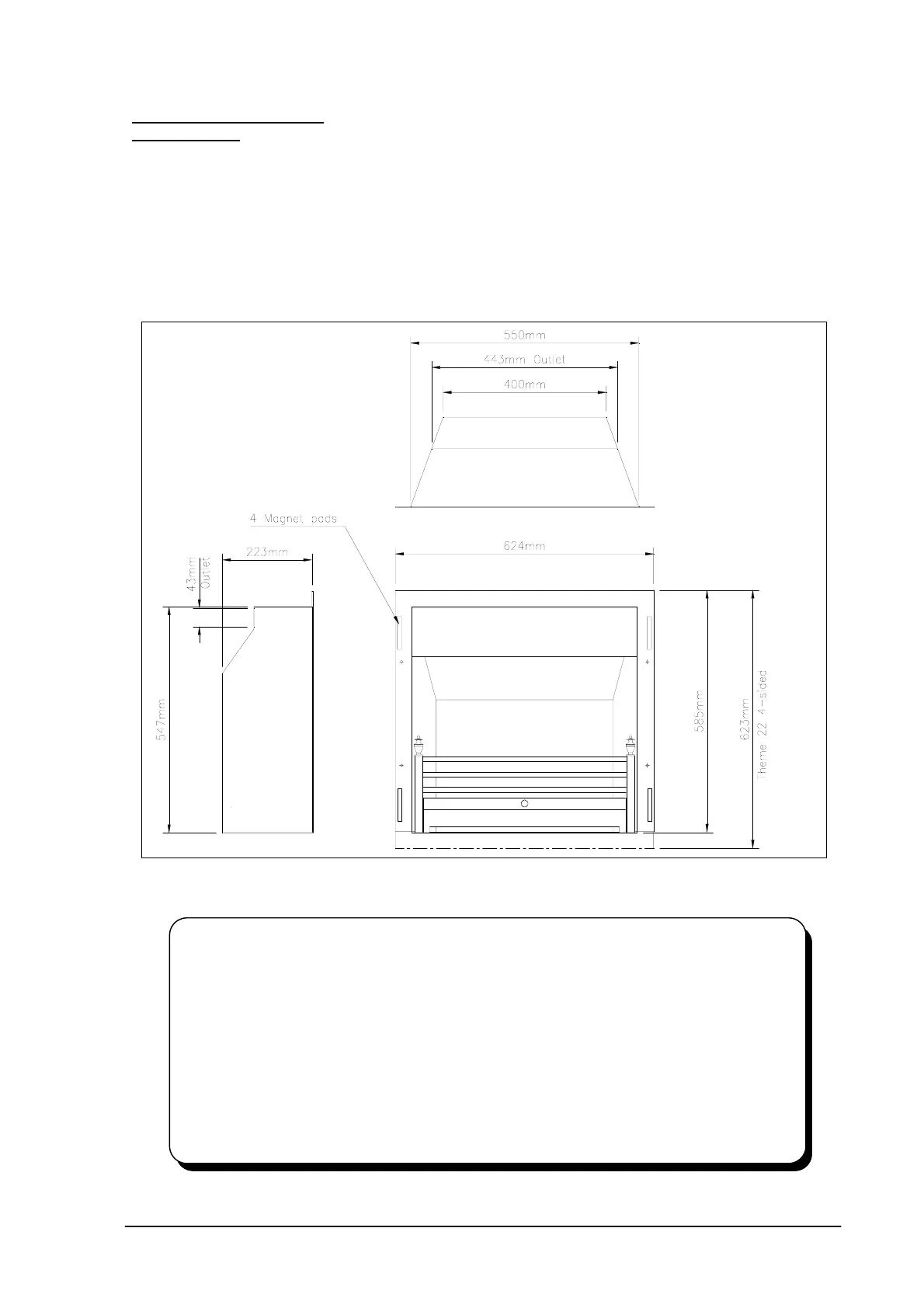

Fig. 14 Theme 22 outline drawing without trim
SPARE PARTS
When ordering spare parts please quote part numbers as listed below:
NATURAL GAS L.P.G. (Propane)
Gas tap / FSD / piezo igniter BV50023 BV50147
Oxypilot assembly BA50004 BA50041
Injector BI70800 BI70620
3 - Back ceramics (left, right, centre) BC11610 BC11610
2 - Centre ceramics (left & right) BC11394 BC11394
3 - Front ceramics (left, right, centre) BC11520 BC11520
Set of 21 coals BC50084 BC50084
495mm Lowline Version
534mm Lowline Version
