Streamax X7 PRO-H0804 - Hard Disk Installation Instruction

User Manual for X7 SE -H0804
For more information, please visit our website www.en.streamax.com
8 - 11
4
VGA
VGA video interface
5
eSATA
eSATA interface
6
Panel
Control Panel (CP4) interface
7
3G / 4G antenna interface
8
WIFI antenna interface
9
GPS antenna interface
10
Print serial interface
11
USB
USB 2.0 interface (type-B)
12
A/V IN 1~8
AHD interfaces 1 to 8
13
IPC 1~8
IPC interfaces 1 to 8
14
LAN
RJ45 (10/100/1000M) network port

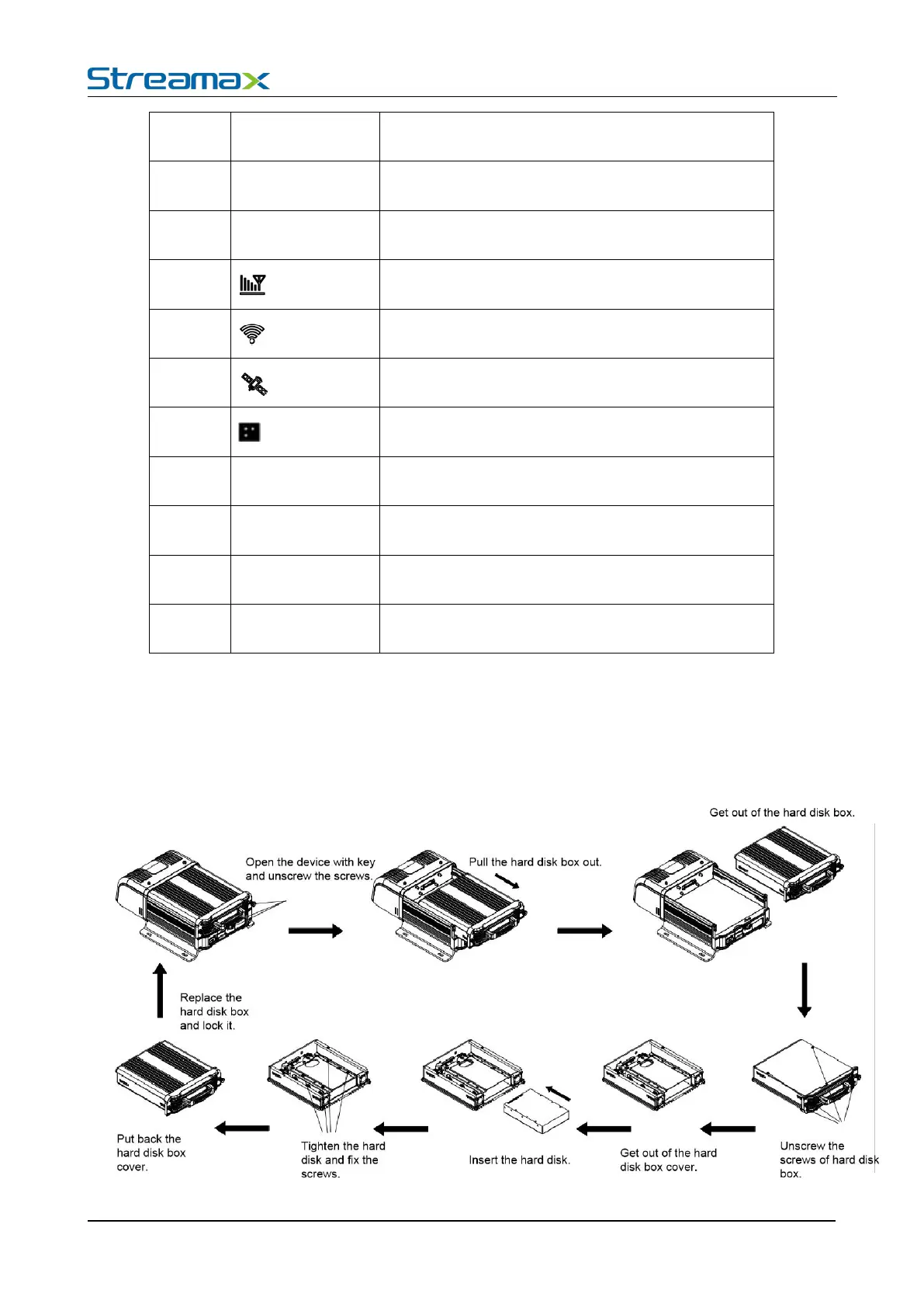

1.5. HARD DISK INSTALLATION INSTRUCTION
