SURVIVOR LED-REPAIR INSTRUCTIONS
II. LED MODULE ASSEMBLY-REPLACEMENT
A. Disassembly
1) Release latch on Battery Door Assembly (Item 3) and remove Battery
Carrier Assembly (Item 4A or 4B).
ATEX ONLY: Remove Insert Screw (Item 5) to release latch on Battery
Door Assembly (Item 3). Body will have Insert.
Note: Only remove Battery Retaining Pin (Item 7) if replacement of
Battery Door assembly (Item 3) is required.
2) Remove Face Cap Assembly (Item1). Replace Facecap O-ring (Item 2) as
required.
Note: If lens or reflector requires replacement, reference Section III.

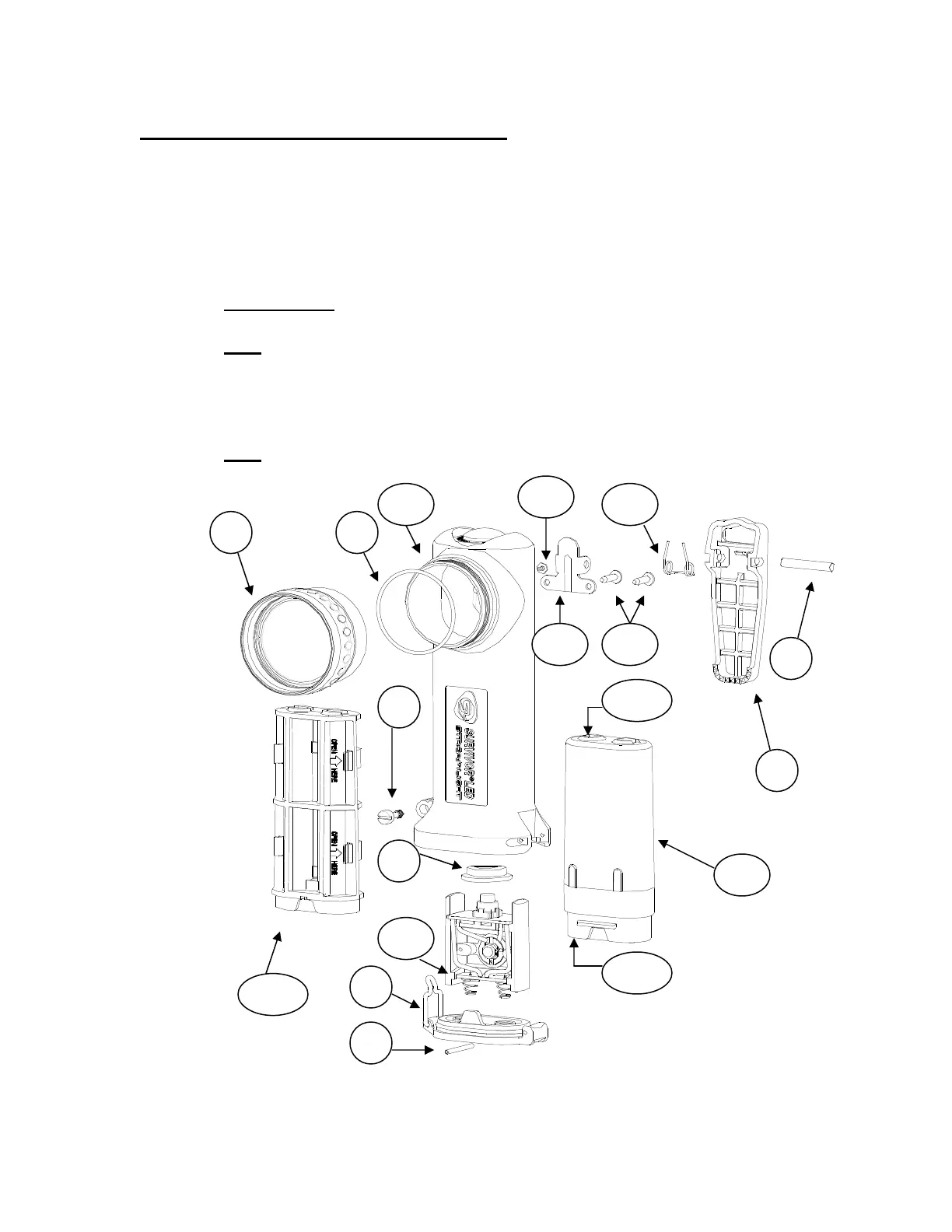

Figure 1
Page 3 of 14 DEC. 2011
1
2
5
3
6
4A
4
B
1
3
7
1
2
1
1
8
9
1
4
1
0
15
