SURVIVOR LED-REPAIR INSTRUCTIONS
II. LED MODULE ASSEMBLY-REPLACEMENT
B. Reassembly (cont’d)

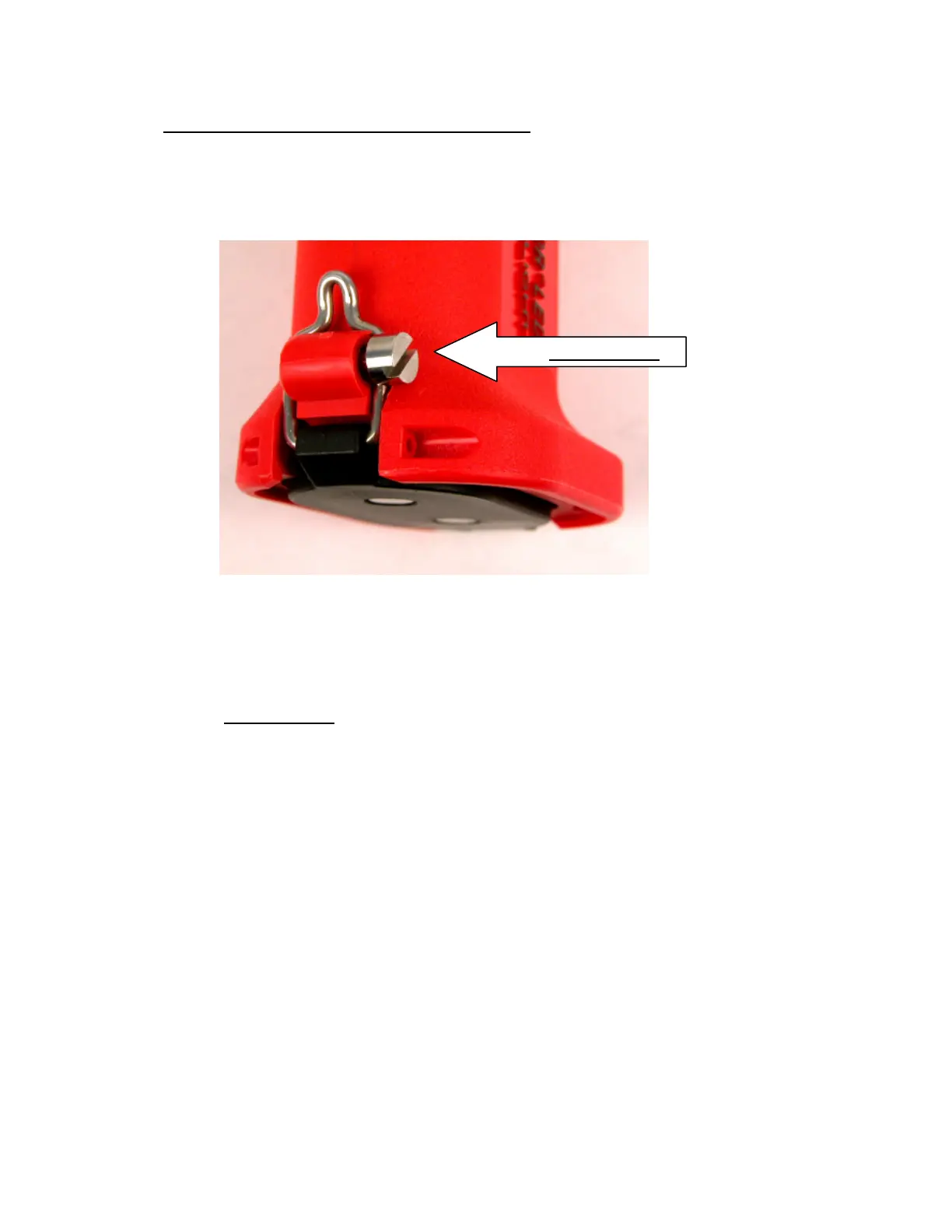

Picture 11
14) Close and secure hinged Battery Door Assembly. Applying pressure to
door will ease fastening latch (Picture 11).
ATEX ONLY: Re-install Insert Screw once Battery Door Assembly is
secure (see arrow). Threaded insert installed in body at factory
(not shown).
14) Test light. Check switch for proper operation:
• Push switch until click on to test “on” function.
• Push and hold the switch for one second to dim.
• Push and hold the switch two seconds to activate the “strobe” mode.
• Push switch until click off to test “off’ function.
Page 9 of 14 DEC. 2011
SCREW-ATEX ONLY
