SURVIVOR LED-REPAIR INSTRUCTIONS
II. LED MODULE ASSEMBLY-REPLACEMENT
B. Reassembly (cont’d)
11) Inspect and lubricate o-ring (item 2). Clean and/or replace lens as needed.
Note: Reference Section-III for replacement.

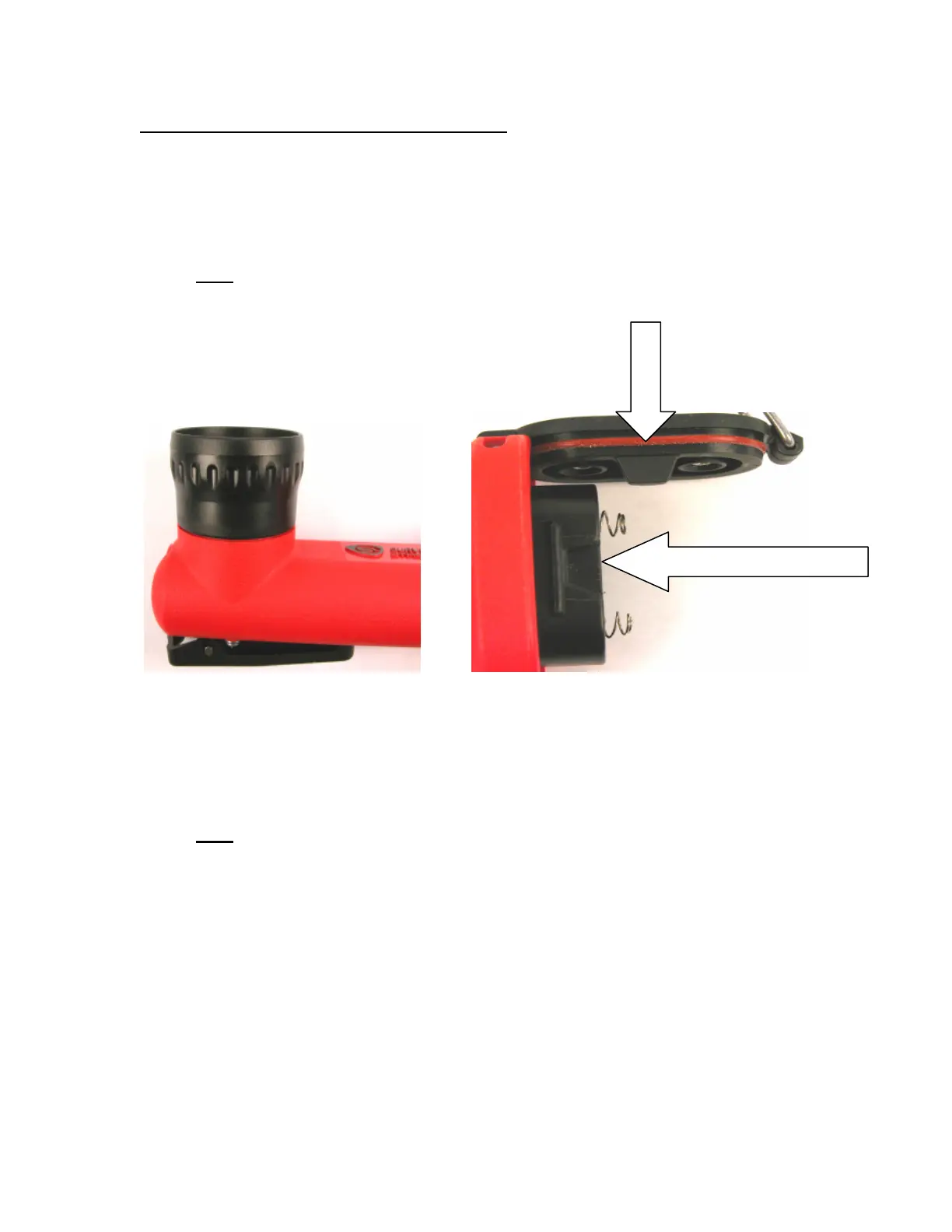

Picture 9 Picture 10
12) Install Face Cap Assembly. Tighten until seated firmly against body.
(Picture 9).
Note: Clean and/or replace lens as needed. (Reference Section III).
13) Check the Battery Pack (Reference Section II.2)and insert into the body in
the proper direction. Key on battery door should align with key slot on
battery (Picture 10).
Page 8 of 14 DEC. 2011
KEY SLOT-BATTERY
