SURVIVOR LED-REPAIR INSTRUCTIONS
II. LED MODULE ASSEMBLY-REPLACEMENT
B. Reassembly (cont’d)

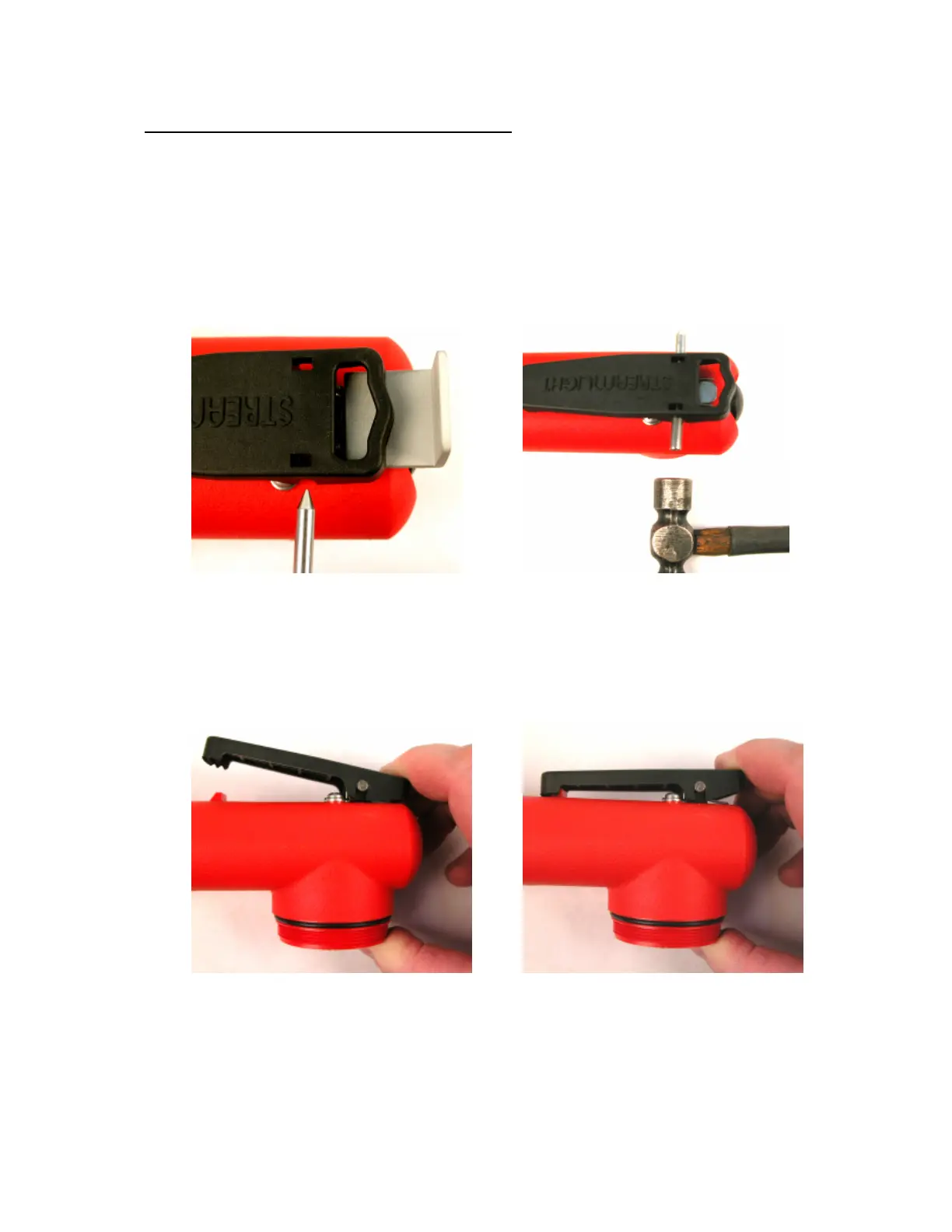

8) While holding the belt clip in position, insert the tapered pin tool (from
kit) through the holes on the belt clip and spring until it is flush with the
clip (Picture 6).
Picture 6 Picture 7
9) While holding the belt clip in position, replace the tapered pin from kit
with the Belt Clip Pin (Item 8). The pin should be flush with the belt clip
(Picture 7).
Picture 8 Picture 9
10) Clip should spring back if installed properly (Picture 8 and 9).
Page 7 of 14 DEC. 2011
