SURVIVOR LED-REPAIR INSTRUCTIONS
II. LED MODULE ASSEMBLY-REPLACEMENT
B. Reassembly (cont’d.)

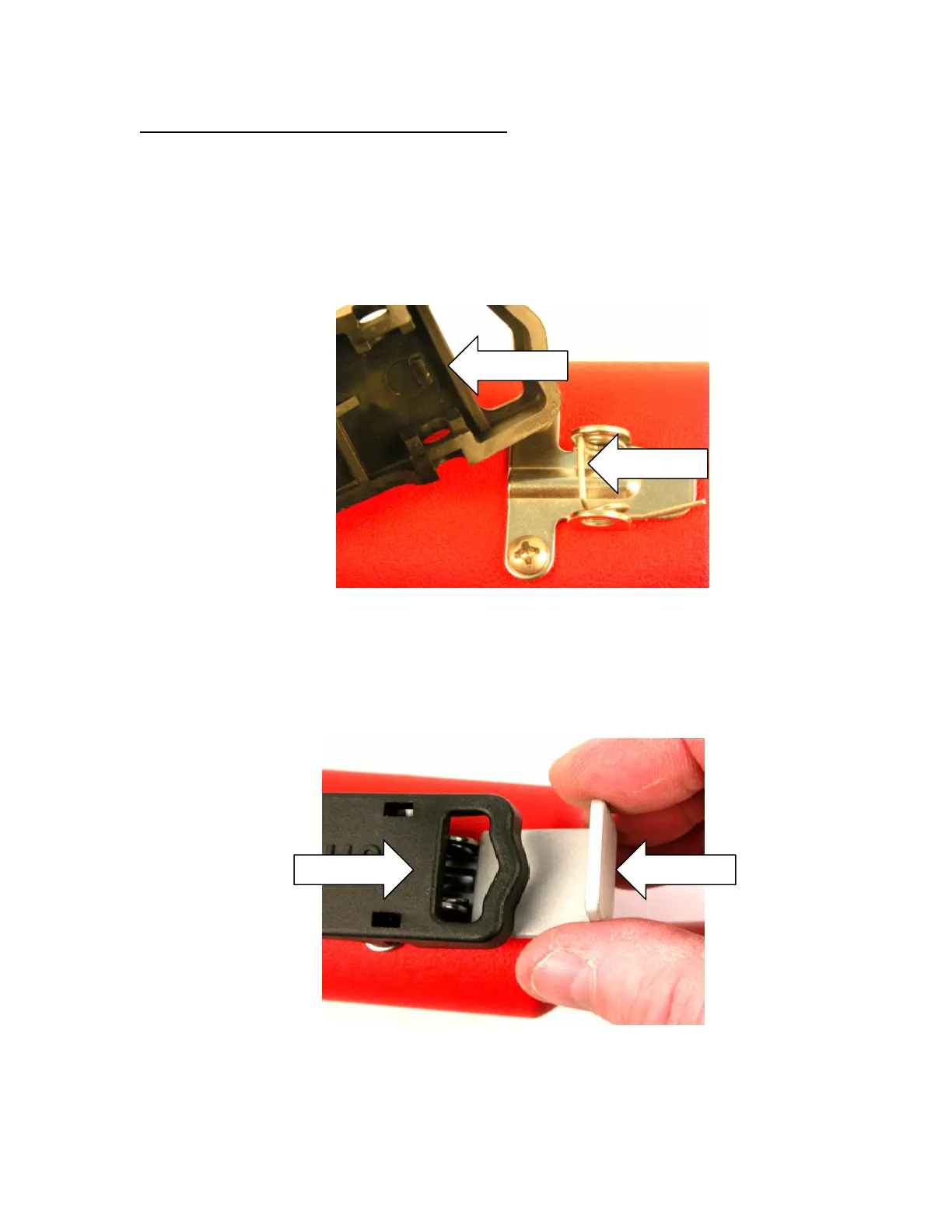

6) Place belt clip over spring. Aligning slot in tab (A) with bridge (B) on
spring (Picture 4).
Picture 4
7) While holding the angled tool, push the Clip down and forward against
the angled tool until the holes in the clip line up with the holes in the
spring (Picture 5).
Picture 5
Page 6 of 14 DEC. 2011
PUSH PUSH
A
B
