SURVIVOR LED-REPAIR INSTRUCTIONS
II. LED MODULE ASSEMBLY-REPLACEMENT
B. Reassembly (cont’d.)

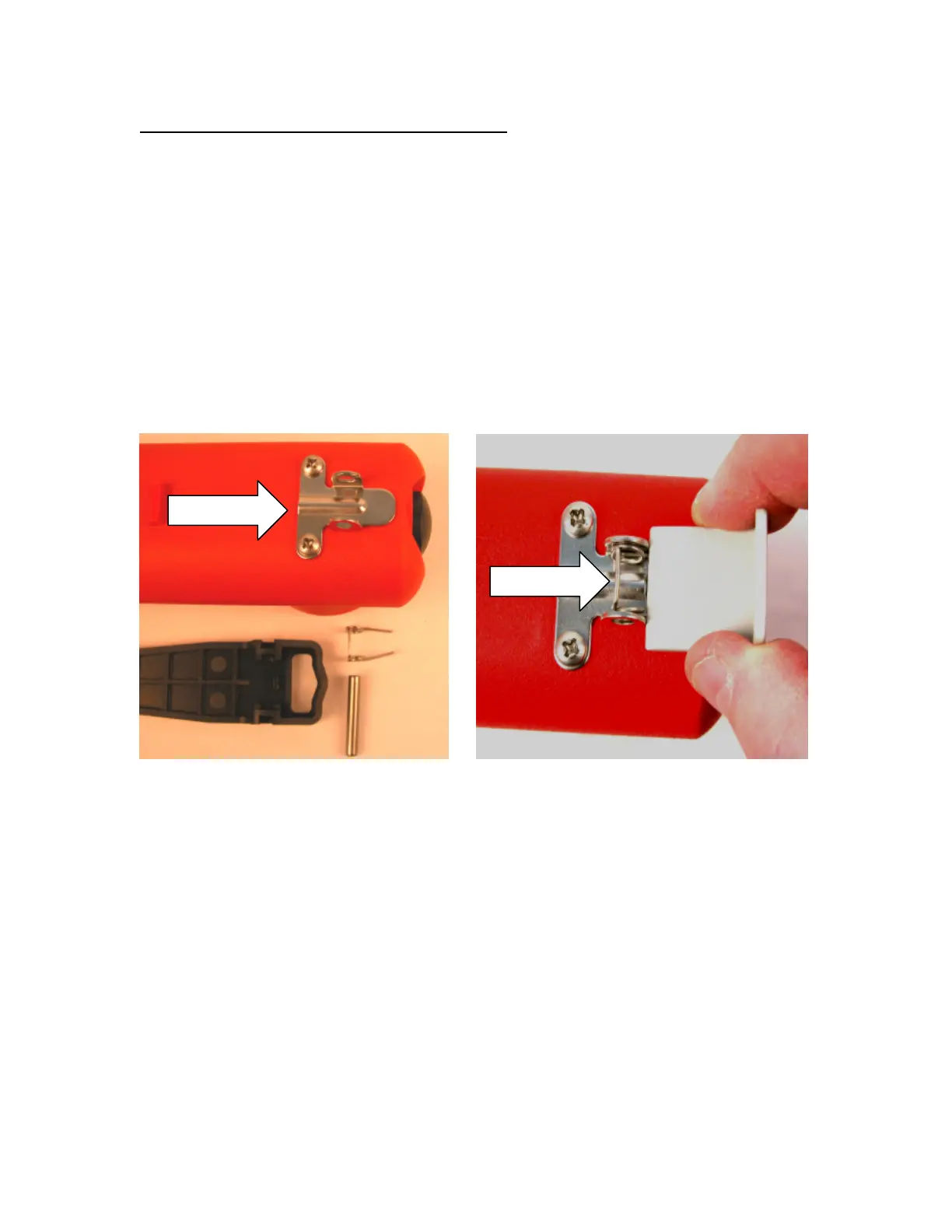

3) Install Clip Bracket with (2) mounting Screws (2) as shown (Picture 2),
fastening to LED Module Assembly. Tighten firmly.
4) Insert Double Torsion Spring inside the clip bracket with the legs of the
spring flat against the bracket and pointing towards the top of the
housing. Align the holes of the spring with the holes in the bracket
(Picture 3).
Picture 2 Picture 3
5) Place angled tool from kit against the two legs of the spring and against
the Clip Bracket (Picture 3).
Page 5 of 14 DEC. 2011
SPRING
