Mounting on a Concrete Wall
Use the provided concrete anchors (M8×70 expansion bolts) for installation.
Pro Tip: Concrete anchors not provided. We recommend an outdoor-rated
5
/16" × 2½" wedge or
sleeve anchor for concrete installation.
Warning: The ceiling must be solid concrete or concrete block. Verify first that the concrete is at
least 1
3
/8” thick, and at least 2000 psi concrete strength. Do not drill into concrete seams!
Place the wall bracket drill template on the wall in the desired location, at least 1" from any seams in
the concrete. Ensure that it is level and that the arrow is pointing up. Mark the locations to drill pilot
holes for mounting.

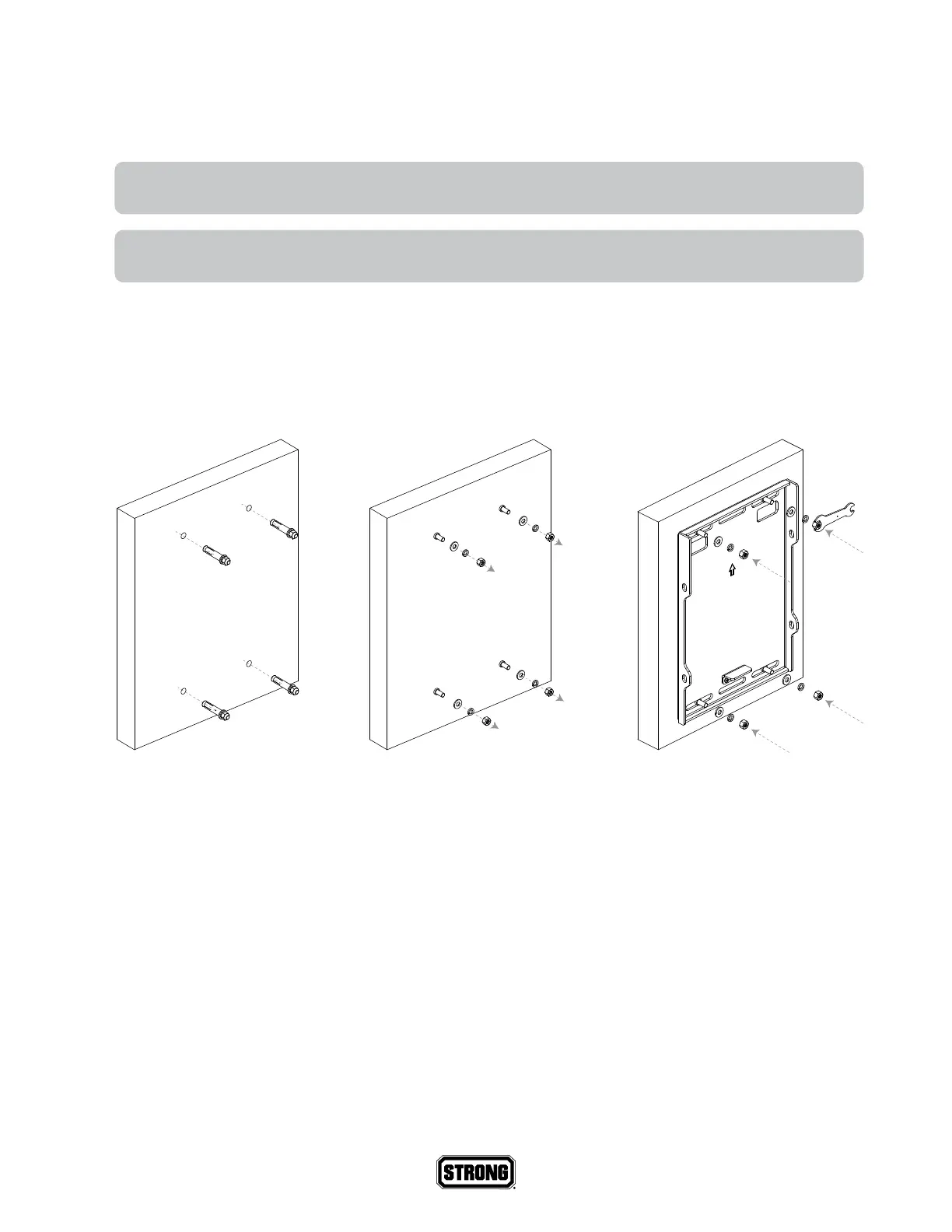

Insert hex sleeve anchors and insert per instructions included with wall anchors
.
Remove washer and nut from end of bolt from all four anchor studs
.
Place the wall plate in place over the bolts, ensuring that the arrow points up.
Replace the washers and nuts onto ends of the bolts and tighten until secure
.
1 2 3
