14

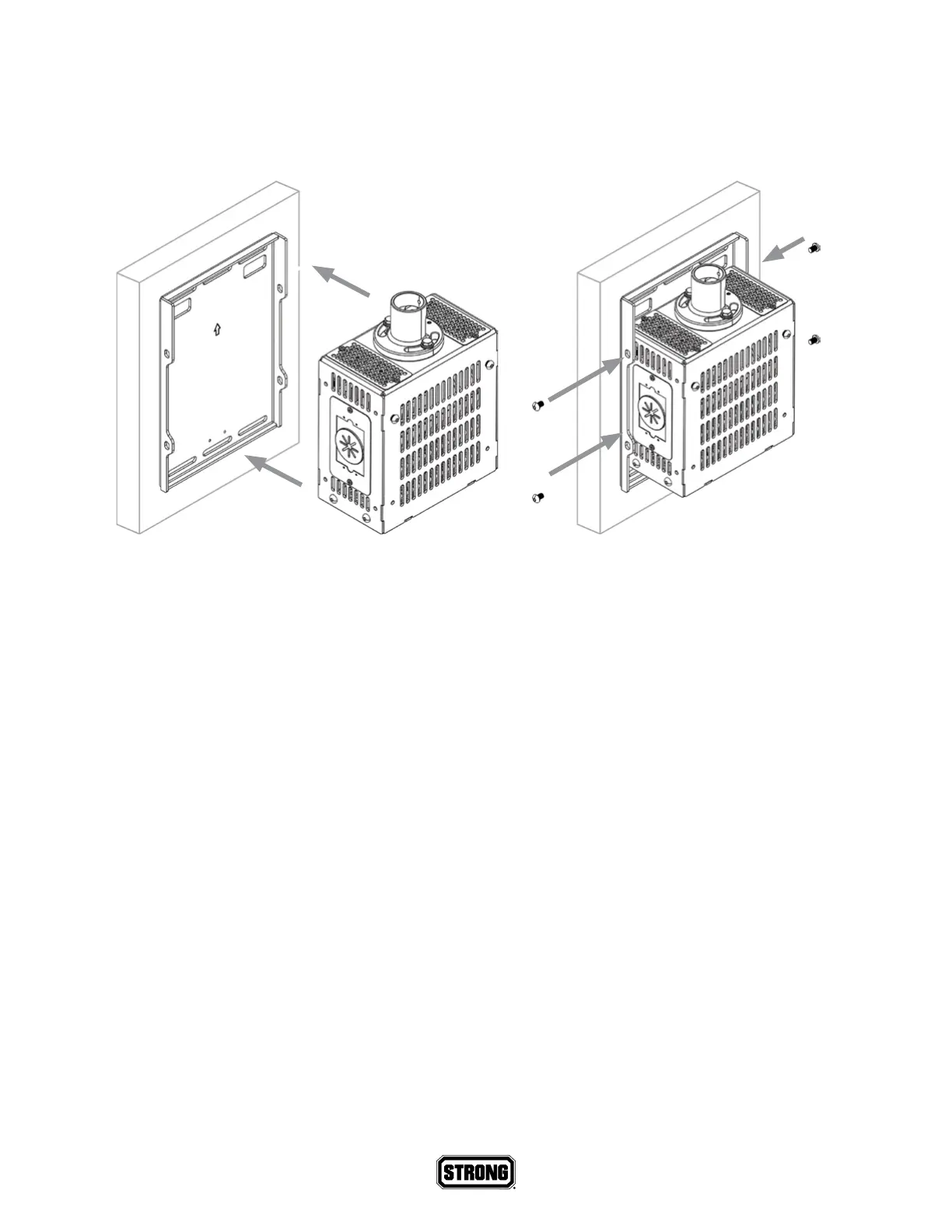

Attach the Utility Box to the Bracket
Place the utility box into the wall bracket. Secure each side with two screws as shown. Secure the top
two screws first, then insert and secure the bottom screws to align the utility box.
Proceed to Section 3, next page.

Other manuals for Strong Carbon Series

Preview: Installation Manual
Installation Manual8 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Strong Carbon Series and is the answer not in the manual?

Strong Carbon Series Specifications

General IconGeneral
TypeFull Motion
ColorBlack
VESA Compatibility200x100mm to 600x400mm
Extension Range2.4" to 19.3" (60mm to 490mm)
MaterialSteel
TV Size Compatibility37" to 70"
Mounting PatternUniversal
