Strong Carbon Series User Manual

17

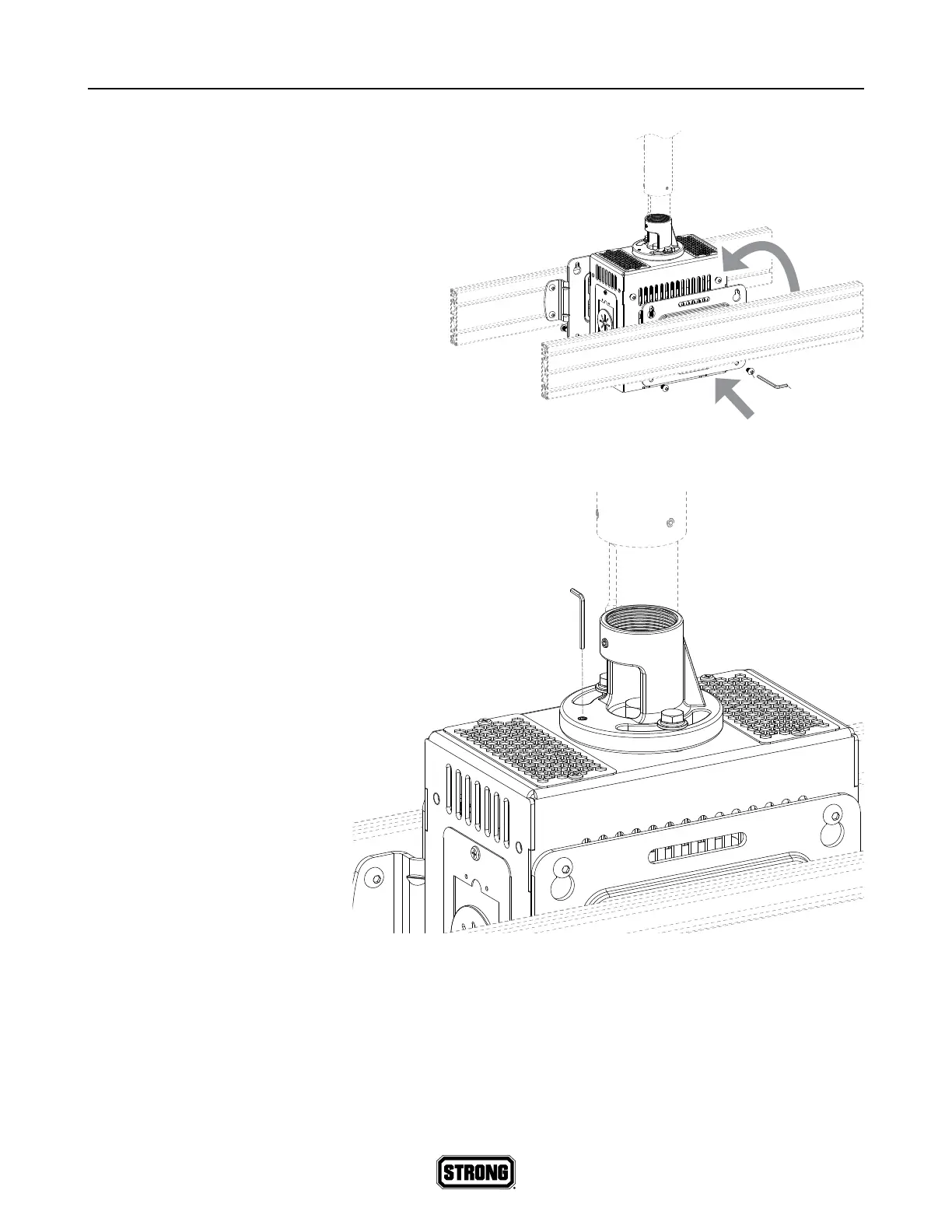

Hang the Rails on the Utility Boxes
The utility boxes should still have the top
screws in them. If they don’t, insert those
screws, leaving 5–6mm of space for the
adapter plate.
Hang the top of the adapter plates onto
the utility boxes, and let them slide down
to seat properly

. Insert the screws into
the bottom holes of the adapter plate and
tighten them

. Then tighten the screws
at the top of the adapter plate.
Adjust Utility Box Alignment
If the utility boxes are not
perfectly straight, loosen the set
screw at the top, and align the
utility box manually. You can
adjust a box’s alignment by up
to 45° in either direction.
Tighten the set screw when
finished.
1
2

Strong Carbon Series Specifications

General

Type	Full Motion
Color	Black
VESA Compatibility	200x100mm to 600x400mm
Extension Range	2.4" to 19.3" (60mm to 490mm)
Material	Steel
TV Size Compatibility	37" to 70"
Mounting Pattern	Universal
