18

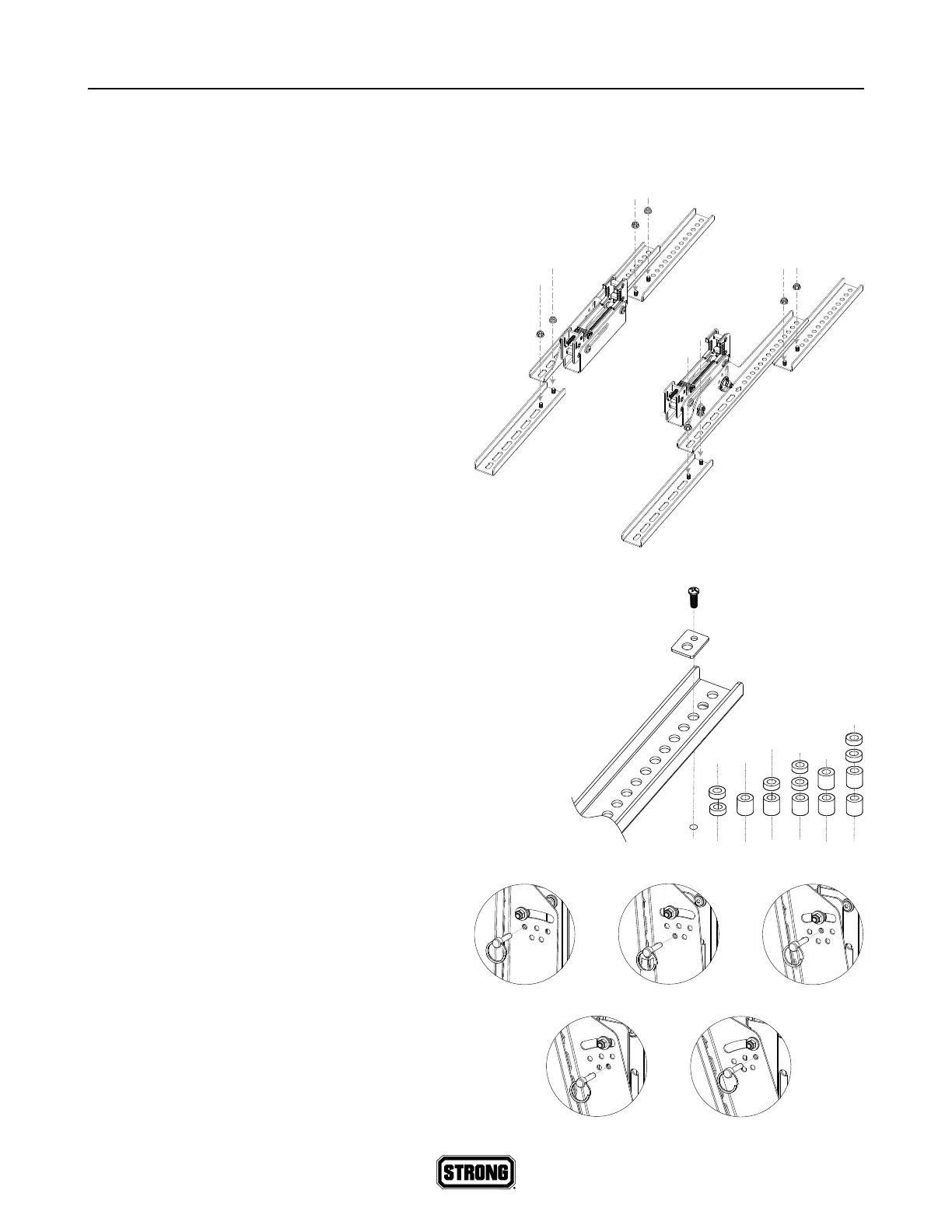

Attach Arms to the Displays
The arms come in two pieces. Since they are not connected, they can handle any VESA pattern width.
The VESA height each arm can accommodate depends on the part number.
Fix Arm Length
Align the arms with the display to see how
long the arms need to be.
Nest the clamp section with the extenders if
necessary.
Attach nuts to the extended bolts and tighten
securely.
Select Spacers and Attach Arms
Select the appropriate hardware (screws, washers, and
spacers) necessary to secure the arms to the display.
Hardware requirements vary by TV brand.
Attach the arms to the displays. Ensure that the arrows
etched into the arms both point up. This means the edges
of the display arms bend away from the display casing,
and the clamps are toward the center and bottom of the
display.
Set Angles
The arms can be set to tilt the displays up
to 20° down, in increments of 5°. Select the
angle by inserting the pin into the proper
hole. Adjust all arms to the same angle to
ensure the displays are consistent.
0°
-5°
-10°
-15°
-20°
