Mounting on a Concrete Ceiling
Use the provided concrete anchors (M8×70 expansion bolts) for installation. We recommend an
outdoor-rated
5
/16" × 2½" wedge or sleeve anchor for concrete installation.
Warning: The ceiling must be solid concrete or concrete block. Verify first that the concrete is at
least 1
3
/8” thick, and at least 2000 psi concrete strength. Do not drill into concrete seams!
Drill anchor holes into the concrete and insert concrete anchors per their instructions.
Remove the washer and nut from the anchor bolts. Place the ceiling plate over the bolts. Secure the
ceiling plate with the washer and nut. Tighten the nut until secure, per the instructions included with
the wall anchors .
Mounting on I-Beams

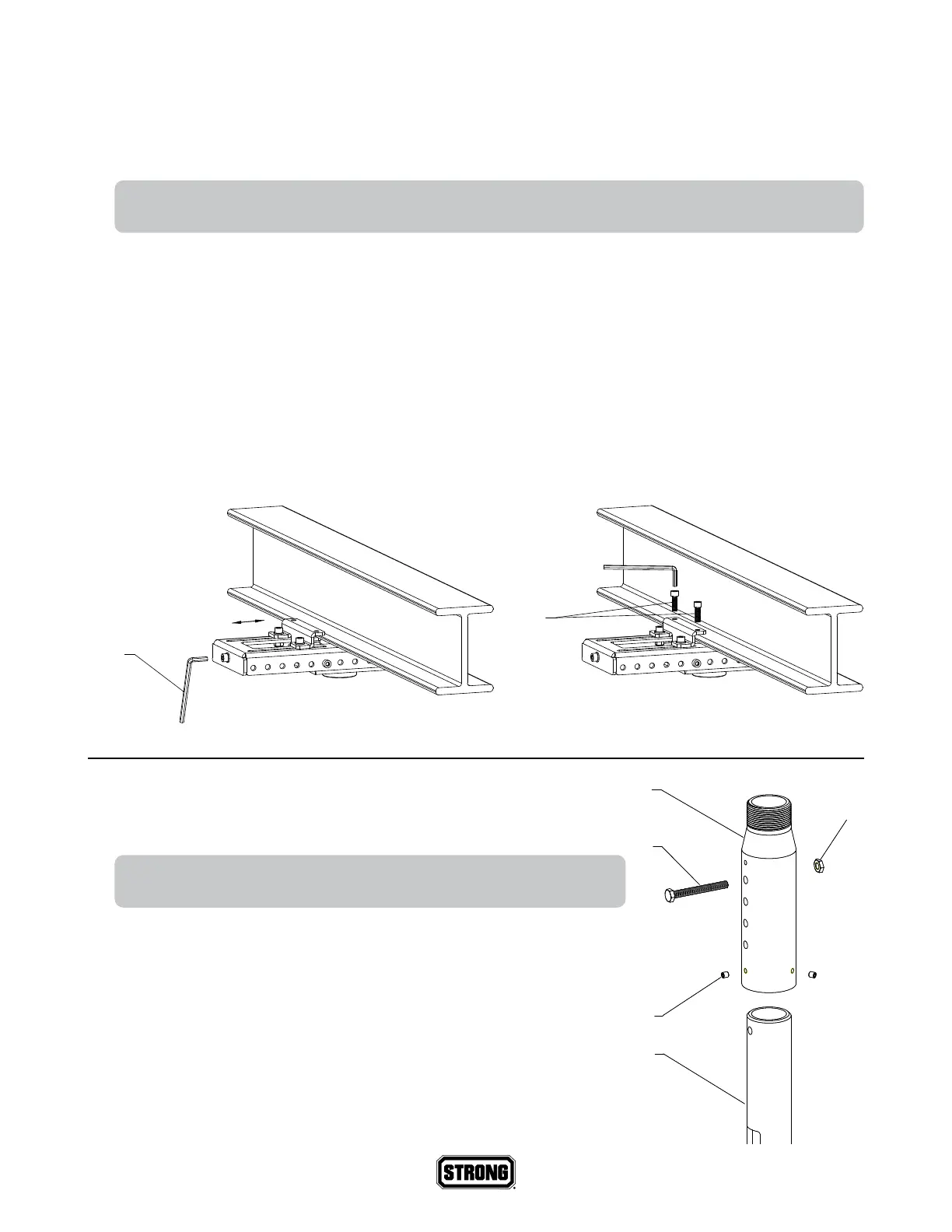

Use a hex wrench to loosen the flanges on the I-beam bracket
.
Slide the flanges apart, place the bracket under the I-beam, and push the flanges together to grip
the I-beam
. Tighten the I-beam flanges
so the bracket grips the I-beam securely. Insert the
locking bolts into the flange and tighten for extra security
.
Attach Drop Poles
If you are using fixed-length poles, skip down to Inserting the Poles.
Warning: Tighten screws only until firmly secured. Overtightening
can damage the screws, greatly reducing their strength.
Set Adjustable Pole Length
Adjustable poles range from 9–12" in 1-inch increments, up to 34–48"
in 2-inch increments. Ensure you use the same length for all poles for
each mounting system.
Slide the inner pole sleeve
into the outer pole sleeve
. Line up
the holes at your desired length.
Insert the bolt
all the way through the aligned holes, and secure it
with the locking nut
.
4
3
2
5
1
1
3
2
4
3
2
5
1
To Next Page
