TECHNICAL PASSPORT INSTALLATION AND MAINTENANCE INSTRUCTIONS

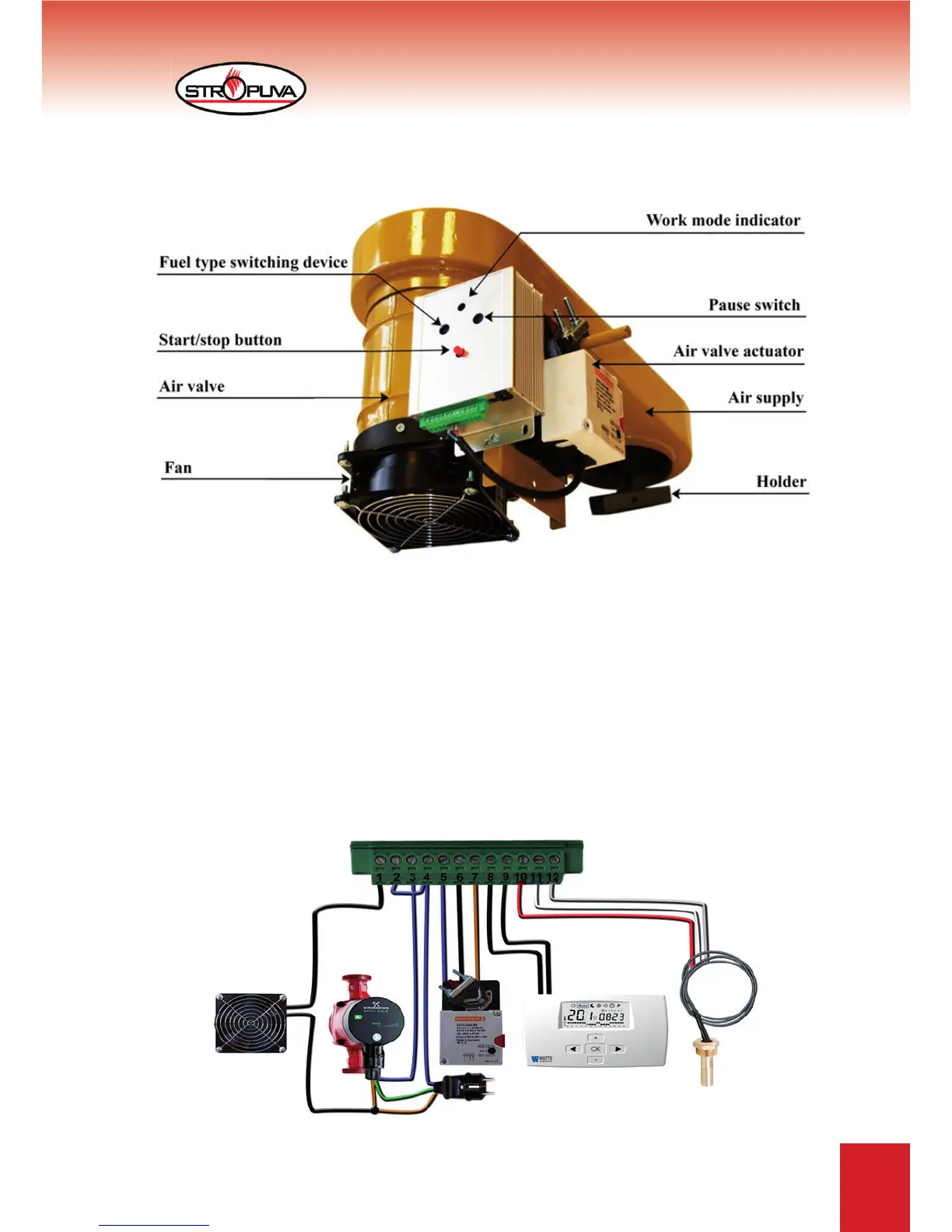

Switch of fuel type:
0 – fi rewood
1 – coal
2 – peat briquettes
3 – sawdust briquettes
4 – sawdust pellets
Work mode indicator:
Blue light – stop mode
Blue blinking – burning out of ember
Red light – primary cleaning
Red blinking – pause
Green light – ventilation before pause
Green blinking – blowing at ember
Red/green/blue – main control
Blue/red – no electricity
Red/green – 6 h pause
Blue/green – sensor malfunction
Pause switch:
0 – 10 min
1 – 30 min
2 – 60 min
3 – 90 min
4 – 120 min
5 – 180 min
6 – 240 min
7 – 300 min
Connection scheme
Figure 14
Figure 15
