6.2.3.2 Typical Settings Dialog Areas
Back Close
Accessories
Filters
Fluid Suction HEPA Filter
Time remaining (out of 500)
497 hours
Smoke Evacuation ULPA Filter
Time remaining (out of 80)
80 hours
Manifolds
Reset
hours
Reset
hours
D
E
C
B
A

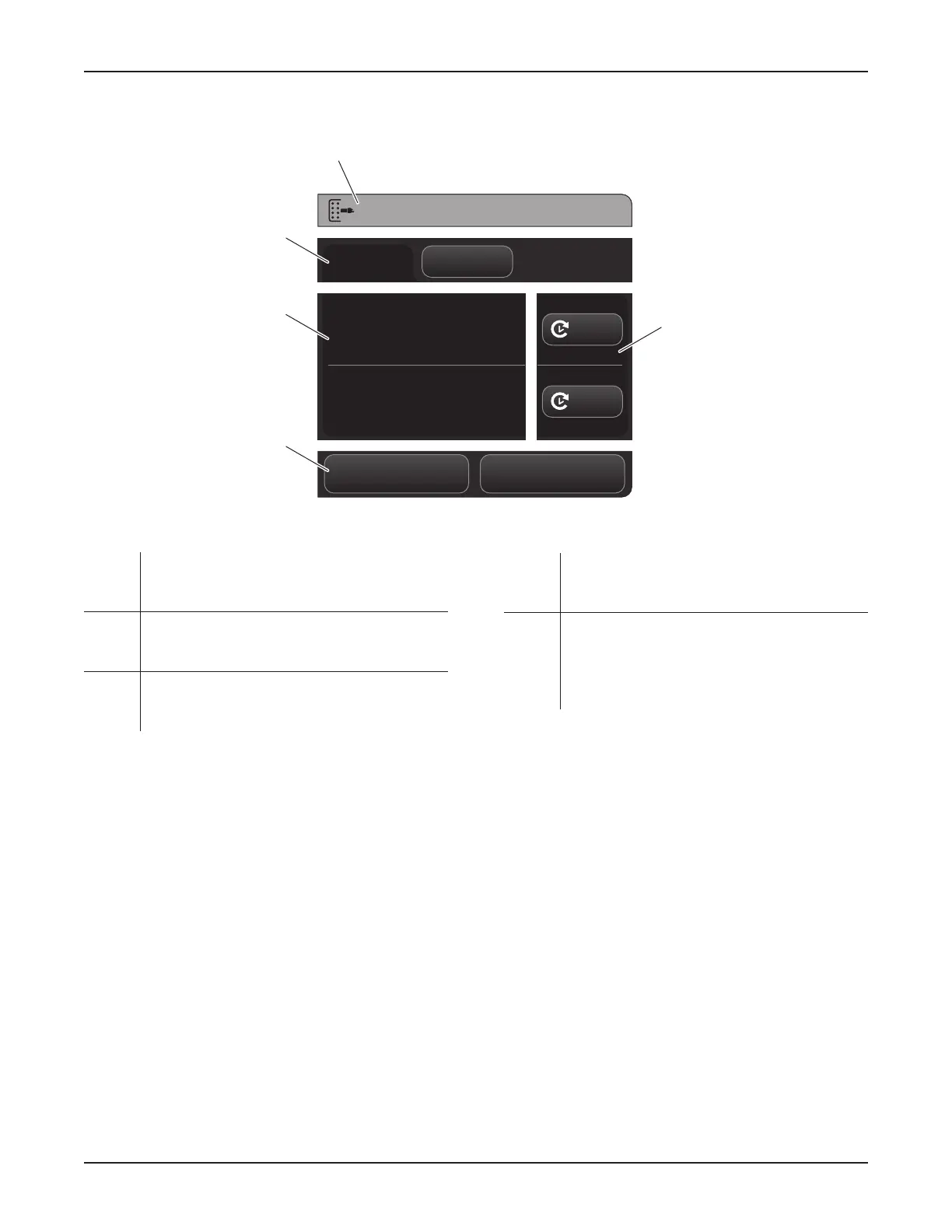

Figure 14 – Accessories Dialog
A Navigation Area – Provides buttons used to
return to the SETTINGS dialog menu or control
screen.
B Options Area – Provides options that may be
adjusted, as well as default settings information
or life-cycle use information.
C Tab Selection Area – Provides selection tabs,
including FILTERS, MANIFOLDS, SOUNDS,
DISPLAYS, and LIGHTS.
D Title Area – Indicates the name of the settings
dialog, including DOCKING, ACCESSORIES,
and PREFERENCES.
E Option Adjustment Area(s) – Provides buttons
used to adjust sound or brightness, reset
hours, or select default settings. Also displays
the number of manifolds used within the last
30 days and 90 days.
0000160552, Rev. C Effective Date: Nov 25, 2015 1:43:15 PM
Print Date: Nov 25, 2015 02:19:13 PM
