Stryker 1588 Series User Manual

11.. SSooaakkiinngg CCaapp Protects the cable connector during cleaning,
disinfection, and sterilization
22.. CCaabbllee CCoonnnneeccttoorr Connects the camera head to the camera console
33.. CCaammeerraa CCaabbllee The camera cable length is 10 feet (3.05 m)
44.. CCaammeerraa HHeeaadd Produces photographic and video images, provides
camera controls, and connects with a focusing coupler.

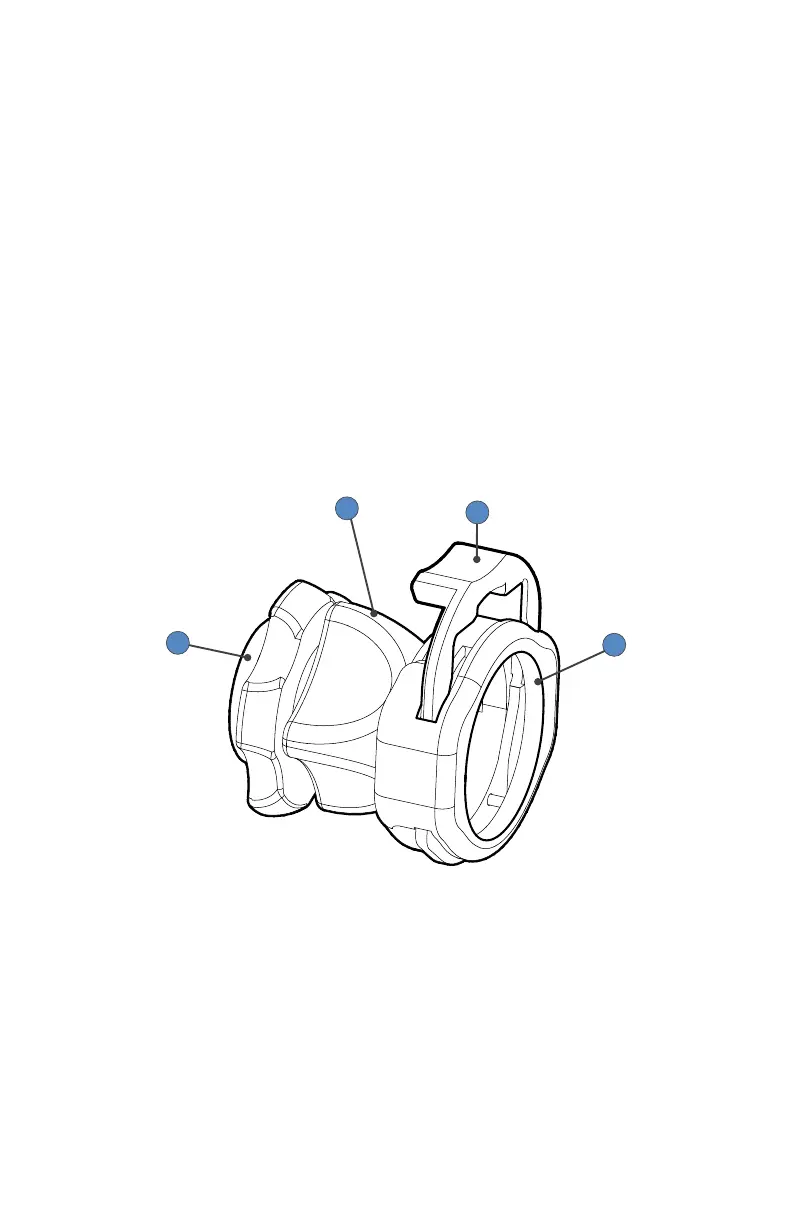

TThhee CC--MMoouunntt CCoouupplleerr
The coupler threads onto the face of the camera head, enabling a scope to be attached to the
camera. It provides a focusing ring to adjust image sharpness.
It is recommended to use the camera with the AIM Coupler (1588-020-122). The AIM Coupler
enables use of ENV mode when the camera is connected to the L10 LED Light Source with AIM
Technology. Refer to Stryker user manual P30104 for complete AIM Coupler instructions.
1
2
3
4
11.. RReeaarr AAddaapptteerr Threads onto the camera head
22.. FFooccuussiinngg RRiinngg Adjusts the coupler focus
33.. EEnnddoobbooddyy CCllaammpp Secures the scope to the coupler
44.. SSccooppee EEnndd Receives the endoscope
EN 10 P29924F

Stryker 1588 Series Specifications

General

Camera Type	Endoscopic Camera
Light Source	LED
Category	Medical Equipment
Image Sensor	CMOS
Video Output	HD-SDI, DVI, HDMI
Resolution	1920 x 1080 (HD)
