To Operate the Handpiece
WARNINGS:
• Observe and comply with all components limitations. See the
appropriate instruction booklet.
• ALWAYS follow the recommended duty cycle to prevent the
equipment from overheating. See the Specifications section.
NOTE: The handpiece will ONLY operate using a CORE 2 console.
1. Attach the accessory, irrigation tube and suction tube to the
handpiece.

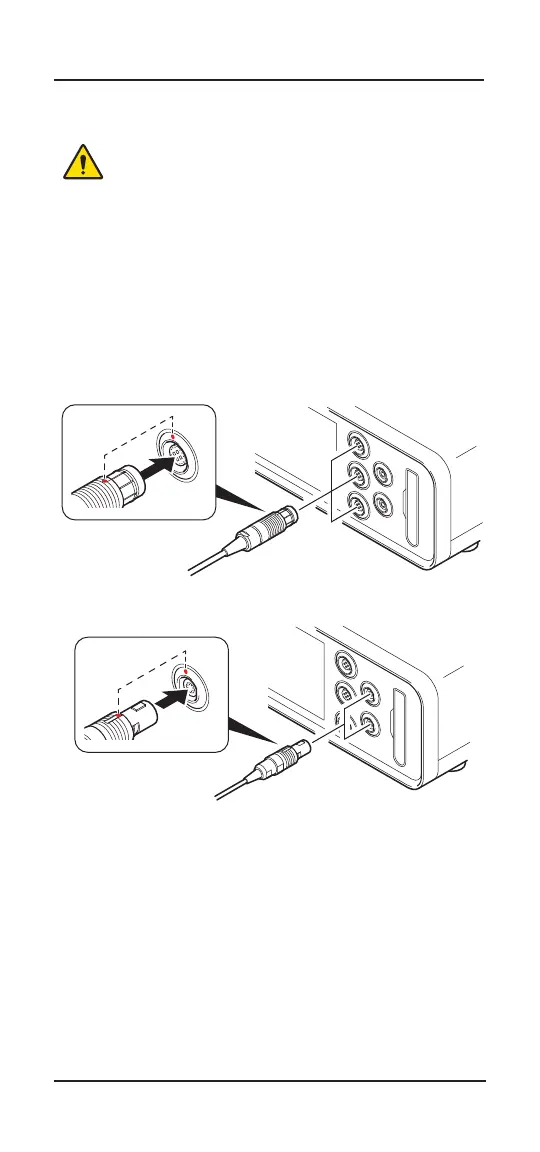

2. Use the cord alignment marks and plug the handpiece cord into
the console handpiece/motor port.
3. Connect the footswitch to the console footswitch port.
4. Adjust the suction pressure to the desired level.
NOTE: When operating a handpiece with a suction source
connected, ensure that the suction is ON using at least 5 InHg
(127 mm Hg) vacuum.
5. Plug the console into an electrical wall outlet and turn the
console ON.
6. Review and acknowledge the console’s initial warning screen
concerning the attachment limitations.
7. Using the console touch screen, set the desired handpiece
speed, mode and irrigation setting.
To Next Page
