(1) Dusting induction is set with a timing alarm that sounds after the powder spreading time
is reached
(2) Heating delay sets the heating delay time when the heating function is in the off position,
time can be extended according to the new set time
(3) Heat temperature of the infrared heating tunnel is set according to the melting
temperature of the adhesive powder
(4) Shaking strength adjusts the shaking strength of the powder removal sequence
(5) Smoke removal adjusts the air purification unit intensity
(6) Preheating temperature of the front heating plate can be set
(7) Take up speed is set when the larger the value the slower the speed
(8) Suction strength is set after entering the printing linkage mode. Click to set the suction
strength of the 2 vacuum cylinders (front and rear)
(9) Mesh belt speed controls the speed of the conveyor belt in which the larger the value the
faster the running speed
5
.0 Operational Procedures
Once the printer has printed enough transfers to cover the front preheating board and the media
extends to the first of two vacuum cylinders (pg. 6) ensure that the PET transfer media is
aligned correctly to inhibit any skew that may be present through the heating tunnel and take-
up reel.

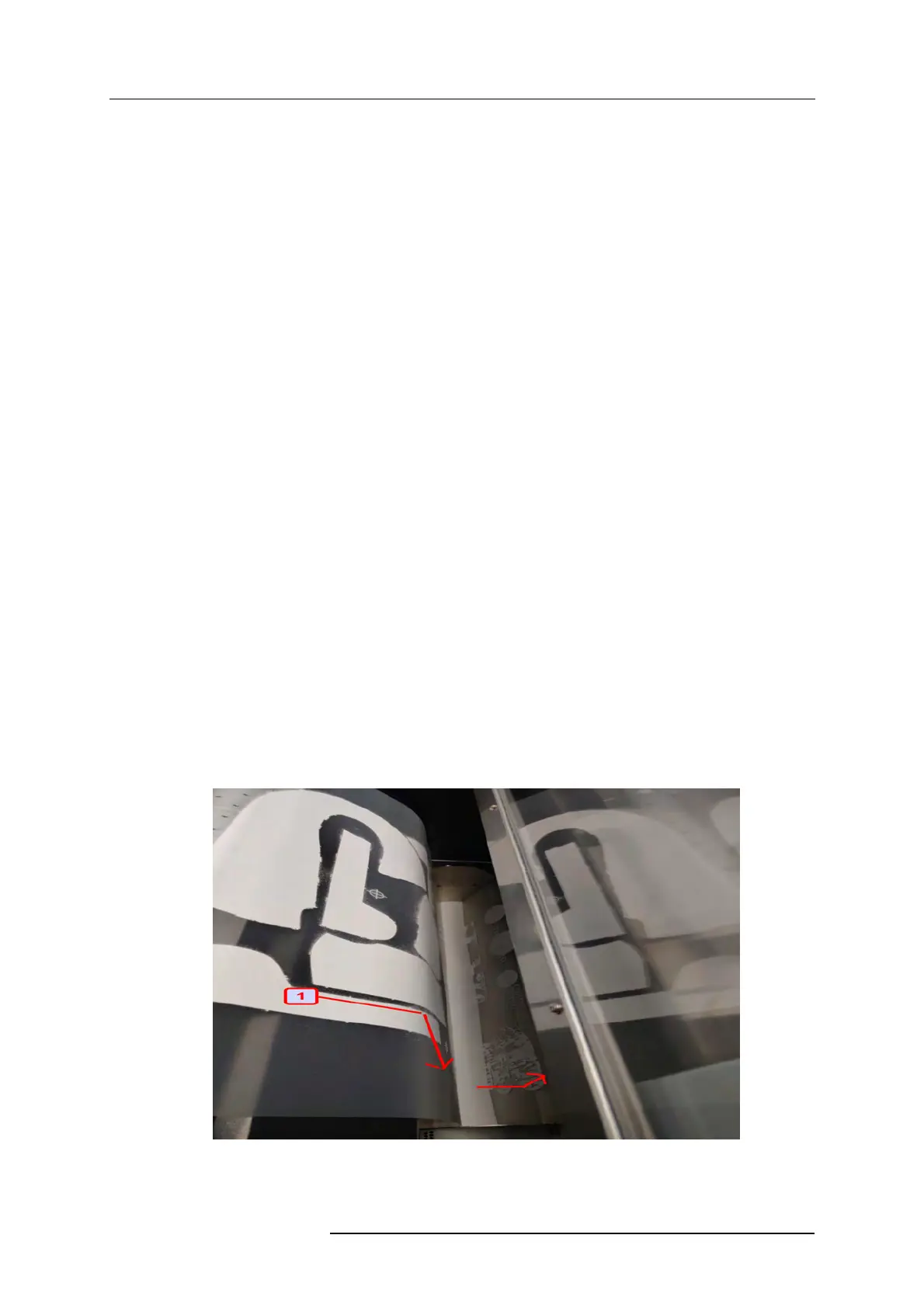

When the media is placed correctly to the first vacuum cylinder the shaker suction system
should be in the on position. From this point the media will now be controlled by both the
vacuum and mesh belt system through the heating tunnel (pg. 7). It is important to note that
when placing the media under the powder hopper for the first time that enough slack is
provided to allow powder to fill at the bottom and then be shaken off as the the media moves
back up through the belt system (below).
