STS 1600 - Electrical System Details; Terminal 1 (T1) Connections

Rev. 2.0
Electrical
12

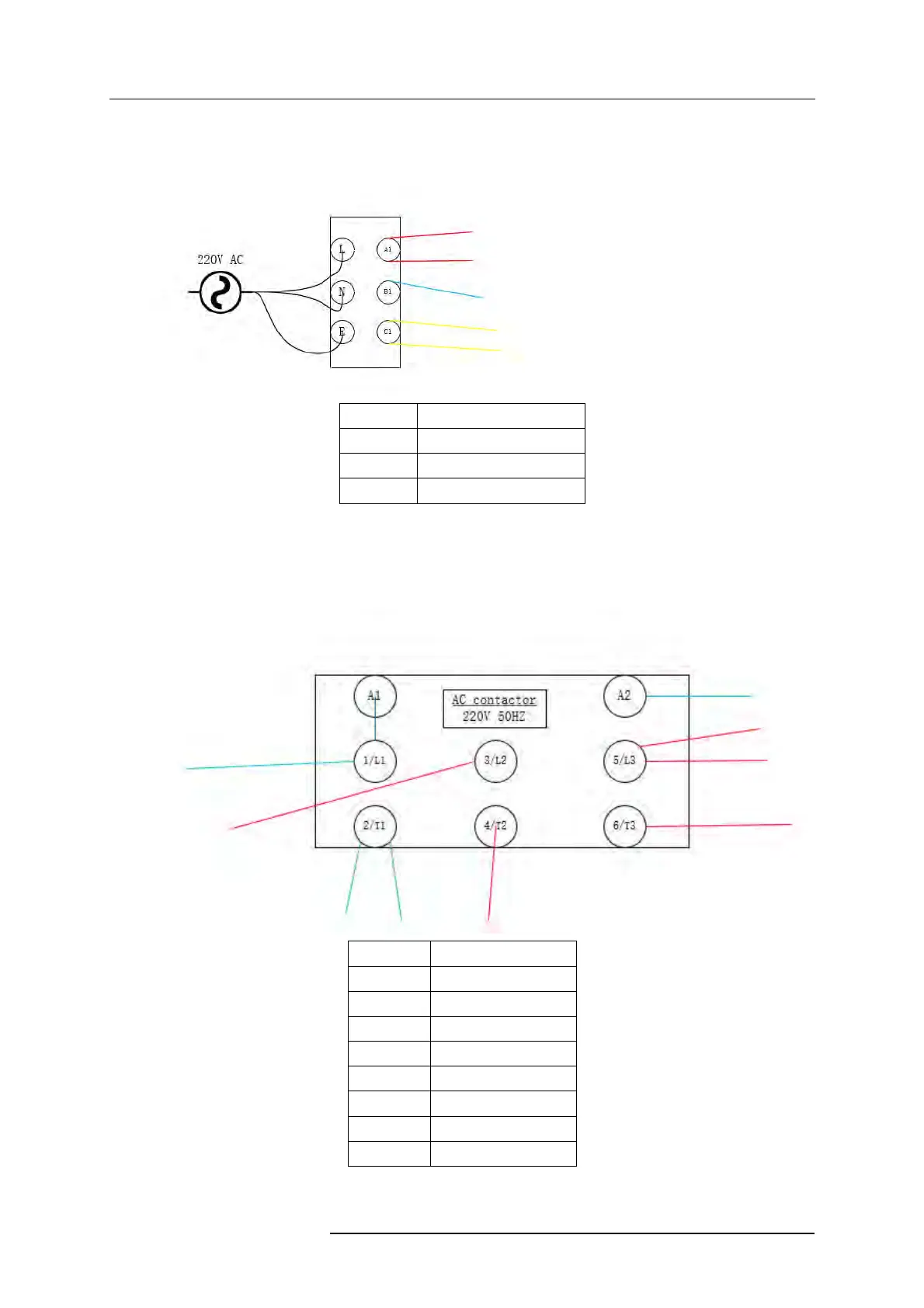

Terminal1（T1）
Number Connect Location
T1-A1 C1-3/L2, C1-5/L3
T1-B1 C1-L1
T1-C1 T2-E1
AC contactor（C1）
Number Connect Location
C1-A1 C1-1/L1
C1-1/L1 T1-B1
C1-2/T1 T2-I1,T2-J1
C1-3/L2 T1-A1
C1-4/T2 T2-K1
C1-A2 T4-J1
C1-5/L3 T1-A1,T4-I1
C1-6/T3 T2-L1
