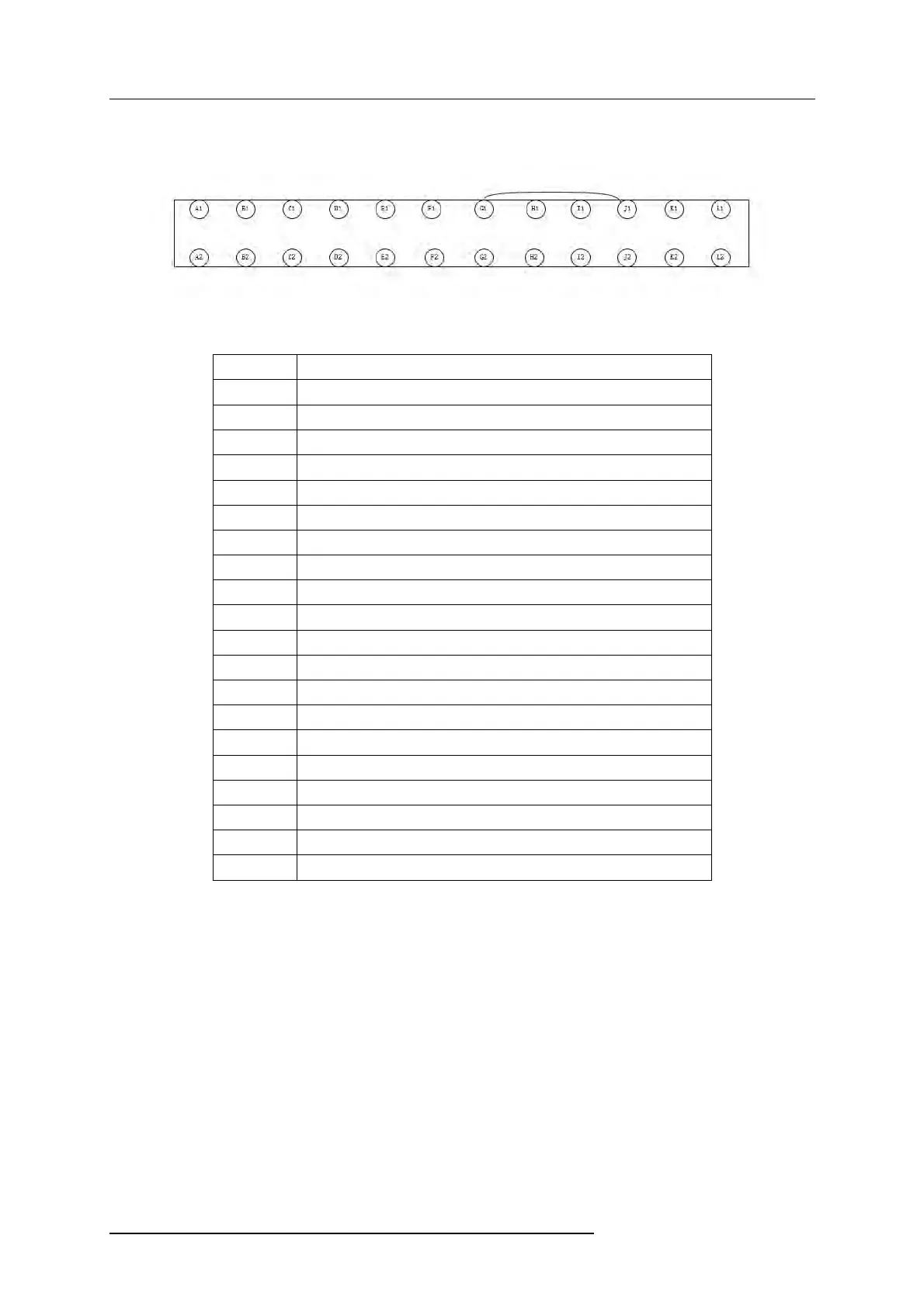

Terminal2（T2）
Number Connect Location
T2-E1 T1-C1,T1-C1
T2-F1 Y12-2
T2-G1 T2-J1
T2-H1 DA-Y10-2
T2-I1 C1-2/T1
T2-J1 C1-2/T1,T2-G1
T2-K1 C1-4/T2
T2-L1 C1-6/T3
T2-A2 Paper sensor,PLC-X03
T2-B2 Paper sensor,P1-V+1
T2-C2 Paper sensor,Blower connector1,Blower connector2,P1-G3
T2-D2 Blower connector1,Blower connector2,Y10-2
T2-E2
P1-FG,P2-FG,Blower Earth，Paper roller Earth
T2-I2 Quick Connector ,T3-B2,P2-IN
T2-J2 T3-A2,T4-L1,P1-IN
T2-K2 P2-AC,Y16-1,Y6-2
T2-L2 Y14-2,Y17-1,P1-A2
T2-F2 Paper roller Live Wire
T2-G2
Paper roller Naught Wire，Blower Naught Wire
T2-H2 Blower Live Wire
