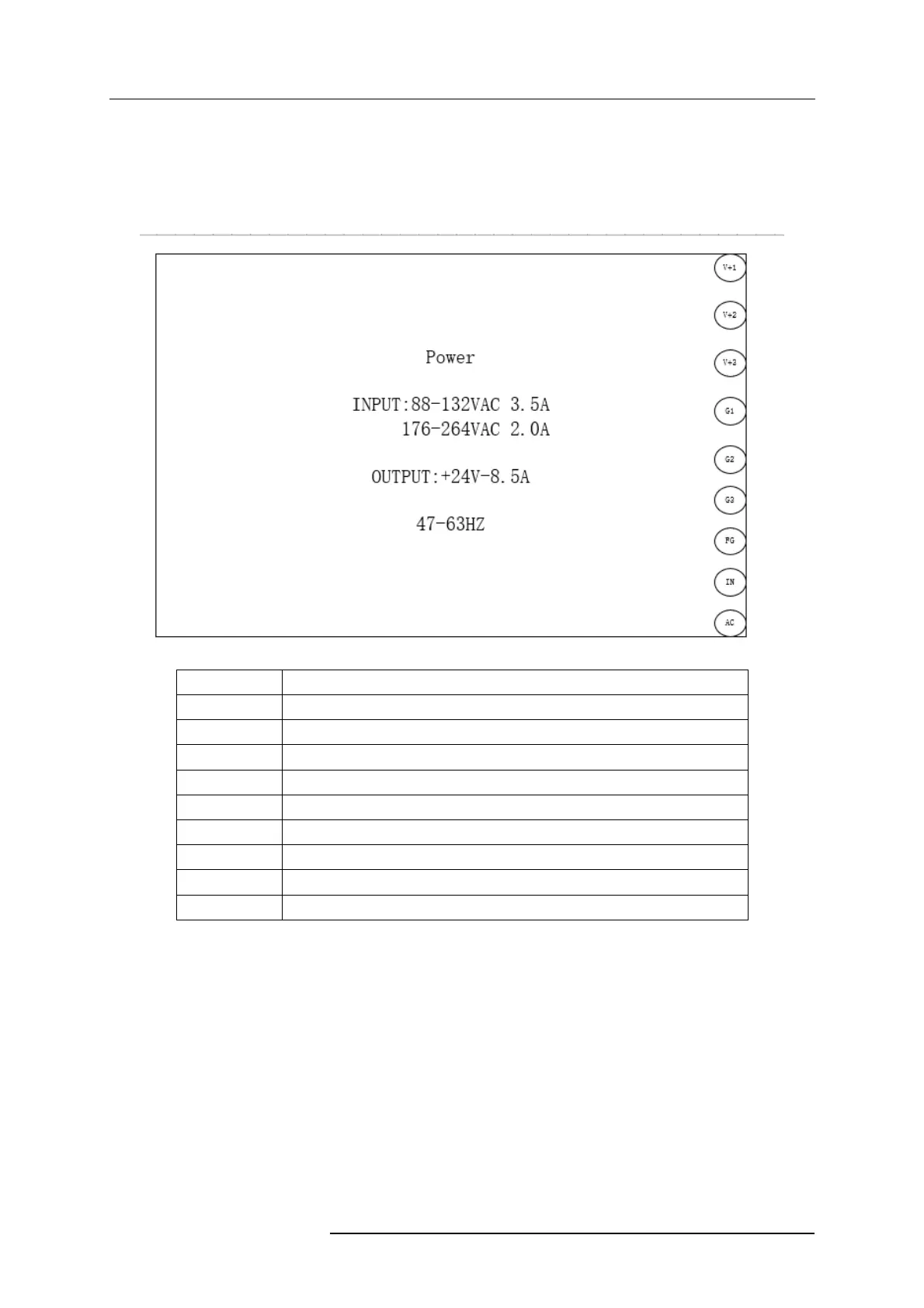

STS 1600 - Power Supply P1

Rev. 2.0
14
Power(P1)
Number Connect Location
P1-AC Y12-1,T2-J2
P1-IN T2-J2
P1-FG P1-FG
P1-G3
T2-C2，Suction connector
P1-G2
PLC-COM,T4-E1,PLC-COM6，PLC-COM4
P1-G1
T3-C2，PLC-0V
P1-V+3 T3-D2,PLC-24V
P1-V+2 Y6-3,Y12-3,Y10-1,Y7-1
P1-V+1 T2-B2,T4-D1
