VACUUM PUMP RE3022C
Instructions for use
To get the best performance from the equipment
and for your own safety, please read these
instructions carefully before use.
If the equipment is not used in the manner
described in this manual the protection provided
may be impaired.
This Stuart vacuum pump is designed to operate
under the following conditions:-
❖ For indoor use only
❖ Use in a well ventilated area
❖ Ambient temperature range +5°C to +40°C
❖ Altitude to 2000m
❖ Relative humidity not exceeding 80%
❖ Mains supply fluctuations not exceeding 10%
of nominal
❖ Overvoltage category II IEC664
❖ Pollution degree 2 IEC 60364-4-443
❖ Use with a minimum distance all round of
200mm from walls or other items
Electrical installation
THIS EQUIPMENT MUST BE EARTHED
Before connection please read and
understand this manual and ensure that
the line supply is suitable. This pump
requires a supply rated at 230V, 50Hz,
single phase, ~.
Power consumption is 150W.
The unit is supplied with two mains leads fitted
with IEC plugs for connection to the instrument.
One has a U.K. 3 pin plug and the other has a 2
pin “Schuko” plug for connection to the mains.
Choose the lead appropriate for your electrical
installation and discard the other.
Should neither lead be suitable, take the lead
with the UK plug and replace the plug with a
suitable alternative. This involves cutting off the
moulded plug, preparing the cable and
connecting to the rewireable plug in accordance
with its instructions.
The wires in the mains cable are coloured as
follows:
BROWN - LIVE
BLUE - NEUTRAL
GREEN/YELLOW - EARTH
English

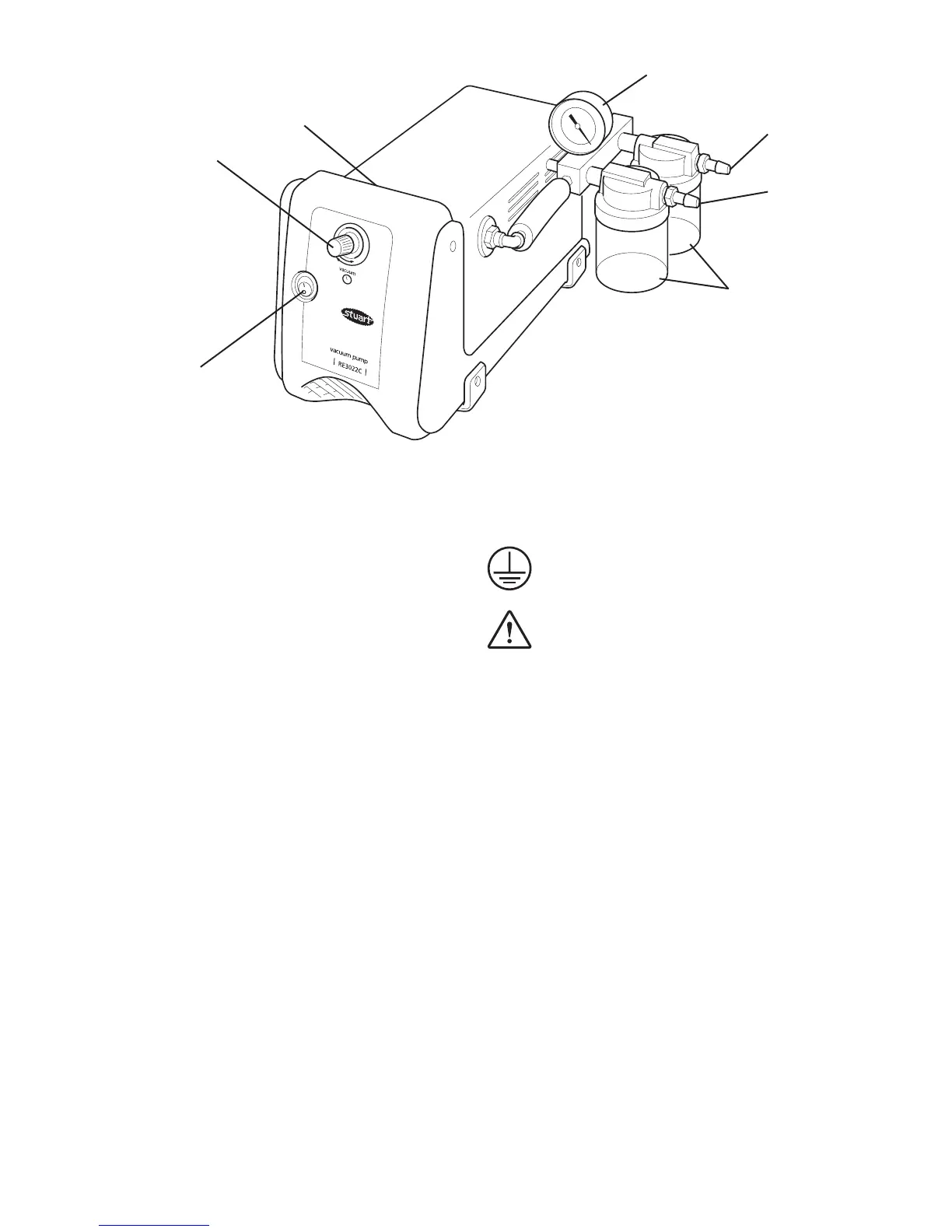

Vacuum gauge
Vacuum control
Carry handle
Power switch
Outlet
Catch pots
Figure 1
Inlet
