User manual COMPACT V2.0 E 9
3.3.2 Protection cover for the terminals
connections
The protection is available in option (Order ref.
CFC-01) and avoid to do wrong hazardous
connection on the terminals 230Vac. It mounted
with strain relief clamps for the cable.

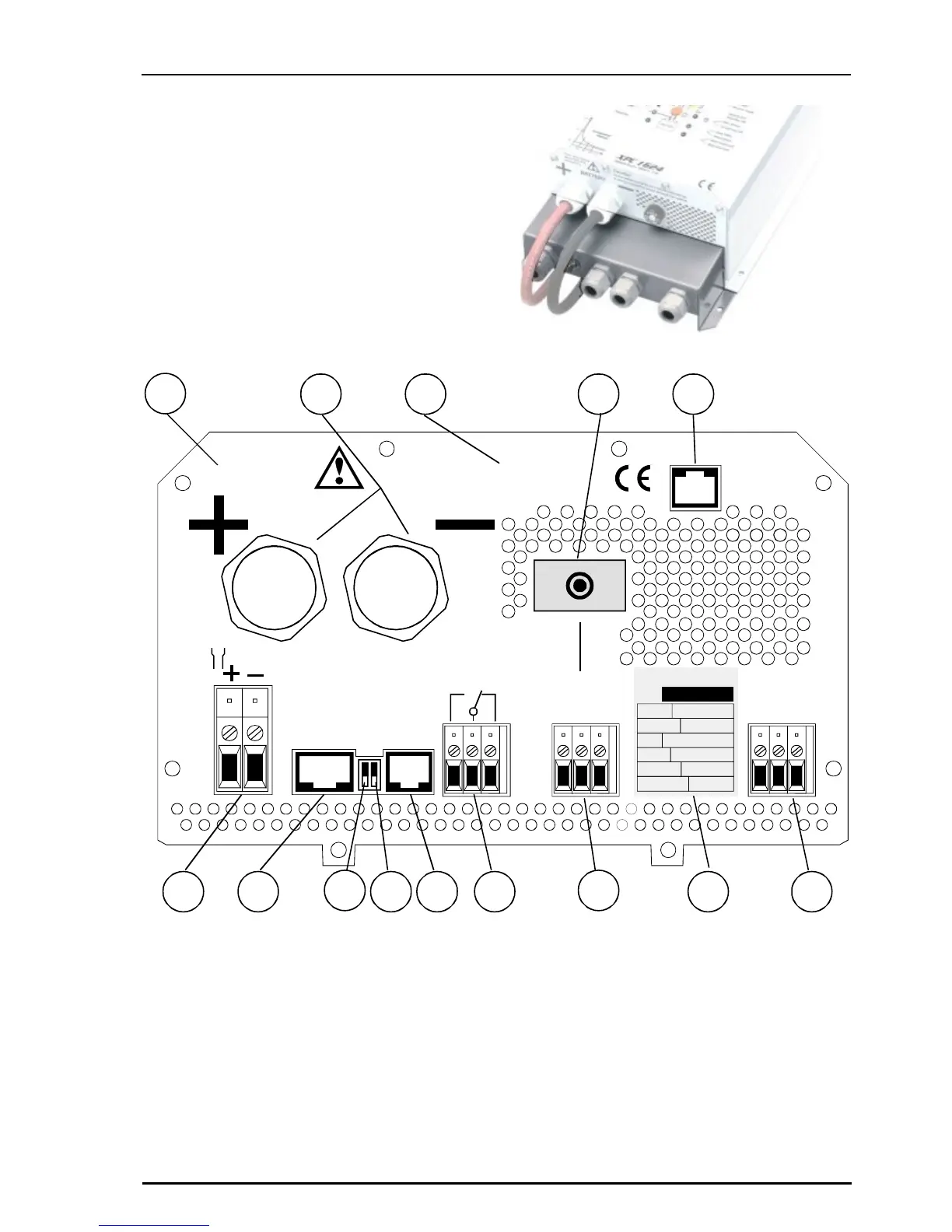

3.4 Connecting Plan / Front side
.
Caution: Check battery
polarity (+/-) before connecting!
A wrong connection could
damage the system.
16A-250Vac
BATTERY
SOLAR
Remote
control
Temp.
Don't open before
disconnect line
and battery
N
AC Input
AC Output
L
Equalize Transfer delay
Auxiliary Contact
PE
N
L PE
Remote
Power
sharing
C-2324
Ubat:
Pnom: 2300 VA
Uin: 150 - 250 Vac
N°:
Uout: 230 V/50 Hz
Typ:
22-32 Vdc
I Solar:
I Charge: 70A
30A max.
OM AL
B
C
D
EF G
HJ
K
N
A Battery +/- Battery cable (already installed)
B SOLAR +/- Connecting terminal for Solar modules
C Remote contr. Connecting terminal for Remote Control RCC-01
D Equalize Slide switch for equalization of the Battery
E Transfer delay Slide switch for Transfer Delay
F Temp. Connecting terminal for Temperature sensor CT-35
G Aux. Contact Connecting terminal for Auxiliary Contact
H AC Input Connecting terminal for AC-input. Located directly above this
terminal is the automatic safety cut-out for this terminal.
J ID Plate Identification plate with Technical data and Serial number
