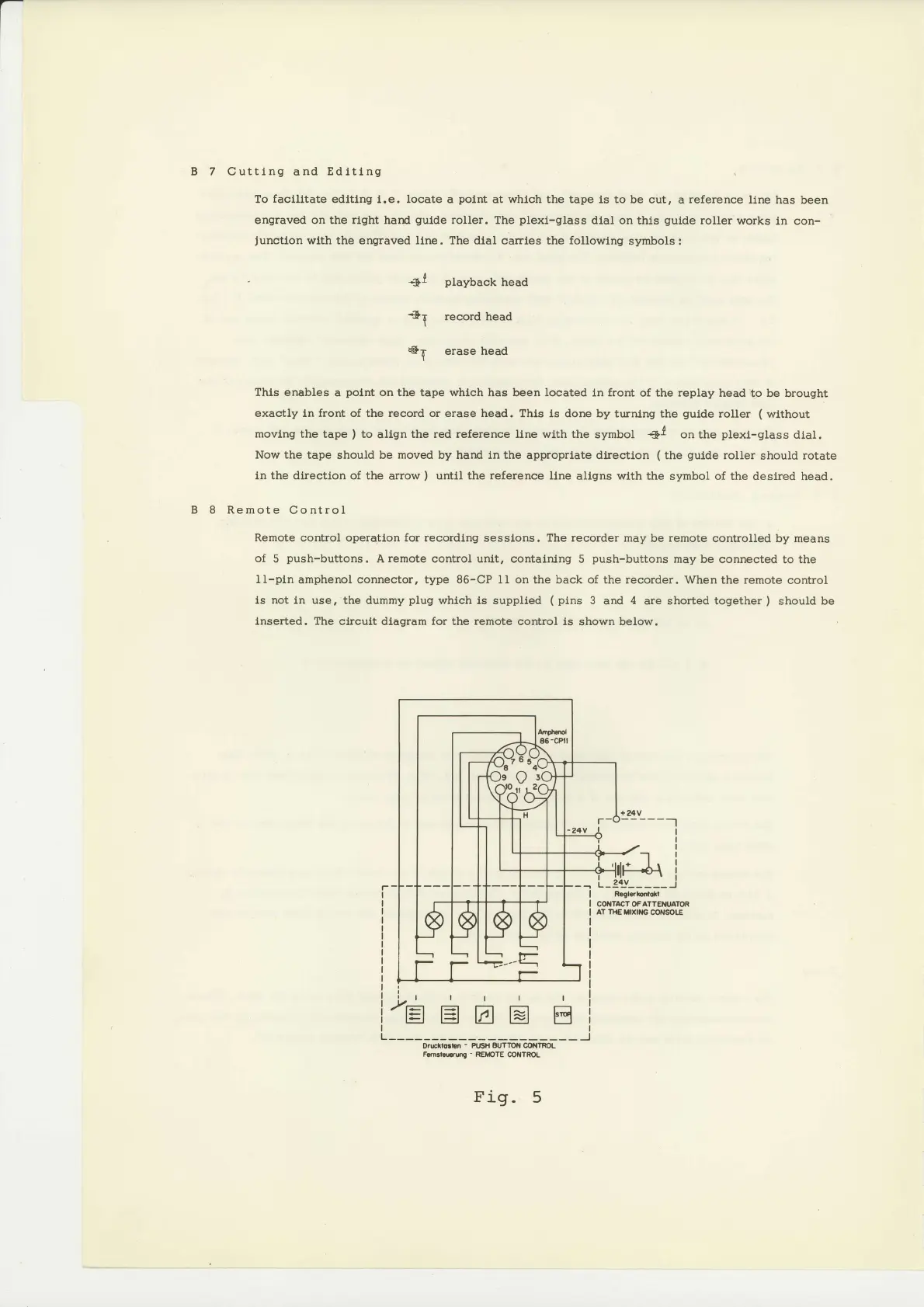

Studer J37 - Page 15

B 7 Cuttlng and
Edittng
To
facllltate
edltlng l.e. locate a
polnt
at
whlch the tape
ls to be cut,
a
reference line
has been
engraved on the rlght hard
gulde
roller. The
plexl-glass
dlal on this
gutde
roller
works in con-
Junctlon
wtth the engraved llne. The dlal carrles the followtng
symbols:
^4
tr
playback
head
+T
record head
+T
erase head
This
enables
a
polnt
on
the tape
whlch
has been located ln front
of the replay head to
be brought
exactly ln front of the record or erase head.
Thls ls done by turnlng the
gulde
roller
(
wtthour
movtng
the tape
)
to
allgn
the red reference llne wtth the
symbol
-41
on the
plexl-glas
s dlal.
Now the
tape should be moved by harri ln the
approprtate dtrectlon
(
the
gulde
roller
should
rotate
ln the dlrectlon of the
arrow
)
until
the reference
llne allgns wtth the
symbol of the deslred head.
B I Remote
Control
Remote control operatlon for recording
sesslons.
The recorder
may be remote
controlled by means
of
5
push-buttons.
Aremotecontrolunlt, containlng
5
push-buttonsmaybeconnectedtothe
ll-pln
amphenol connector, type 86-CP ll on the back of the recorder.
When the remote
control
is not ln use,
the dummy
plug
whlch ls supplled
( pins
3
and
4
are shorted together
)
should be
inserted. The
circult dlagram for the remote control is
shown below.
L-3i"----:i
R.glf,loddd
COI{TTCT
OF
ATTAIJATOR
lT 11€
rtxtl{G
co|tsotE
tvt
|
|
t
I
'a
tra tr
E
J
L_________
D.{rd(tdrin
-
alsx wrrot ofrfrx-
- -
Fotlrsrroe
-
REI0TE
@ilTROL
Fig.
5
