STUDIO DUE CS-4 - Mechanical Lock; Mechanical Lock Operation; Fixing Bracket Options

11
FIXING BRACKET
STANDARD FIXED WITH BOLTS
OPTIONAL FIXED WITH FAST LOCK
IMPORTANT! BEFORE TO MOVE THE LOCK KEY, BE SURE TO HAVE POSITIONED THE FIXTURE IN THE RIGHT WAY, AS SHOWN
IN THE DRAWING.
IMPORTANTE! POSIZIONARE LE PARTI MOBILI COME DA DISEGNO PRIMA DI INSERIRE IL BLOCCO MECCANICO.

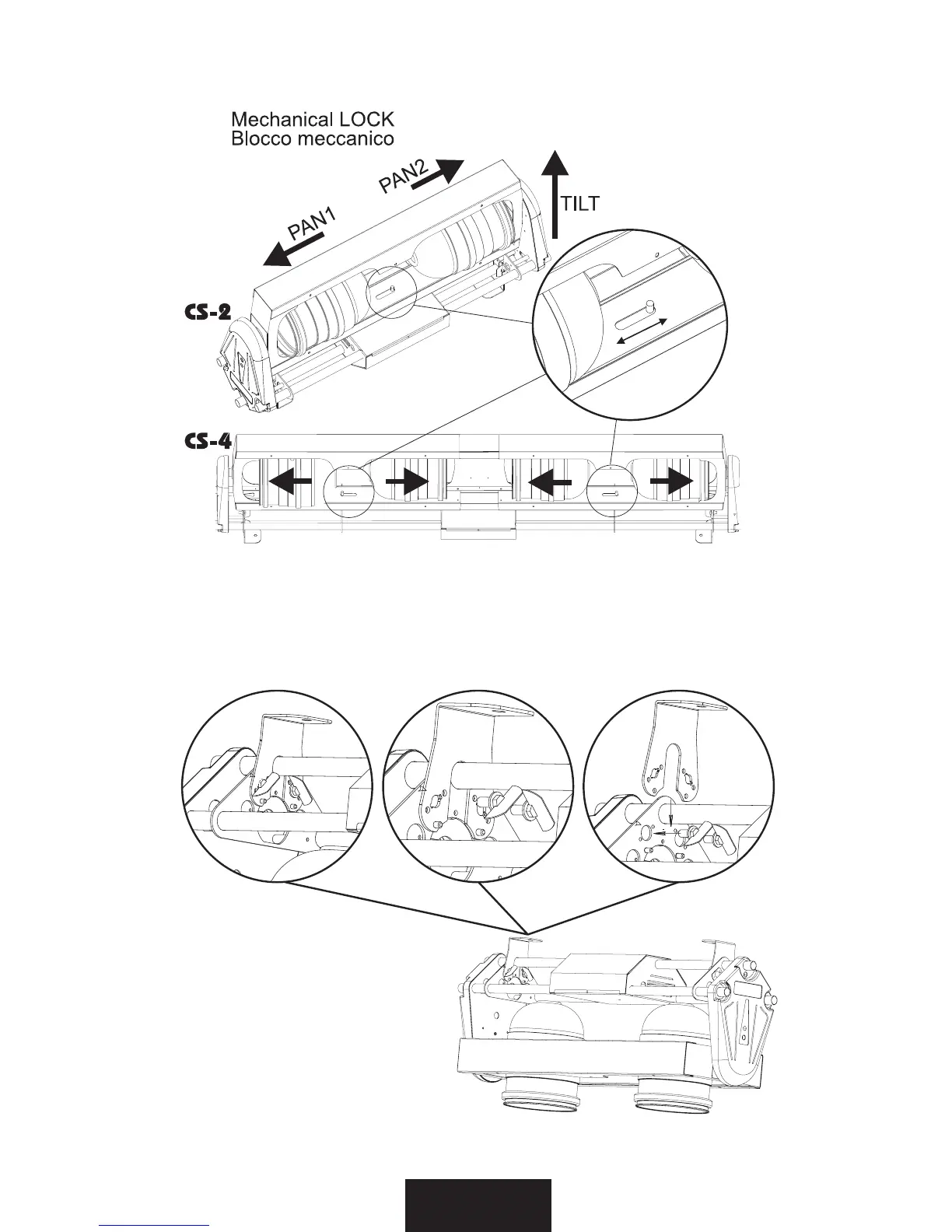

MECHANICAL LOCK / BLOCCO MECCANICO
THE FIXING BRACKET / STAFFE DI FISSAGGIO
